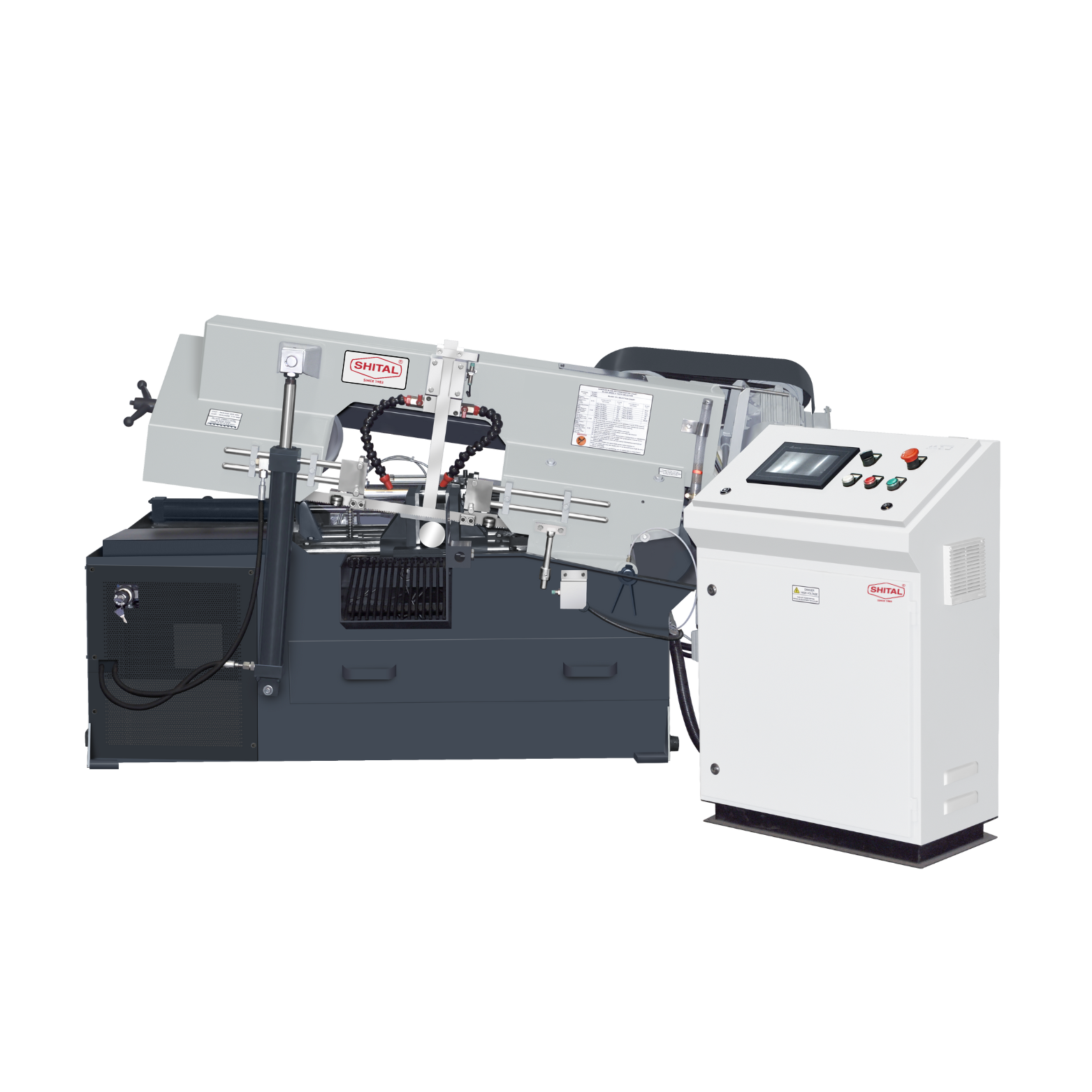

Hinge Type Fully Automatic Bandsaw
A Hinge Type Fully Automatic Bandsaw is a precision cutting machine designed for high-efficiency metal cutting operations
- High Productivity with low rate saves your idle time.
- Improved PB2 heavy duty oil field gear box.
- Hard chrome shaft in swiveling arm as well as vice jaw set.
- Single acting hydraulic cylinder for front vice.
- Double acting hydraulic cylinder for rear vice.
- Automatic machine off, in case of running blade stop / breakage.
- Mechanical bundle clamping attachment for more than 1 job to cut.
- Door mounted hydraulic power pack for easy maintenance (without hydraulic oil).
- Infinitely variable feed control valve for setting the cutting rate (Rexroth made).
- Automatic oil lubrication system.
- Automatic work height control & fast approach save idle time.
- PLC control for all electric & hydraulic functions.
- Servo job feeding system for accurate cutting length, set by touch screen.
Specification
| MODEL | SH-1HSA |
| Capacity Round | 200 mm |
| Capacity Square | 175 mm |
| Gearbox | PB2 (Heavy Duty) |
| Blade Dimensions | 3000 x 27 x 0.9 mm |
| Blade Speed meter/min | 20 / 35 / 55 / 75 |
| Drive motor (440V, AC 3 Phase) | 1.5 HP, 1440 RPM |
| Hydraulic drive (440V, AC 3 Phase) | 0.5 HP, 1440 RPM |
| Coolant Pump (440V, AC 3 Phase) | 0.15 HP, 440 V |
| Job stroke | 330 mm |
| Bundle cutting Capacity (Manual) | 175 x 80 mm |
| Hydraulic Tank | 35 Liters |
| Coolant Tank | 50 Liters |
| Dimensions (L x W x H) | 1830 x 1425 x 1000 mm |
| Weight | 530 Kg |
| Feeding Function | Servo Feeding |
Accessories
Standard Accessories
- 2 pieces, 1 meter job roller stand.
Optional Accessories
- Chip removing wire brush.
- Infinitely variable speed control by A.C. Frequency drive.
- Job roller stand.
- Bi-metal bandsaw blade.
