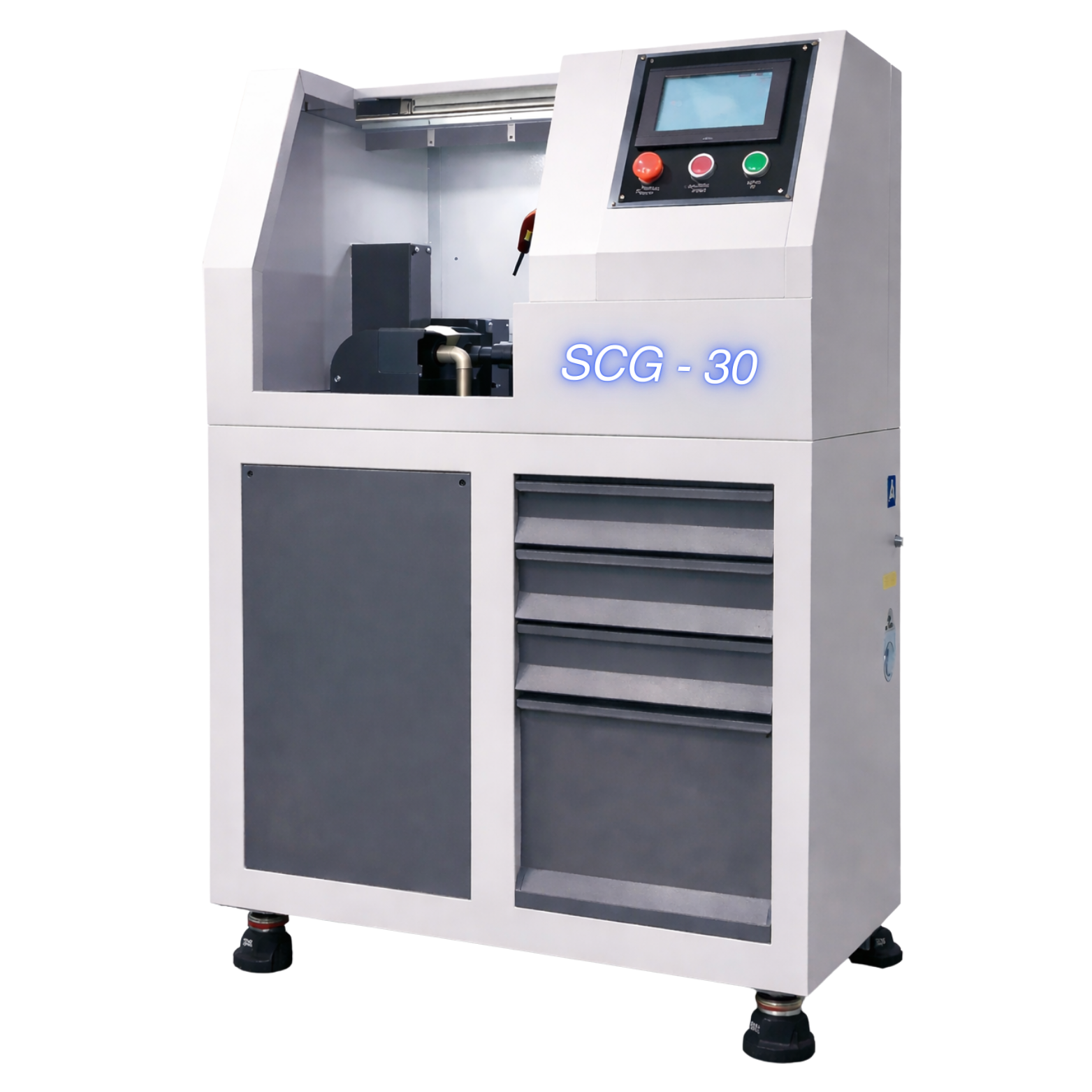

CNC Tool Grinder SCG-30

This machine is designed for high precision and provides greater efficiency using 3D probe.

  • SCG-30 is powered by 5 servo motors, Servo motors provide higher precision, smoother motion, faster response and better long-term stability than stepper motors.
  • It Supports 5 & 6 Flute Tools with minimum 3mm Capacity.
  • 3D Tool setter is used which improves grinding precision, reduces setup time and ensures consistent tool quality.
  • With a robust 2600W Power output and a weight of 200Kg, it ensures stability and efficiency even for bigger bits.

Specification

Model
SCG-30
Total Servo Motors
5
Capacity
3 – 20 mm
Supply Voltage
220V/50Hz
Total Power
2.6 Kw
Spindle Speed
3000 Rpm
Tool Setting Probe
3D (0.005 mm Accuracy)
Max Length of Tool
Unlimited
Collets
ER32
Machine Weight
200 kg

Accessories

Standard Accessories
  • ER-32 MM Collets
  • Power Cable
  • Spanner
  • Coolant Pump
Optional Accessories
  • ER-32 MM Collets (Odd Size)
  • Servo Stabilizer
  • HSS Grinding Wheel
