Pitch Control Tapping
Equipped with advanced pitch control, it delivers smooth, accurate, and efficient tapping performance.

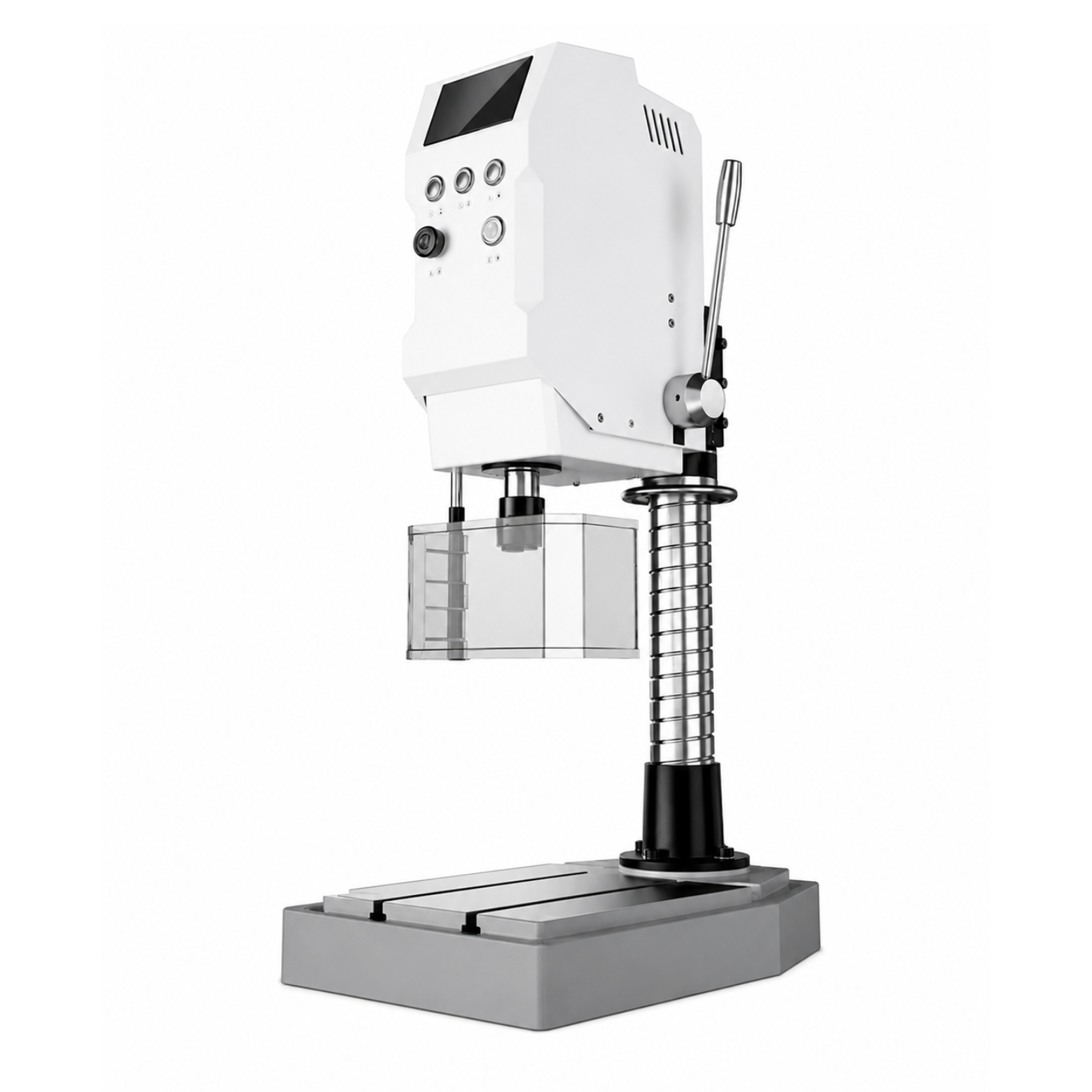

- This touch-screen pitch control tapping machine is designed for high-precision threading applications with intelligent servo-controlled tapping technology.
- Equipped with advanced pitch control, automatic depth adjustment, and stepless speed variation, it delivers smooth, accurate, and efficient tapping performance for industrial production environments.
- Its rigid structure, user-friendly touch screen operation, and high-speed repeated positioning ensure excellent stability, productivity, and long service life.
Specification
|
MODEL |
20S |
|
Tapping Capacity |
3 to 20 mm |
|
Drilling Capacity |
6 to 13 mm |
|
Distance from Spindle Center to Column |
220 mm |
|
Distance from Spindle Center to base |
455 mm |
|
Maximum Spindle Travel |
80 mm |
|
Maximum Speed |
625 Rpm |
|
Motor Power |
1200 W / 220 V / 50 Hz |
|
Base Size |
550 x 360 mm |
|
Column Diameter |
70 mm |
|
Overall Height of Machine |
1100 mm |
|
Total Weight (Approx) |
70 Kg |
Accessories
Standard Accessories
- Collets
- Drill chuck
