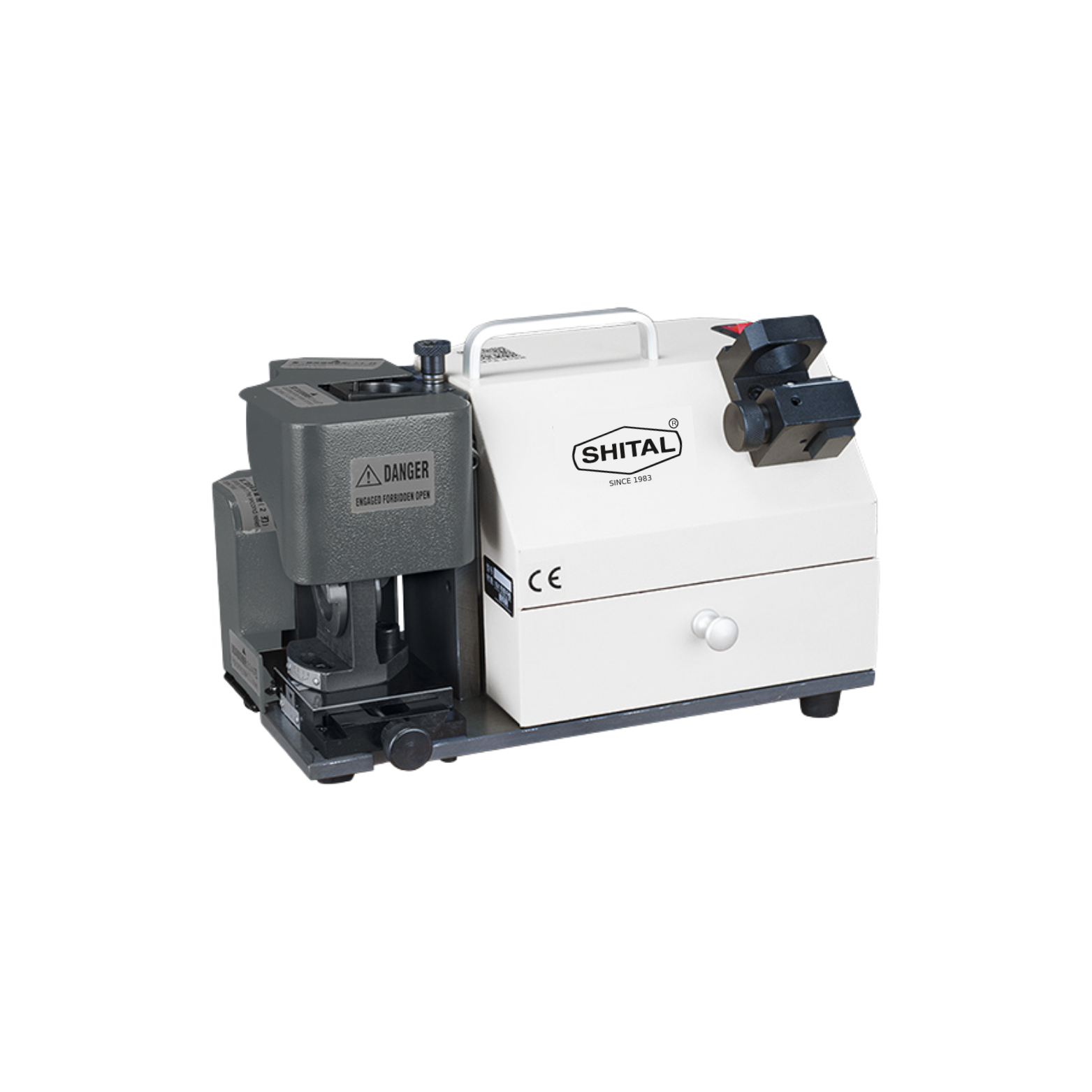

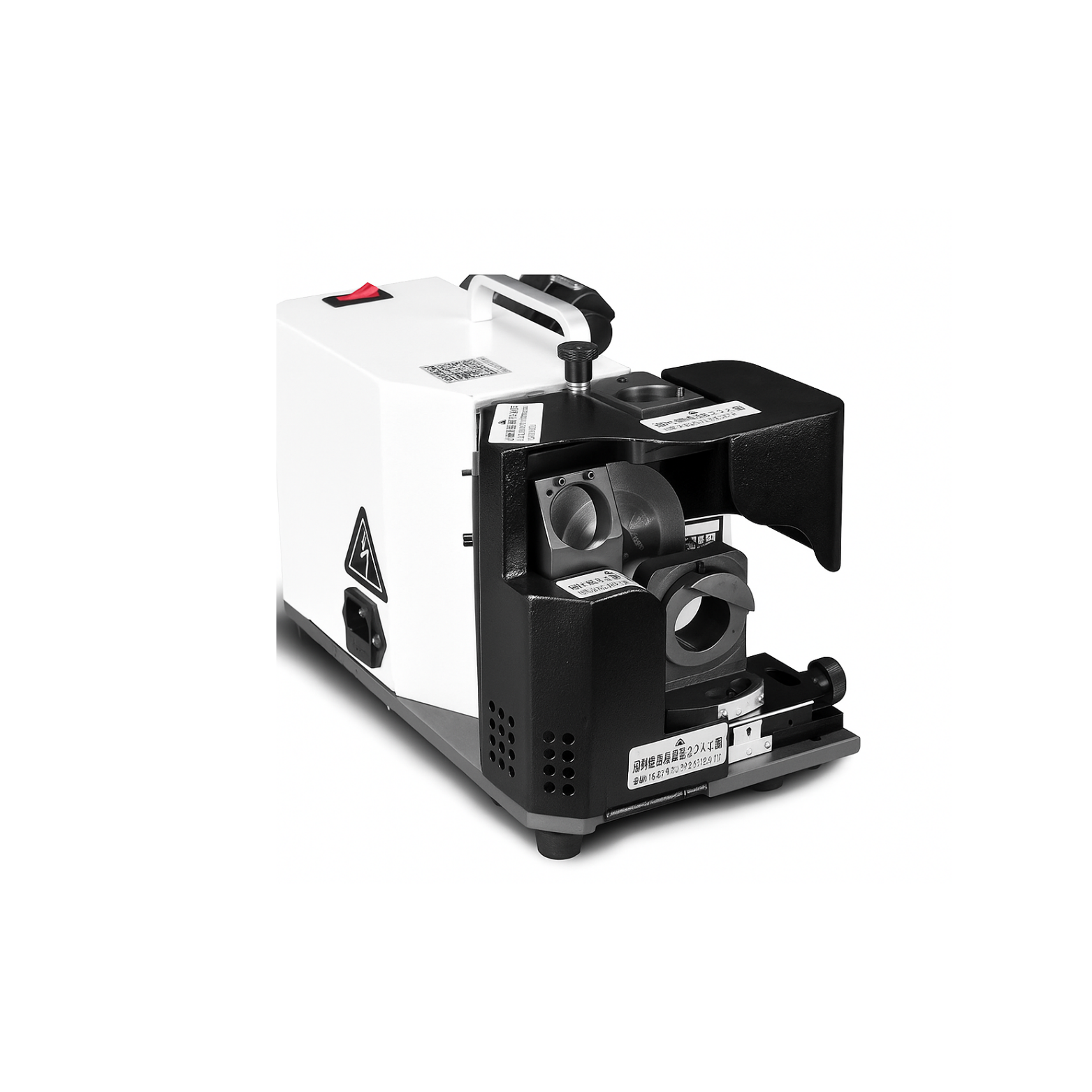

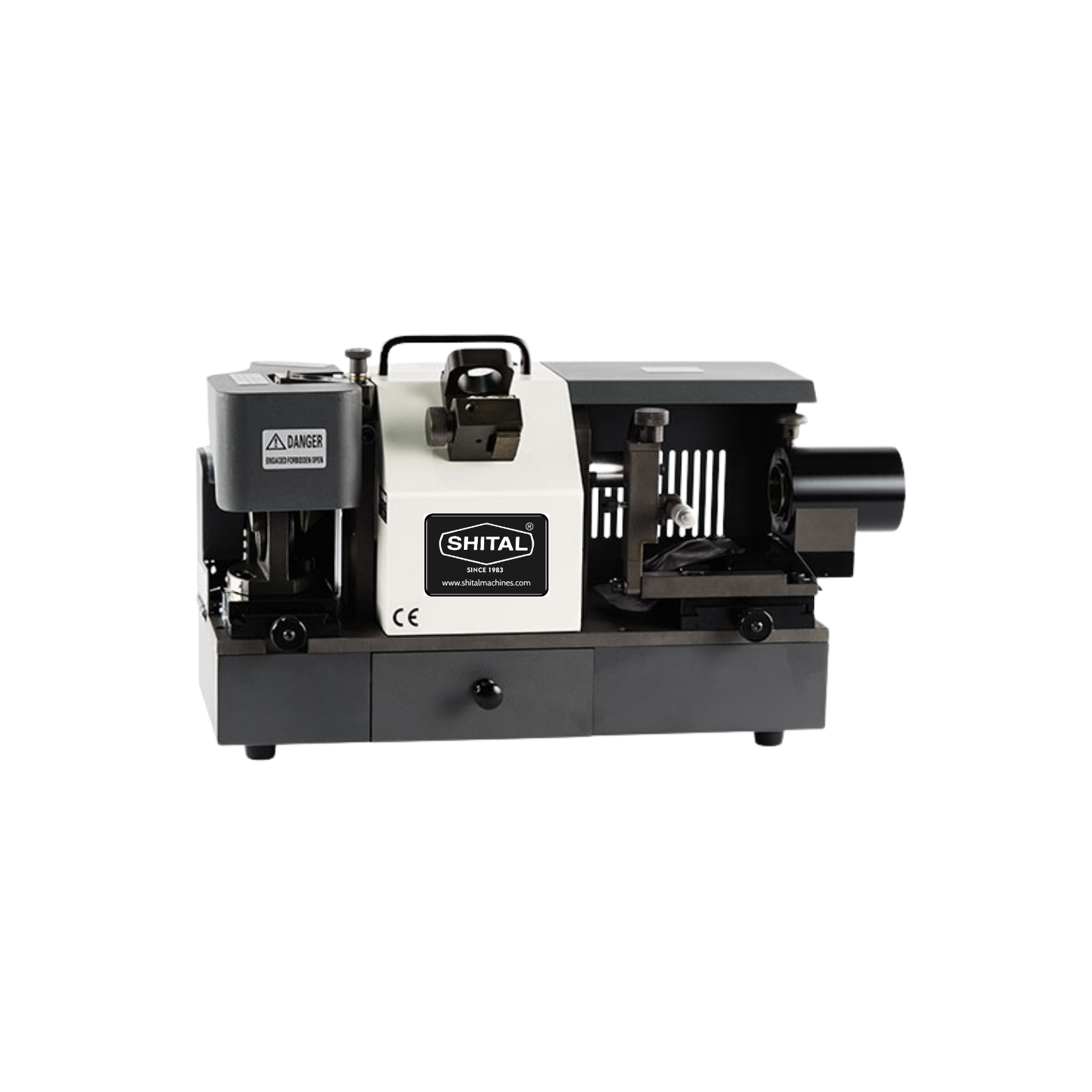

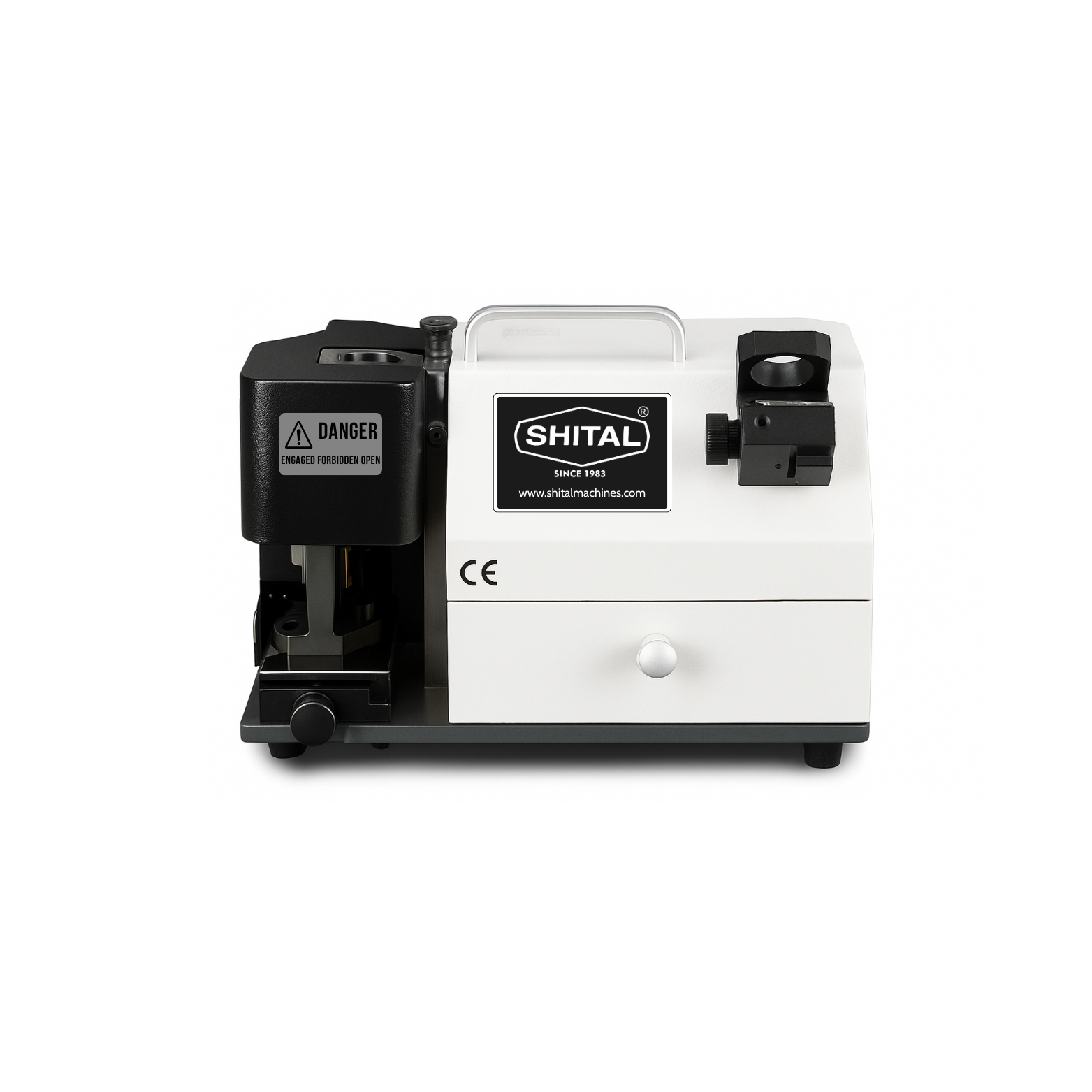

End Mill Grinder

This machine is used to grind and resharpen end mills, ensuring sharp cutting edges and optimal milling performance.

  • Easy to carry and portable
  • Sharpens the bit accurately
  • Fast operation
  • X6 and X6A can help grinding the side edge of the spiral milling cutter

Specification

MODEL X3 X3A X5
Grinding Range M4 – M14 M4 – M20 M12 – M30 (M32)
Motor 220V / 200W 220V / 200W 220V / 250W
Speed 4400 Rpm 4400 Rpm 4400 Rpm
Dimension 35 x 23 x 24 cm 35 x 23 x 24 cm 40 x 28 x 31 cm
Weight 15.3 Kg 15.3 Kg 27.3 Kg

MODEL
X6
X6A
Grinding Range
M4 – M14
M4 – M20
Motor
220V / 160W
220V / 160W
Speed
4400 Rpm
4400 Rpm
Dimension
41 x 24.5 x 30 cm
41 x 24.5 x 30 cm
Weight
22 Kg
23 Kg
COLLET’S INCLUDED:
X3: 6 Collets
X3A: 9 Collets
X5: 10 Collets
X6: 11 Collets
X6A: 17 Collets

Accessories

Standard Accessories
  • ISO Collets
  • SD Wheel (For carbide)
Optional Accessories
  • CBN Wheel (For HSS)
