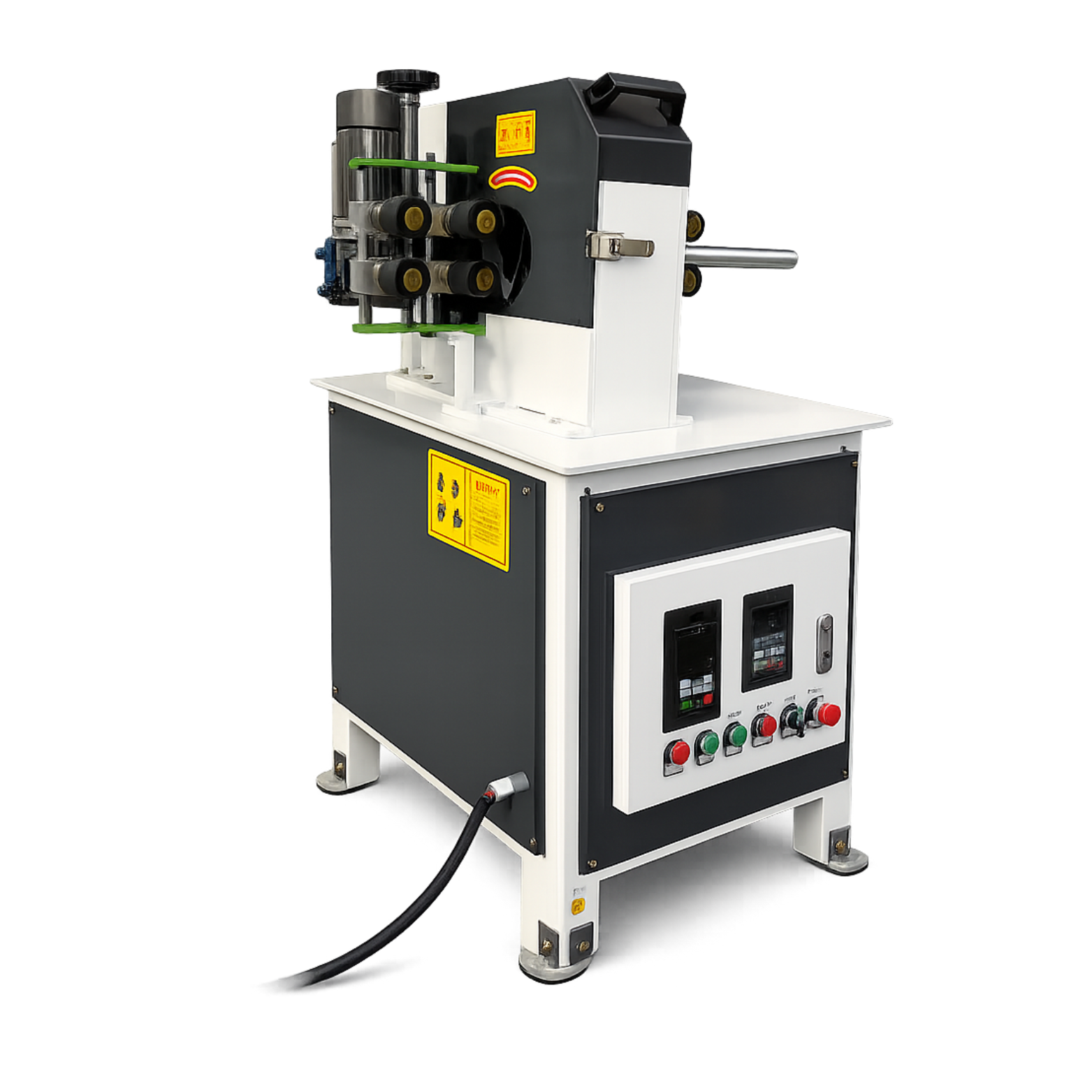

Bend Pipe Polishing

This machine ensures high-precision straight and bend pipe surface finishing with smooth and efficient operation.

  • This automatic PLC-controlled pipe polishing machine is designed for both straight and bend pipe polishing applications with high precision and efficiency.
  • Equipped with an advanced PLC control system, it offers easy operation, stable performance, and adjustable polishing settings for consistent surface finishing.
  • The heavy-duty roller mechanism ensure smooth, uniform polishing on stainless steel, aluminium, and metal pipes.

Specification

MODEL
BPP-80
Polishing Diameter
3 – 80 mm (Adjustable)
Working Length
10 – 3000 mm
Sanding Belt Size
762/730 x 45 mm
Main Wheel Speed
0 – 2800 RPM (Variable)
Feeding Speed
0 – 8 Meter/Min (Variable)
Main Motor
4 Hp / 415 V
Feeding Motor
0.15 Hp x 2 Nos
Machine Size
1100 x 900 x 1100 mm
Total Weight (Approx)
240 Kg

Accessories

Standard Accessories
  • Electric Motor
