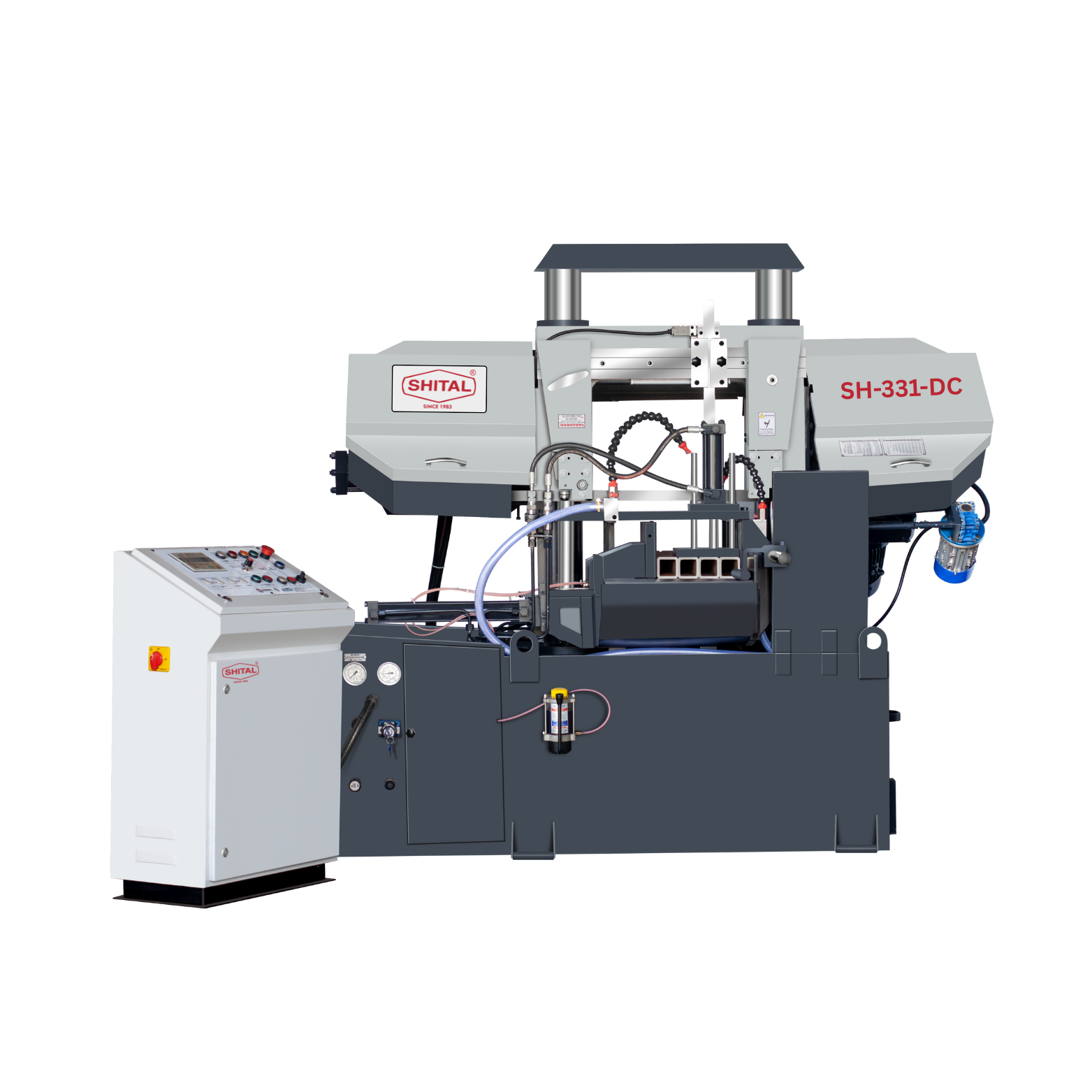

Semi Automatic Bandsaw Machine
This bandsaw offers improved efficiency compared to manual bandsaws, ideal for medium-volume production tasks.
- Single acting hydraulic cylinder for front vice.
- Power driven wire brush for continue cleaning bi-metal blade.
- Automatic working height control device & fast approach.
- Hydraulic blade tension.
- PLC control for all electric & hydraulic functions.
- Automatic work height control & fast approach save idle time.
- Manual oil lubrication system.
- Infinitely variables speed control by A.C. frequency drive.
Specification
| MODEL | SH-241 DC | SH-331 DC | SH-431 DC | SH-551 DC | SH-701 DC | SH-801 DC | SH-1051 DC |
| Capacity Round | 240 mm | 330 mm | 430 mm | 550 mm | 700 mm | 800 mm | 1050 mm |
| Blade Dimensions (mm) | 3760 x 27 x 0.9 | 4100 x 34 x 1.03 | 5200 x 41 x 1.3 | 6900 x 54 x 1.6 | 8000 x 67 x 1.6 | 10300 x 67 x 1.6 | 12300 x 80 x 1.6 |
| Blade Speed meter/min | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD |
| Drive motor (440V, 3 Ph) | 3 Hp, 1440 RPM | 3 Hp, 1440 RPM | 5 Hp, 1440 RPM | 7.5 Hp, 1440 RPM | 10 Hp, 1440 RPM | 12.5 Hp, 1440 RPM | 12.5 Hp, 1440 RPM |
| Hydraulic drive (440V, 3 Ph) | 1 Hp, 1440 RPM | 1 Hp, 1440 RPM | 1.5 Hp, 1440 RPM | 1.5 Hp, 1440 RPM | 2 Hp, 1440 RPM | 2 Hp, 1440 RPM | 2 Hp, 1440 RPM |
| Wire brush (440V, 3 Ph) | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM |
| Coolant Pump (440V, 3 Ph) | 0.15 HP, 440 V | 0.15 HP, 440 V | 0.15 HP, 440 V | 0.25 HP, 440 V | 0.25 HP, 440 V | 0.25 HP, 440 V | 0.25 HP, 440 V |
| Hydraulic Tank | 50 Liters | 50 Liters | 50 Liters | 100 Liters | 100 Liters | 100 Liters | 100 Liters |
| Coolant Tank | 60 Liters | 60 Liters | 80 Liters | 80 Liters | 100 Liters | 100 Liters | 100 Liters |
| Dimensions in mm (L x W x H) | 2250 x 975 x 1275 | 2430 x 1050 x 1275 | 2430 x 1100 x 1575 | 3000 x 1275 x 1950 | 3900 x 1440 x 2430 | 4380 x 1650 x 2820 | 4875 x 1830 x 3390 |
| Weight | 1260 Kg | 1530 Kg | 1980 Kg | 3630 Kg | 5150 Kg | 6150 Kg | 12270 Kg |
Accessories
Standard Accessories
- Bi-metal Blade.
Optional Accessories
- Automatic chip conveyor system.
- Job roller stand (1 meter long).
- Chip removing wire brush.
- Automatic oil lubrication system.
- Variable vice pressure for thin walled job (For Soft Material).
