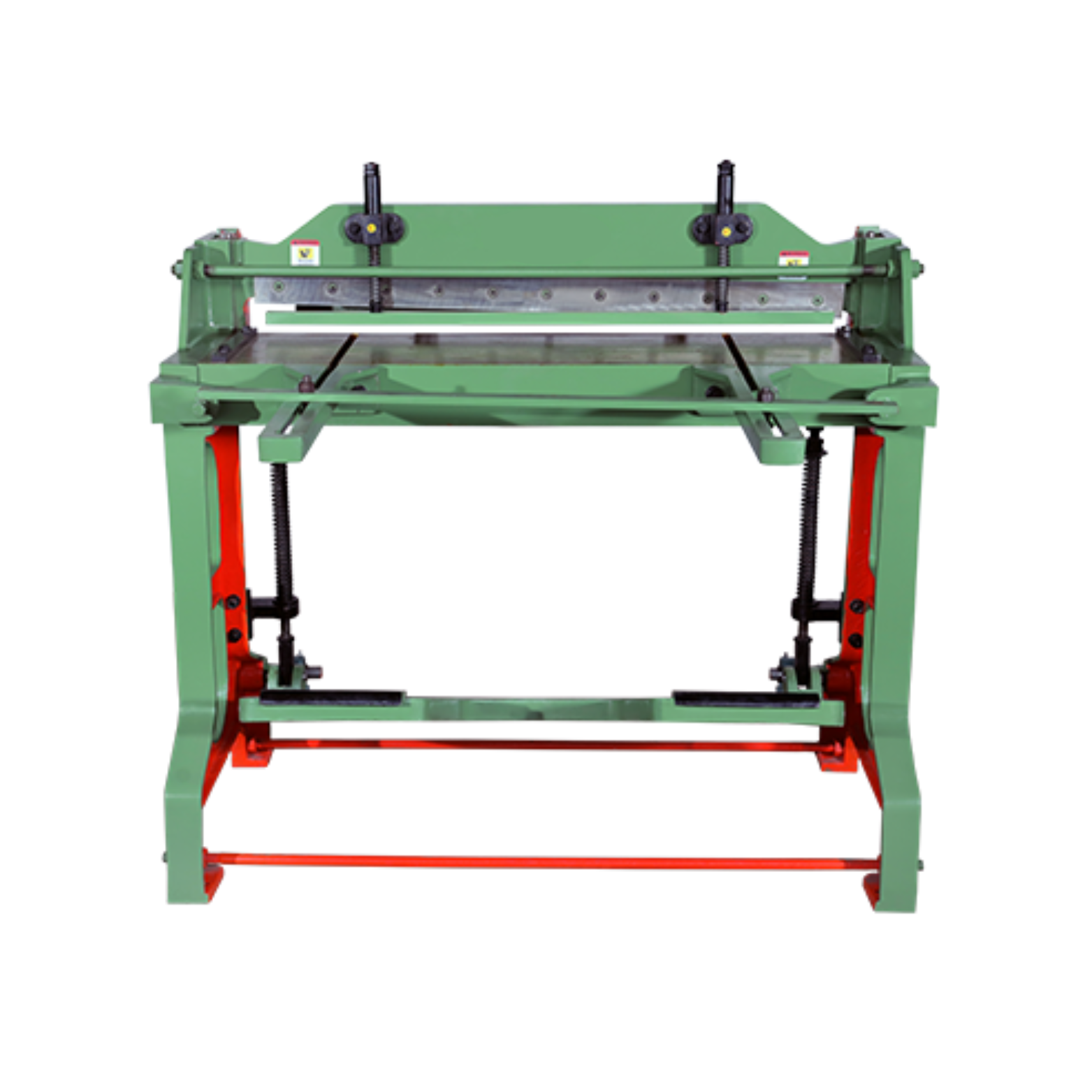

Treadle Shearing Machine
A treadle shearing machine is a manually operated foot-operated pedal (treadle) used to shear or cut sheet metal.
- Salient Features: Rigid Rigid And Streamline Construction Ensures Vibration-free And Fatigue Less Function Of The Machine.
- Working: Upper Beam/ram Is Moving In C. I. Guide Ways With Precision Bearing Surface And Having Adjustment For Compensating Wear And Tear.
- Adjustment: Adjustable Front & Back Gauge With Through Slots Which Facilitates Adjustment Of Different Widths Of Cuts.
- Blade: Machines Are Filed With HCHCR Quality Four Edge Shearing Blade To Avail Maximum Use Of Blades.
- Blade Seng: The Seng Bolts Are Provided For Lower-fixed Blade To Adjust Vertically When Height Of Blade Is Reduced Aer Resharpening.
- Driving Pedal: The Extra Heavy Treadle With Proper Weight Is Spring Loaded And Very Well Designed For Operator’s Convenience Which Takes Minimum Pressure While Cutting.
Specification
| MODEL | SIZE OF MACHINE | LENGTH OF BED | WIDTH OF BED | CAP THICKNESS M.S. | SIZE OF BLADE | FLOOR TO TOP OF BED |
| JTSM-12” | 305 | 406 | 203 | 0.9mm | 305X62X14 | 864 |
| JTSM-18” | 458 | 559 | 279 | 0.9mm | 482X62X14 | 889 |
| JTSM-24″ | 610 | 711 | 279 | 0.9mm | 635X62X14 | 889 |
| JTSM-36” | 915 | 1016 | 279 | 0.9mm | 940X62X14 | 889 |
| JTSM-40” | 1016 | 1118 | 318 | 0.9mm | 1041X62X14 | 889 |
| JTSM-50” | 1270 | 1397 | 318 | 0.8mm | 1295X62X14 | 889 |
| JTSM-60” | 1524 | 1651 | 318 | 0.8mm | 1550X62X14 | 889 |
| JTSM-80” | 2032 | 2134 | 318 | 0.8mm | 2057X62X14 | 889 |
