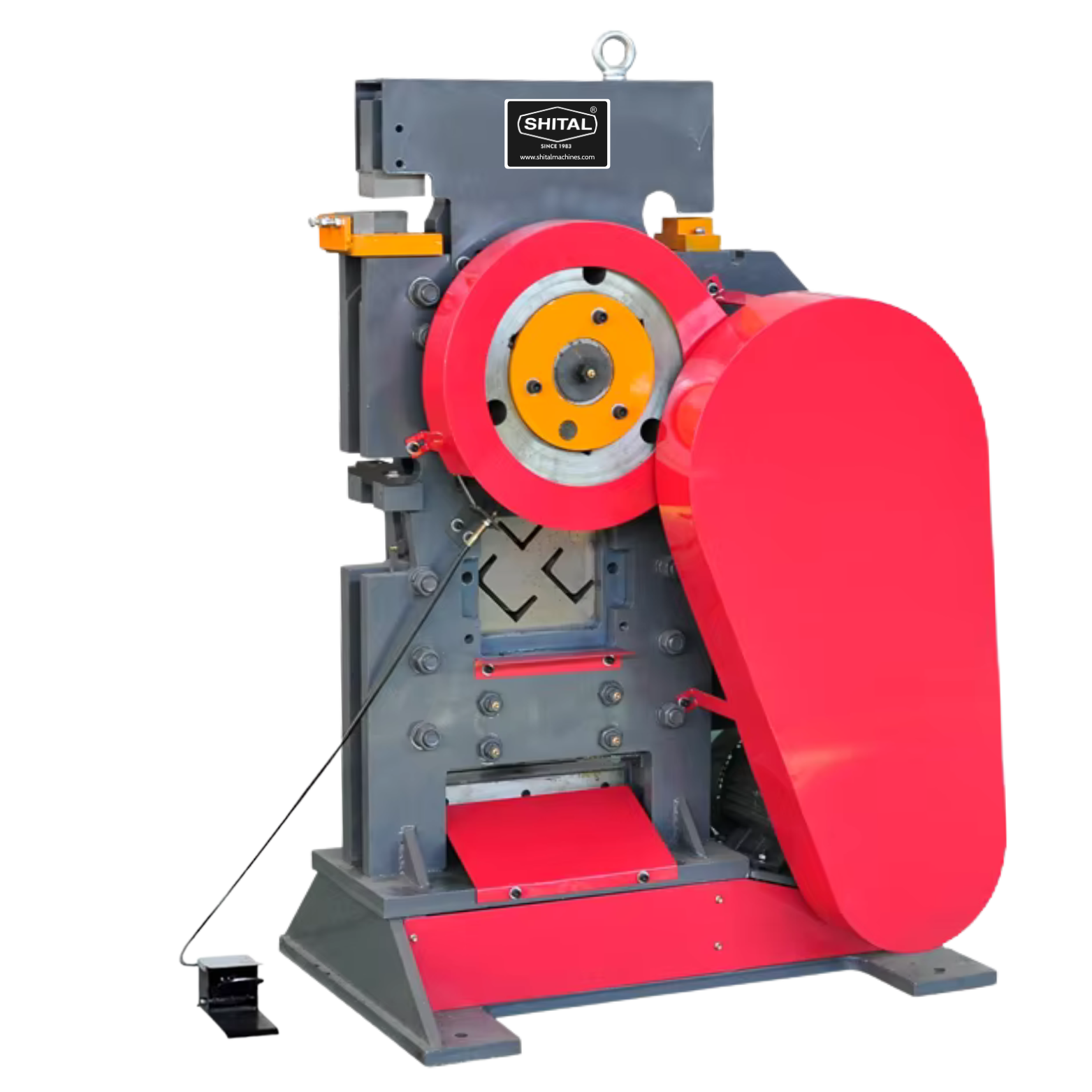

Iron Worker Machine
Ironworker machine combines multiple functions in one machine, increasing efficiency in metal fabrication and structural work.
- Iron Worker machine integrates multiple functions such as metal shearing, punching, plate shearing.
- It has the advantages of simple operation, low energy consumption and low maintenance cost.
- This Machine is preferred for metal processing in modern manufacturing industries.
Specification
| MODEL | SL-8B | SL-10B | SL-12B |
| Max Punching Force | 360 KN | 500 KN | 900 KN |
| Mold Stroke | 27 mm | 30 mm | 36 mm |
| Stamping Speed | 30 time / min | 30 time / min | 30 time / min |
| Motor | 2.2 Kw / 415 V | 3.0 Kw / 415 V | 4.0 Kw / 415 V |
| Net Weight | 450 Kg | 710 Kg | 910 Kg |
MAXIMUM CUTTING CAPACITY
| MODEL | CHANNEL | SQAURE BAR | FLAT BAR | ROUND BAR | NOTCHING | PUNCHING (Round/Oblong Hole) | ANGLE SHEARING |
| SL-8B | 80 x 45 mm | 20 x 20 mm | 180 x 8 mm | 20 mm | 50 x 50 x 5 mm | 22 / 30 x 18 mm | 75 x 75 x 8 mm |
| SL-10B | 120 x 55 mm | 25 x 25 mm | 230 x 10 mm | 25 mm | 50 x 50 x 5 mm | 26 / 30 x 22 mm | 100 x 100 x 10 mm |
| SL-12B | 160 x 65 mm | 30 x 30 mm | 330 x 12 mm | 30 mm | 50 x 50 x 5 mm | 26 / 30 x 22 mm | 125 x 125 x 12 mm |
Accessories
Standard Accessories
CUTTING DIE FITTED IN THE MACHINE
1) MODEL: SL-8B
- ANGLE : 55 x 55 mm
- CHANNEL : 75 x 40 mm
- ROUND HOLE PUNCHING : 16 mm
2) MODEL: SL-10B
- ANGLE : 65 x 65 mm
- CHANNEL : 100 x 50 mm
- SQUARE BAR : 20 x 20 mm
- ROUND BAR : 20 mm
- ROUND HOLE PUNCHING : 16 mm
- OBLONG HOLE PUNCHING : 30 x 16 mm
3) MODEL: SL-12B
- ANGLE : 65 x 65 mm
- CHANNEL : 75 x 40, 100 x 50 mm
- SQUARE BAR : 20 x 20 mm
- ROUND BAR : 25 mm
- ROUND HOLE PUNCHING : 16 mm
- OBLONG HOLE PUNCHING : 30 x 16 mm
Optional Accessories
- Round Hole Punching Die
- Oblong Hole Punching Die
