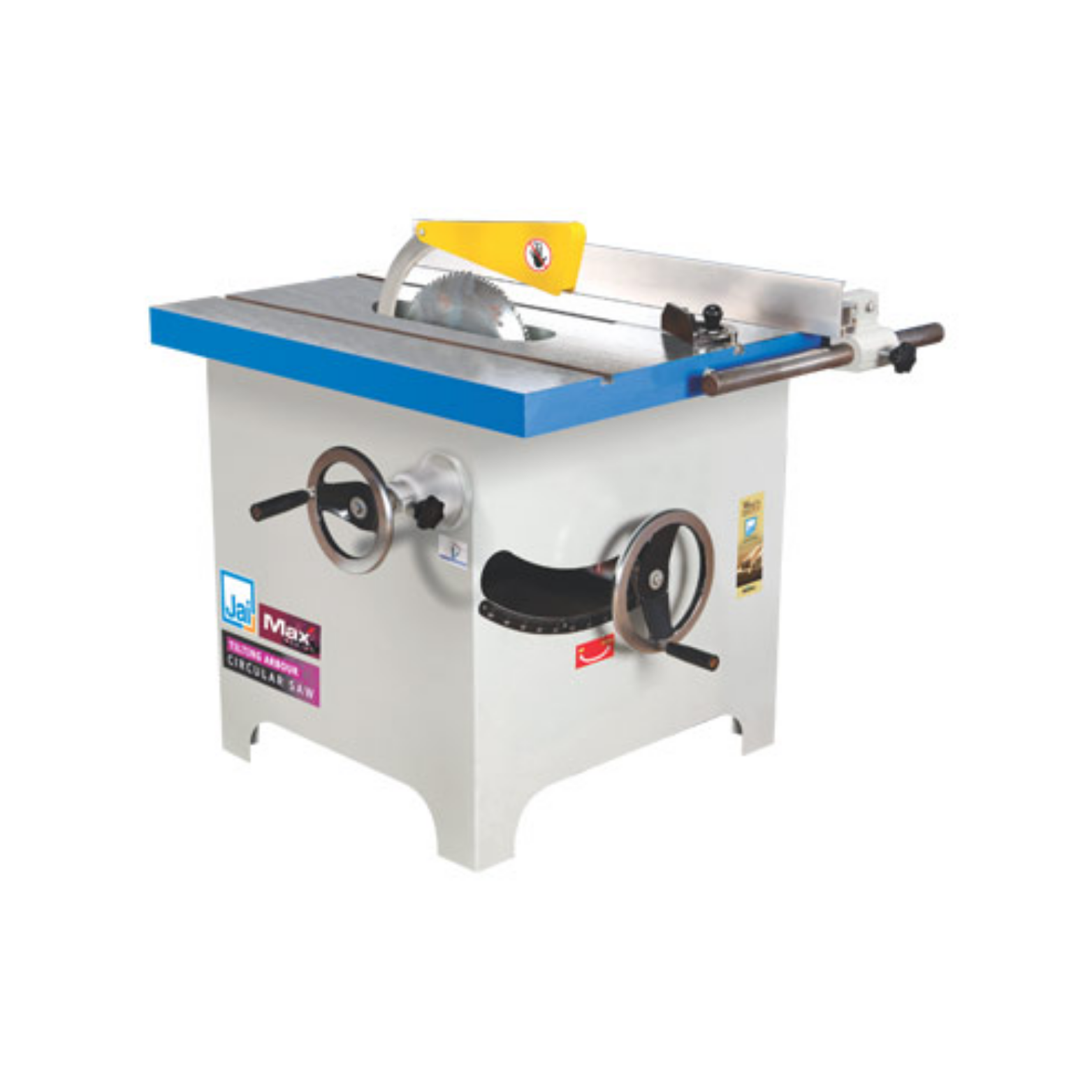

Tilting Arbour Circular Saw Machine

It features a circular blade mounted on an arbour that can tilt, designed for precise straight and angled cuts.

Specification

MODEL J-634
Max. Circular saw dia. x Bore 14″ x 1″
Max. depth of cut 89 mm
Table tilt – degree 45°
Work table size 36″ x 31″
Size of dust collection port – Dia. 4″
Circular saw speed (RPM) 4000
Power required HP / RPM 5/1440
Approx Weight 330 Kg

Accessories

Standard Accessories
  • Miter gauge.
  • Motor pulley.
  • Motor fixing plate.
  • Saw guard.
  • Toolkit.
Optional Accessories
  • Electric Motor.
  • V-Belts.
  • Circular saw blade.
  • Starter.
