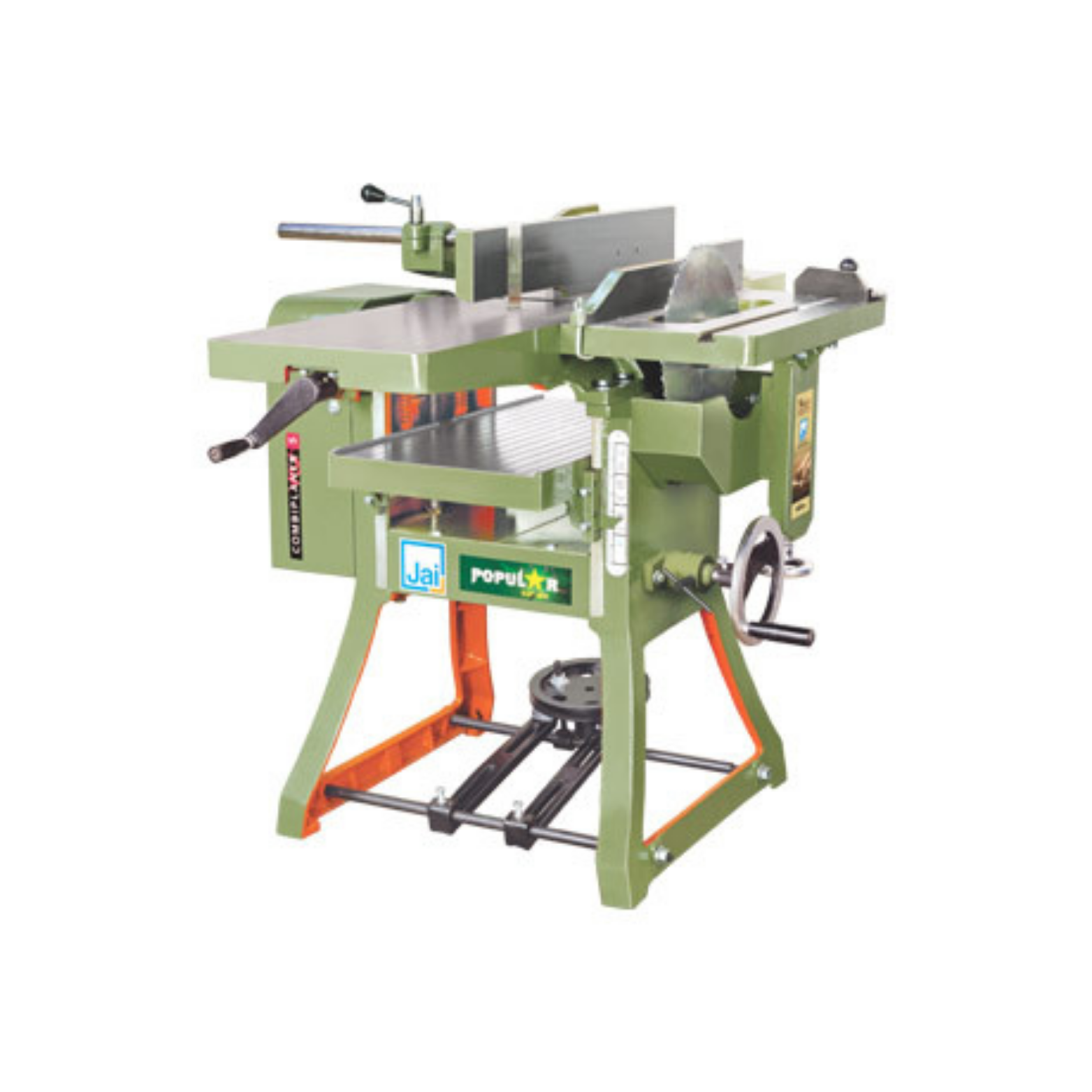

Combiplaner Machine – Open Stand
These are preferred by wood-working workshops for its enhanced utility, trusted performance and rugged durability.
Specification
| MODEL | J-302 | J-303 |
| Surfacing capacity | 10″ | 13″ |
| Max planning width | 10″ | 13″ |
| Thicknessing capacity | 7″ | 7″ |
| Length of surface Table | 45″ | 48″ |
| Rebating Capacity | 12.5 mm | 12.5 mm |
| Length of Thickness Table | 610 mm | 660 mm |
| Min. Length of workpiece for thicknessing | 10″ | 10″ |
| Feeding Speed (feet per minute) |
24 |
24 |
| Cutter block diameter | 95 mm | 95 mm |
| Cutter block speed- RPM |
4000 |
4000 |
| Standard cutter block – code no. | 2B | 3B-W |
| Circular saw table size | 22″ x 11″ | 22″ x 11″ |
| Up/Down movement of Circular saw table | 3″ | 3″ |
| Max. circular saw diameter | 12″ | 12″ |
| Power required – HP / RPM | 2 / 1440 | 3 / 1440 |
| Approx weight | 280 Kg | 320 Kg |
Accessories
Standard Accessories
- 2/3 planer blades fitted in cutter block.
- Miter gauge.
- Motor pulley.
- Motor fixing plate.
- Toolkit.
Optional Accessories
- Electric Motor
- V-Belts
- Starter
