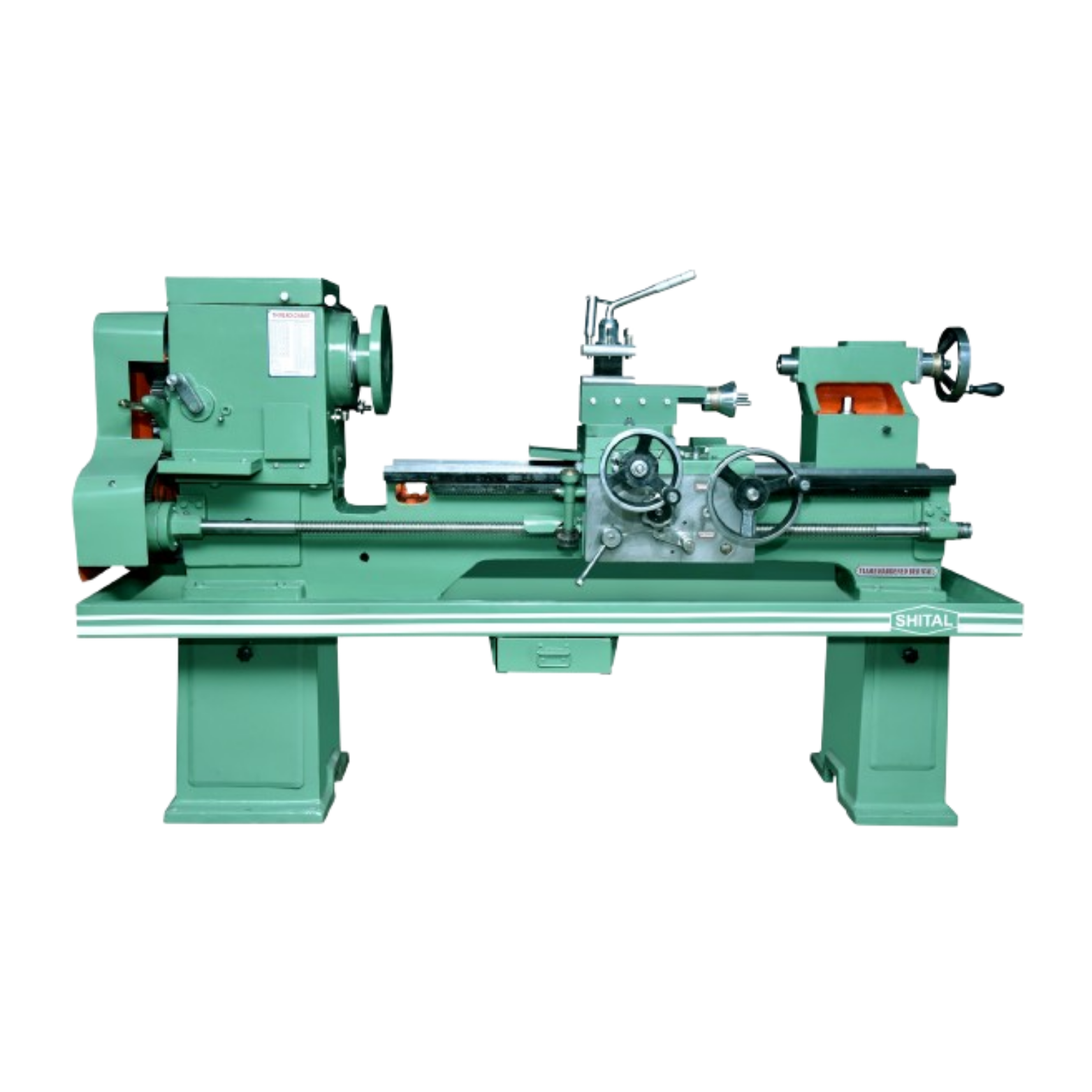

Medium Duty Lathe

A Medium Duty Lathe is designed for medium duty operations like turning, threading and facing on various materials.

  • Latest design Head Stock
  • High Tensile Casting
  • Hardened Bed
  • Hardened Spindle
  • SKF Bearing
  • All Nut Gun Metal
  • Tail Stock Spindle Harden

Specification

MODEL SL-MD1 SL-MD2 (2″) SL-MD2 (3″)
Bed Width 280 mm 280 mm 280 mm
Bed Type 2/2 V/Flat 2/2 V/Flat 2/2 V/Flat
Gap Length 120 mm 120 mm 120 mm
Height of Centre 215 mm 254 mm 254 mm
Swing Over Bed 425 mm 465mm 465mm
Swing Over Cross Slide 245 mm 280 mm 280 mm
Swing Over Gap 665 mm 705 mm 705 mm
Cross Slide Travel 255 mm 255 mm 255 mm
Compound Slide Travel 140 mm 140 mm 140 mm
Spindle Sleeve Nose MT-4 MT-4 MT-4
Spindle Bore 52 mm 52 mm 80 mm
Spindle Speed 6 6 6
Spindle Range 35-500 RPM 35-500 RPM 35-500 RPM
Spindle Motor Power 2 Hp 2 Hp 2 Hp
Quill Dia 50.8 mm 50.8 mm 50.8 mm
Quill Stroke 125 mm 125 mm 125 mm
Taper in Quill MT-4 MT-4 MT-4

Accessories

Standard Accessories
  • Change Gear Set
  • Chuck Plate
  • Centre Adaptor
  • Dead Centre
  • Tool Post Key
  • Motor Pulley
Optional Accessories
  • Electric Motor
  • V-Belt & R/F Switch
  • Norton Gear Box
  • True chuck
  • Dog chuck
  • Steady rest
  • Follow Rest
  • Face Plate
  • Taper Turning Attachment
  • Rear Tool Post
  • Splash Guard
  • Coolant Assembly
