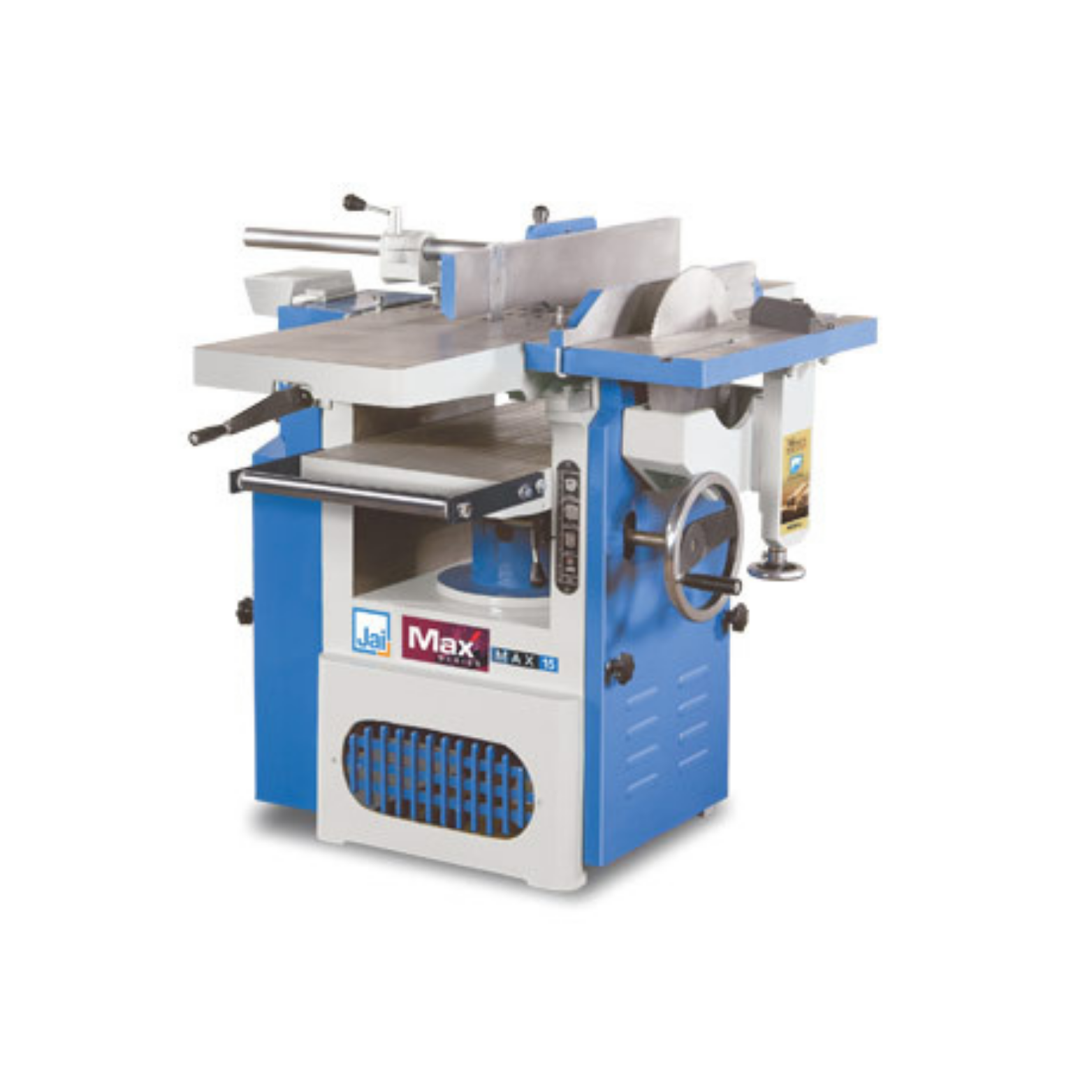

Combiplaner Machine – Box Type
Combiplaners are combined Surfacer & Thickness machines, combining multi functionality in a machine.
Specification
| MODEL | J-1014 | J-1015 | J-1019 | J-1025 |
| Surfacing capacity | 13″ | 15″ | 18″ | 24″ |
| Max planning width | 13″ | 15″ | 18″ | 24″ |
| Thicknessing capacity | 7″ | 7″ | 7″ | 7″ |
| Length of surface Table | 48″ | 51″ | 61″ | 61″ |
| Rebating Capacity | 12.5 mm | 12.5 mm | 12.5 mm | 12.5 mm |
| Length of Thickness Table | 640 mm | 710 mm | 735 mm | 800 mm |
| Min. Length of workpiece for thickness | 10″ | 10″ | 10″ | 10″ |
| Feeding Speed (feet per minute) |
24 |
24 |
24 |
24 |
| Cutter block diameter | 95 mm | 95 mm | 105 mm | 120 mm |
| Cutter block speed- RPM |
4000 |
4000 |
4000 |
4000 |
| Standard cutter block – code no. | 2B | 2B | 3B-W | 3B-W |
| Circular saw table size | 24″ x 12″ | 24″ x 12″ | 24″ x 14″ | 24″ x 14″ |
| Up/Down movement of Circular saw table | 3″ | 3″ | 3″ | 3″ |
| Max. circular saw diameter | 12″ | 12″ | 12″ | 12″ |
| Power required – HP / RPM | 3 / 1440 | 3 / 1440 | 5 / 1440 | 5 / 1440 |
| Approx weight | 400 Kg | 450 Kg | 600 Kg | 750 Kg |
Accessories
Standard Accessories
- 2/3 planer blades fitted in cutter block.
- Miter gauge.
- Motor pulley.
- Motor fixing plate.
- Toolkit.
Optional Accessories
- Electric Motor
- V-Belts
- Starter
