- 20, 25, 38, 40 mm Drill Machine
»

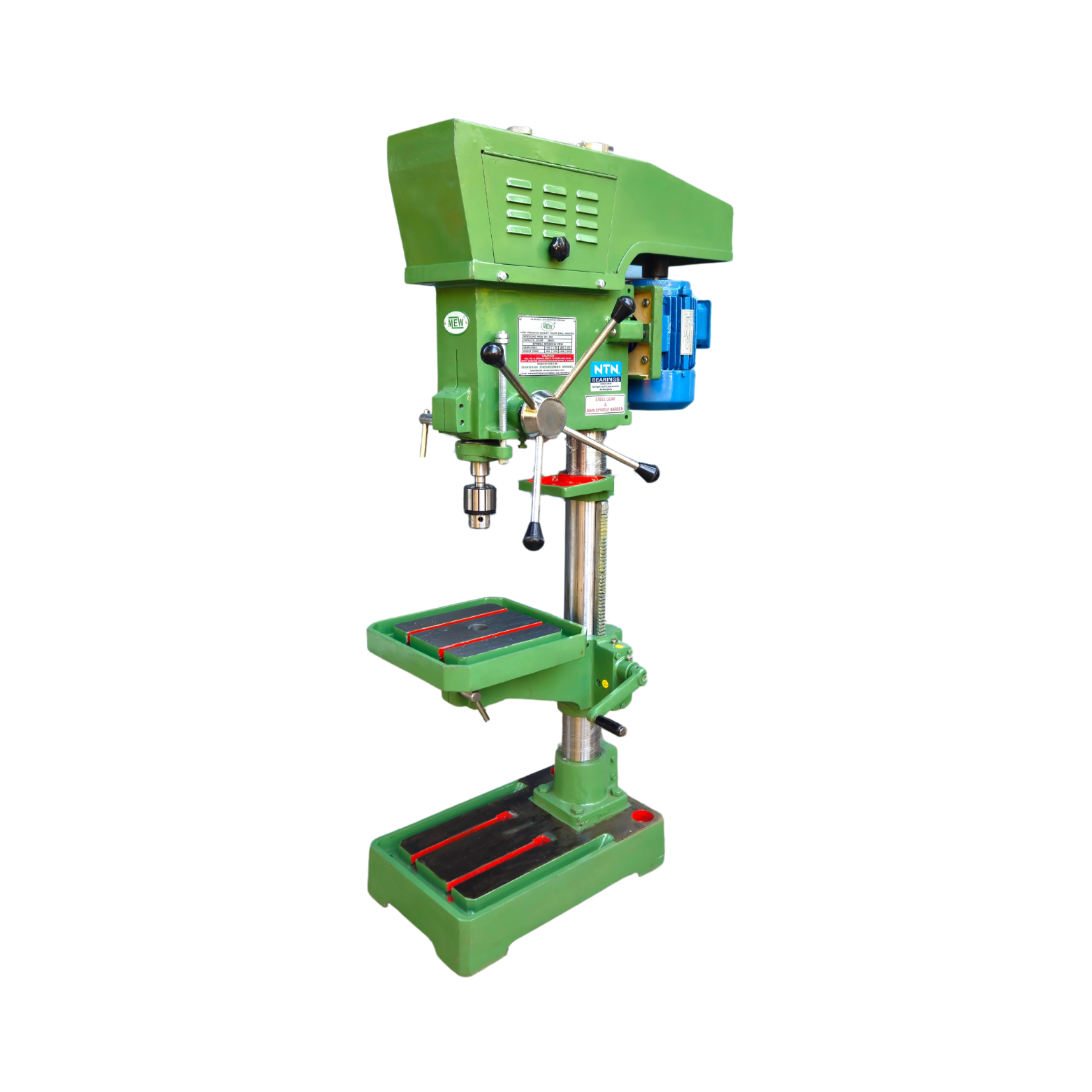

20, 25, 38, 40 mm Drill Machine
Pillar Drill features a stable column, fine feed mechanism making it ideal for detailed work in metals.
- High Tensile Casting
- Steel Gears
- Hardened Spindle
- NTN Bearing (Japan make)
Specification
| MODEL | 20/200 | 25/230 | 25/250 | 38/280 | 38/300 | 40/350 |
| Drilling (C.I) | 20 | 25 | 25 | 38 | 38 | 45 |
| Drilling (M.S) | 20 | 25 | 25 | 38 | 38 | 40 |
| Tapping Capacity | 10 | 15 | 15 | 15 | 20 | 25 |
| Taper Spindle | MT-2 | MT-3 | MT-3 | MT-4 | MT-4 | MT-4 |
| Quil Movement | 120 | 155 | 175 | 230 | 230 | 240 |
| No. Range of Spindle | 8 | 8 | 8 | 8 | 8 | 8 |
| Spindle Speed Min/Max (RPM) | 80 to 3500 | 130 to 2600 | 130 to 2600 | 70 to 2000 | 70 to 2000 | 70 to 2000 |
| Dist. From Spindle Centre to Column | 200 | 230 | 250 | 280 | 300 | 350 |
| Max Dist from Spindle to Base Plate | 900 | 1050 | 970 | 940 | 1000 | 1030 |
| Max Dist. From Spindle to Work Table | 650 | 680 | 530 | 530 | 530 | 530 |
| Table Diameter | 250 x 250 | 310 x 310 | 325 x 325 | 380 x 380 | 422 x 422 | 485 x 485 |
| Column Diameter | 74 | 92 | 92 | 101 | 108 | 135 |
| Base Plate | 480 x 310 | 370 x 550 | 580 x 365 | 630 x 405 | 680 x 430 | 800 x 525 |
| No. of ‘T’ Slots | 2 | 2 | 2 | 2 | 2 | 2 |
| Drilling Motor | 1 Hp | 1 Hp | 1 Hp | 1.5Hp | 1.5Hp | 2Hp |
| Approximate | 110 kg | 185 kg | 225 kg | 300 kg | 375 kg | 550 kg |
Accessories
Standard Accessories
- Electric Motor
- Motor Pulley
- V-Belt
- R/F Switch
- Drill Chuck 1/2″
- Arbour
Optional Accessories
- Drill Vice
- Compound slide table
