Drill Bit Grinder
It is used to grind and resharpen drill bits, restoring their cutting edges for improved drilling precision.
- 13D and 26D can Grind the Drill’s point Angle, Splitting Angle and Lip Relief Angle.
- 13B, 20G and 26P can Grind the Drill’s point Angle and Splitting Angle.
- It can control the quality precision and prolong the service life of Drill bit.
- With powerful DC motor, it is Stable and Durable.
Specification
| MODEL | 13D | 26D | 13B | 20G | 26P |
| Grinding Range | M3 – M13 | M13 – M26 | M3 – M13 | M3 – M20 | M3 – M30 |
| Point Angle | 95° – 135° | 95° – 135° | 95° – 135° | 95° – 135° | 95° – 135° |
| Motor | 220V / 120W / 50Hz | 220V / 250W / 50Hz | 220V / 120W / 50Hz | 220V / 120W / 50Hz | 220V / 250 W / 50Hz |
| Speed | 4400 Rpm | 4400 Rpm | 4400 Rpm | 4400 Rpm | 4400 Rpm |
| Dimension | 32 x 18 x 19 cm | 46 x 24 x 22 cm | 32 x 18 x 19 cm | 33 x 18 x 20 cm | 46 x 24 x 22 cm |
| Weight | 9 kg | 31 kg | 9 kg | 10 kg | 33 Kg |
|

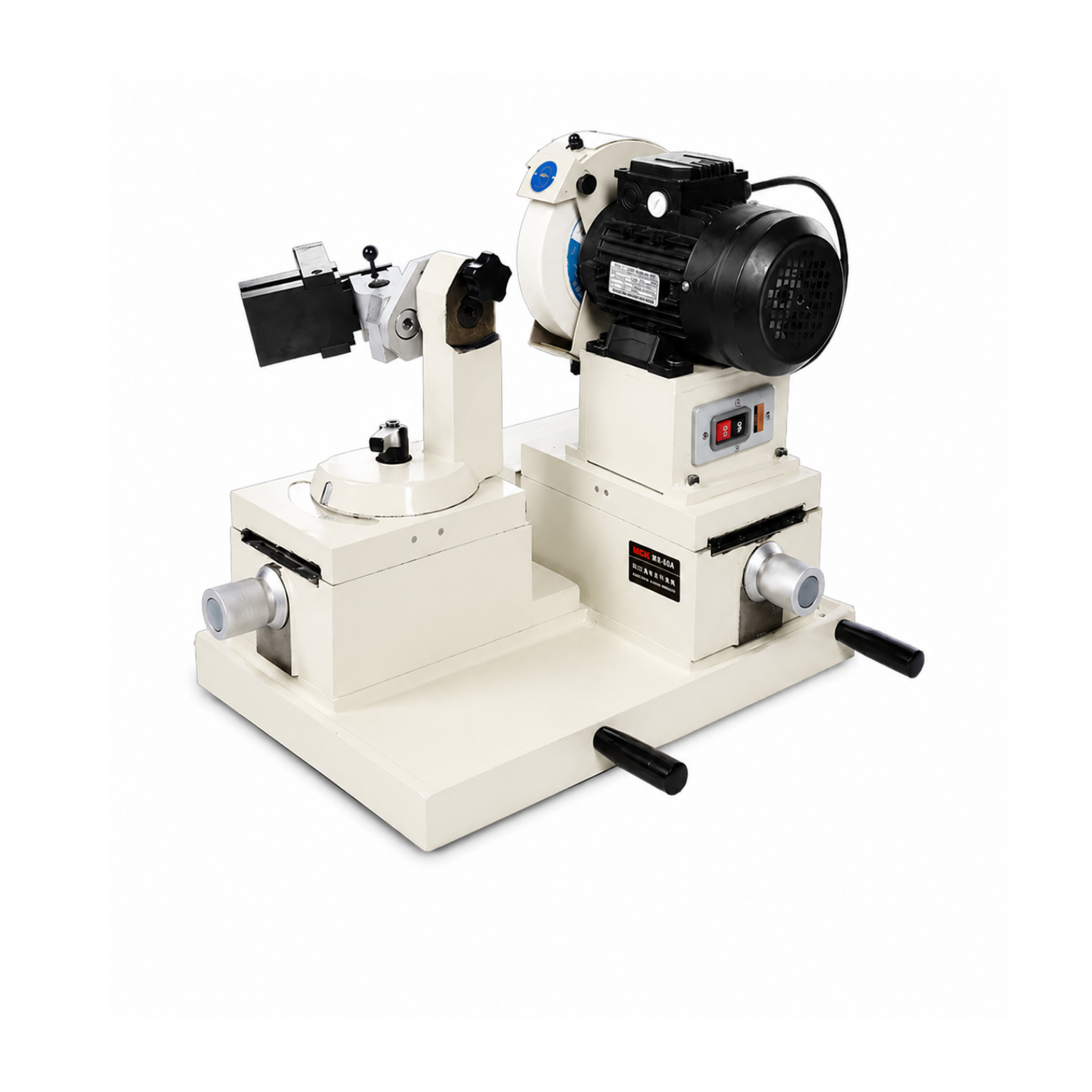

MODEL
|
60A
|
|
Grinding Range
|
M3 – M60
|
|
Point Angle
|
30° – 180°
|
|
Back Angle
|
0° – 15°
|
|
Motor
|
415V / 550W / 50Hz
|
|
Speed
|
2800 Rpm
|
|
Grinding Wheel Diameter
|
200 mm
|
|
Dimension
|
580 x 410 x 450 mm
|
|
Weight
|
145 kg
|
COLLET’S INCLUDED:
13D: 11 Collets
26D: 14 Collets
13B: 11 Collets
20G: 18 Collets
26P: 28 Collets
Accessories
Standard Accessories
- ISO Collets
- CBN Wheel (For HSS)
Optional Accessories
- SD Wheel (For carbide)
