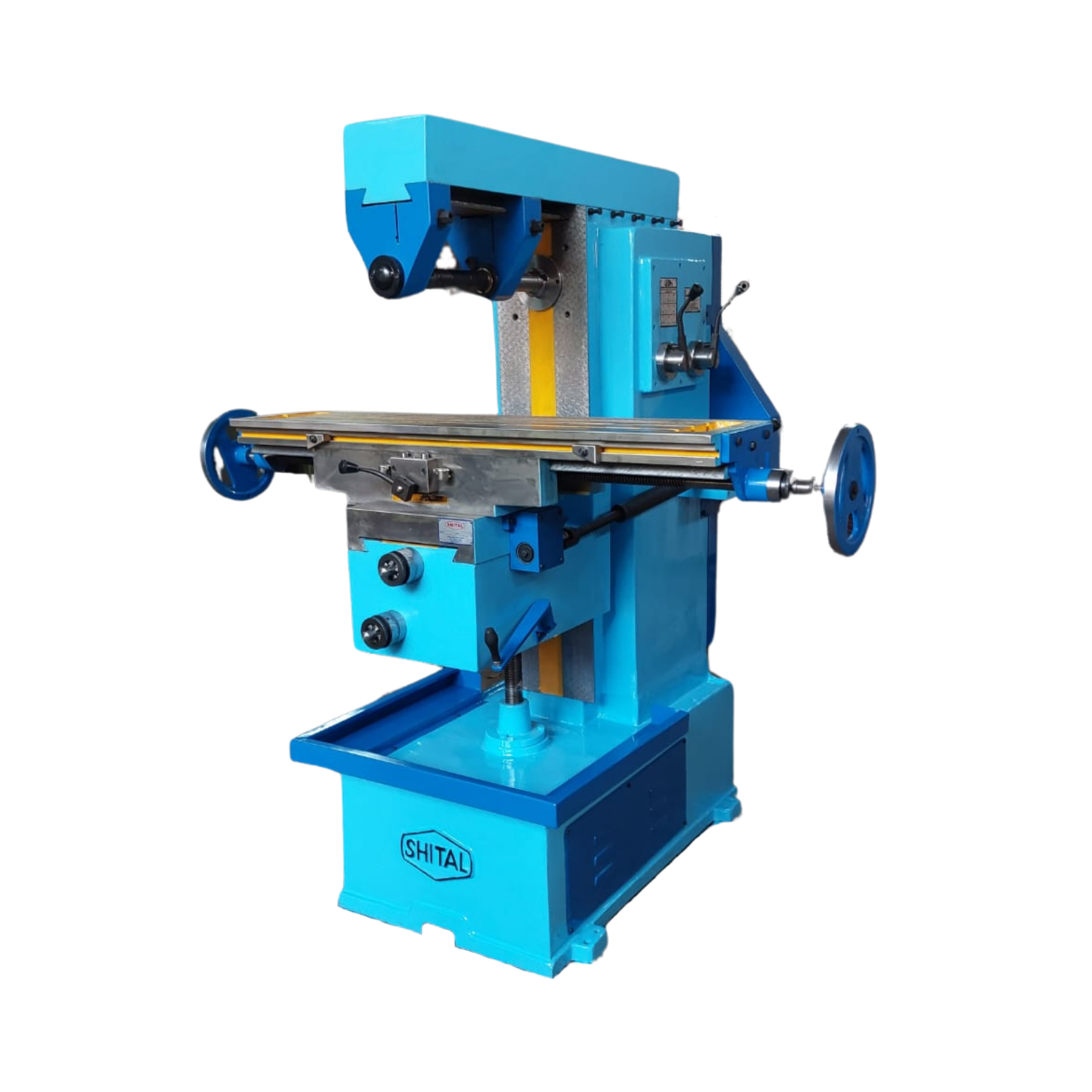

Universal Milling Machine
A universal milling having a swiveling table and adjustable spindle, enabling both horizontal and vertical milling operations.
-
Swiveling Table: Allows the table to be rotated at various angles for angular milling operations.
-
Horizontal and Vertical Spindle: Enables both horizontal and vertical milling operations.
-
Adjustable Overarm:Â Supports different cutter sizes & allows extended reach during machining.
-
Heavy-Duty Construction: Sturdy frame and base for vibration-free and stable operations.
-
Gear-Driven Mechanism: Ensures accurate speed control and torque for various milling tasks.
Specification
| MODEL | SM-1 | SM-1.5 | SM-2 | SM-3 |
| Table Working Surface | 1070 X 230 | 1220 X 250 | 1320 X 280 | 1525 X 305 |
| Cross Feed | 175 | 225 | 300 | 350 |
| Vertical Feed | 380 | 400 | 500 | 650 |
| Longitudinal Feed | 500 | 560 | 600 | 750 |
| Number of Spindle Speed | 6 | 6 | 9 | 9 |
| Spindle Motor | 2HP | 2HP | 3HP | 3HP |
| Coolant Pump | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp |
| Weight Approx | 800 Kg | 1200 Kg | 1600 Kg | 1800 Kg |
Accessories
Standard Accessories
- Vertical Attachment
- Electric motor
- R/F Switch
- V-Belt
- Motor Pulley
- Coolant Equipment
Optional Accessories
- Machine Lamp
- Universal Dividing Head
- Slotting Attachment
- Rotary Table
- Milling Vice
