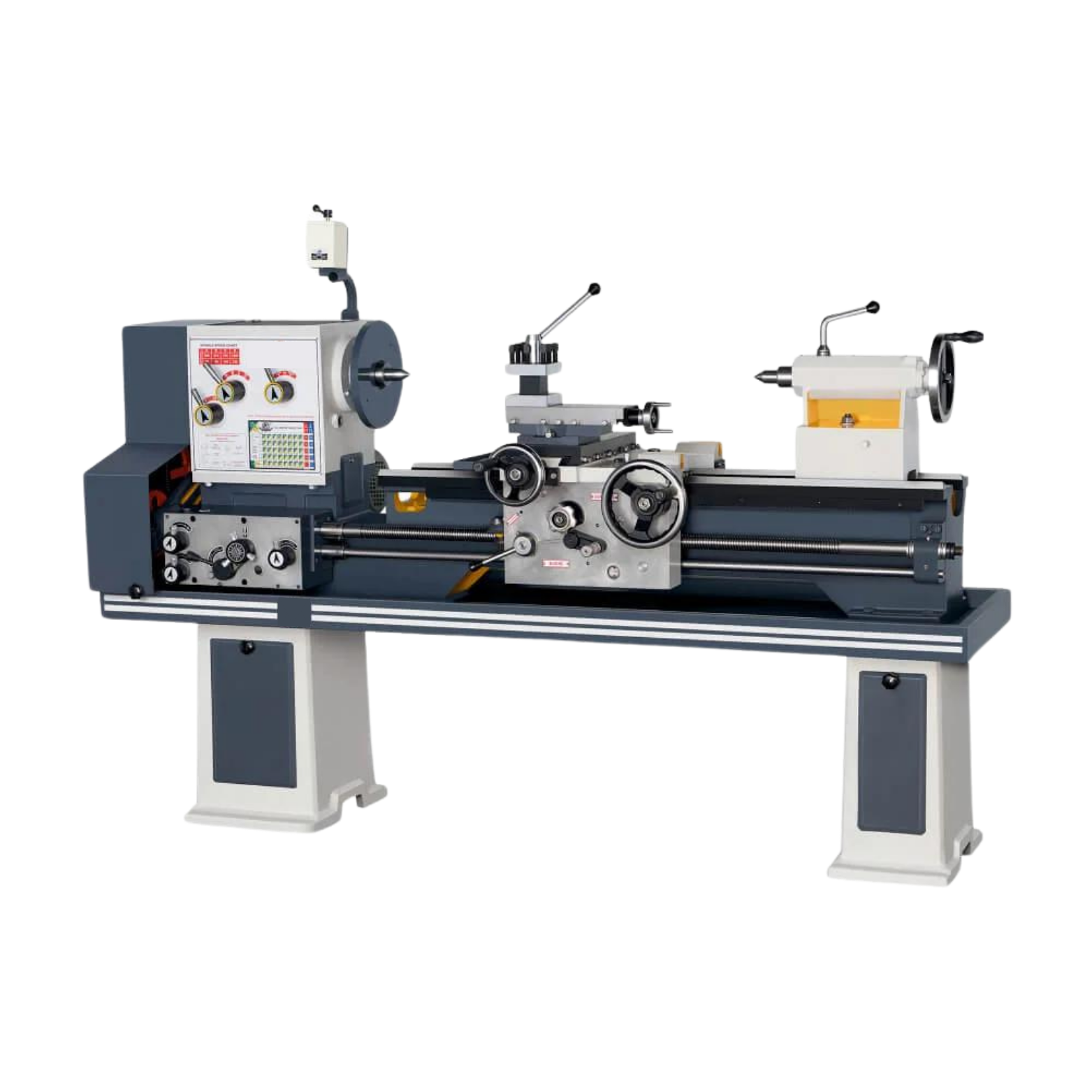

All Gear Medium Duty Lathe Machine
All Gear Medium Duty Lathe is reliable and sturdy lathe built for medium-duty machining operations.
Specification
| BED |
| Length of Bed | 1900 mm (6′-3″) |
| Admit Between Center | 1020 mm |
| Type of Bed | Hardened Bed Ways |
| Swing over Bed | 495 mm |
| Height of Center | 255 mm |
| Width of Bed | 277 mm |
| Swing over Cross Slide | 310 mm |
| Swing in Gap | 700 mm |
| Length of Gap in Front of Face Plate | 150 mm |
| MAIN SPINDLE |
| No. of Spindle Speed | 8 |
| Spindle speed range | 55 to 1200 RPM |
| Taper in spindle | MT-6 |
| Spindle bore | 65 mm |
| Spindle nose | A2 – 6 |
| THREADS |
| Lead screw diameter / pitch | 31.75 mm / 4 TPI |
| Nos. Of threads/range (without norton gear box) | METRIC : 24 / 0.5 mm to 15 mm PITCH INCH : 44 / 2 to 60 TPI |
| No. of feeds | 40 |
| Range of longitudinal feeds | 0.066 – 2 mm |
| Range of transverse feeds | 0.0165 – 0.5 mm |
| TAIL STOCK |
| Tail stock spindle diameter | 50.8 mm |
| Taper in tail stock quill | MT – 4 |
| TRAVEL AND TOOLS |
| Cross slide travel | 270 mm |
| Compound slide travel | 150 mm |
| Tail stock sleeve travel | 140 mm |
| Tool post square | 120 mm |
| Tool shank size | 25 mm |
| Motor | 3 HP |
Accessories
Standard Accessories
-
Chuck back plate
-
Centre adapter
-
Dead Centre
-
Tool post spanner
-
Motor pulley
-
Thread dial indicator
-
Change gear set
-
Chip tray
-
Norton gear box with double shaft
Optional Accessories
- Independent chuck
- Self Centering chuck
- Chuck back plate extra
- Steady rest
- Follow rest
- Face plate
- Carrier plate
- Taper turning attachment
- Coolant pump with tank and fittings
- Rear tool post
- Electricals (motor, wiring, switch, v- belts and fittings)
- Splash guard
- Panel board
- Foundation round plate with levelling bolts
- Quick change tool post
- Key way attachment
- Electrical third shaft
- Paddle stop
