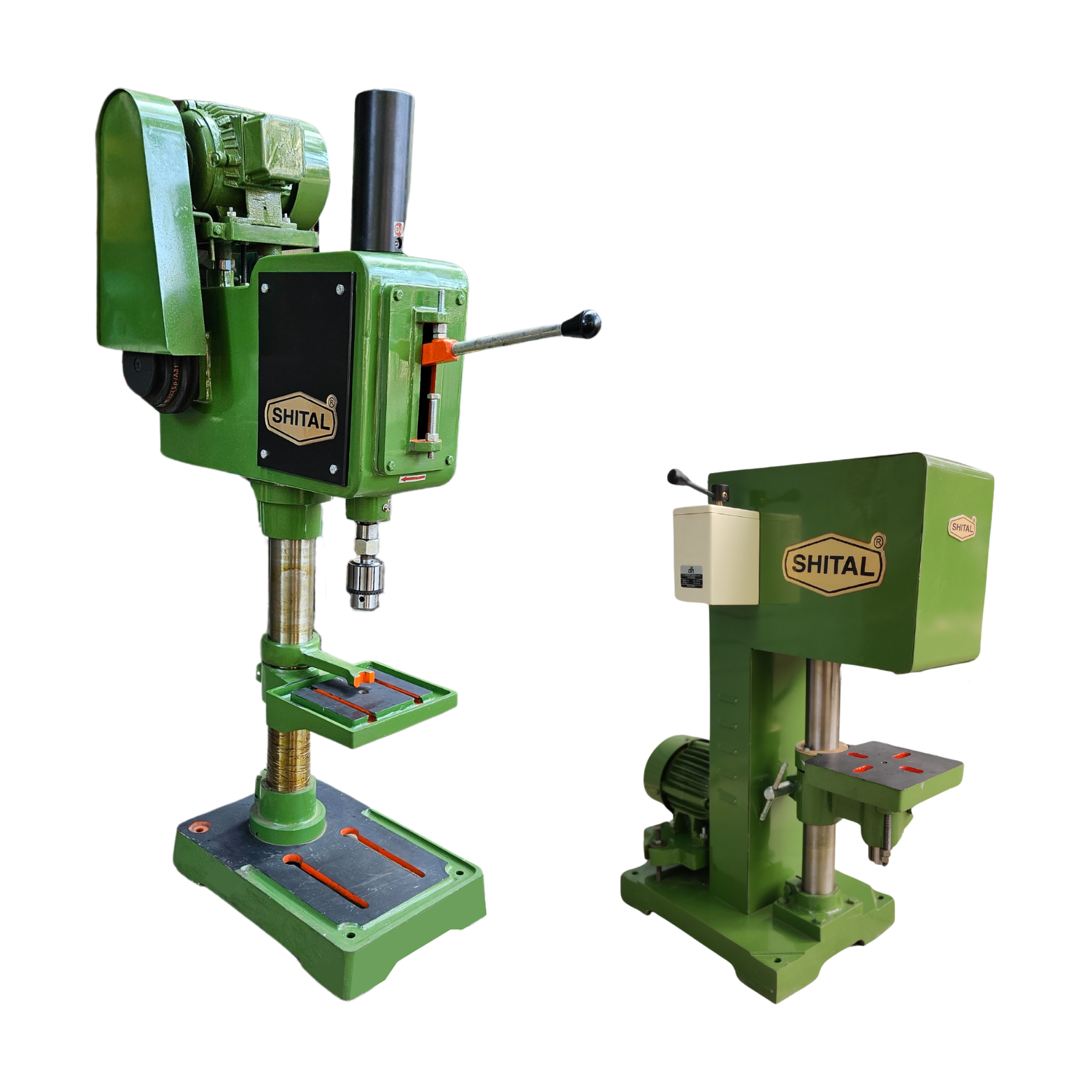

Tapping Machine
A pillar tapping machine is a precision threading device mounted on a pillar. It is designed to create internal threads in pre-drilled holes using a rotating tap.
- Silicone liner cone
- High grade Casting
- Spindle made from EN8
- Solid bracket table with GM Ring
Specification
| MODEL | 6 mm | 12 mm |
| Table Machine Capacity | 6 mm | 12 mm |
| Spindle Travel / Table Travel (6mm) | 60 mm | 75 mm |
| Distance Spindle to column | 80 mm | 140 mm |
| Distance between chuck to base | 190 mm | 450 mm |
| Distance between chuck to work table | movable | 380 mm |
| Size of base Plate- L x B | 370 x 250 mm | 480 x 350 mm |
| Size of Work Table- L x B | 150 x 150 mm | 190 x 220 mm |
| Diameter of column | 47 mm | 74 mm |
| Forwards Speeds Range | 480 / 750 / 1400 | 350 / 620 / 1100 |
| Reverse Speeds Range | 480 / 750 / 1401 | 420 / 745 / 1315 |
| No. of Spindle Speeds | 3 | 3 |
| Spindle Motor / Rpm | 0.5 HP / 1440 Rpm | 1 HP / 1440 Rpm |
| Overall Height | 650 mm | 1245 mm |
| Overall Width | 270 mm | 370 mm |
| Overall front to back | 540 mm | 600 mm |
| Electric Motor | 0.5 Hp / 1440 Rpm | 1 Hp / 1440 Rpm |
| Weight Approx | 50 kg | 120 kg |
Accessories
Standard Accessories
- Electric motor
- Drill chuck
- R/F Switch
- V-Belt
- Handle
- Motor Pulley
Optional Accessories
- Drill Vice
