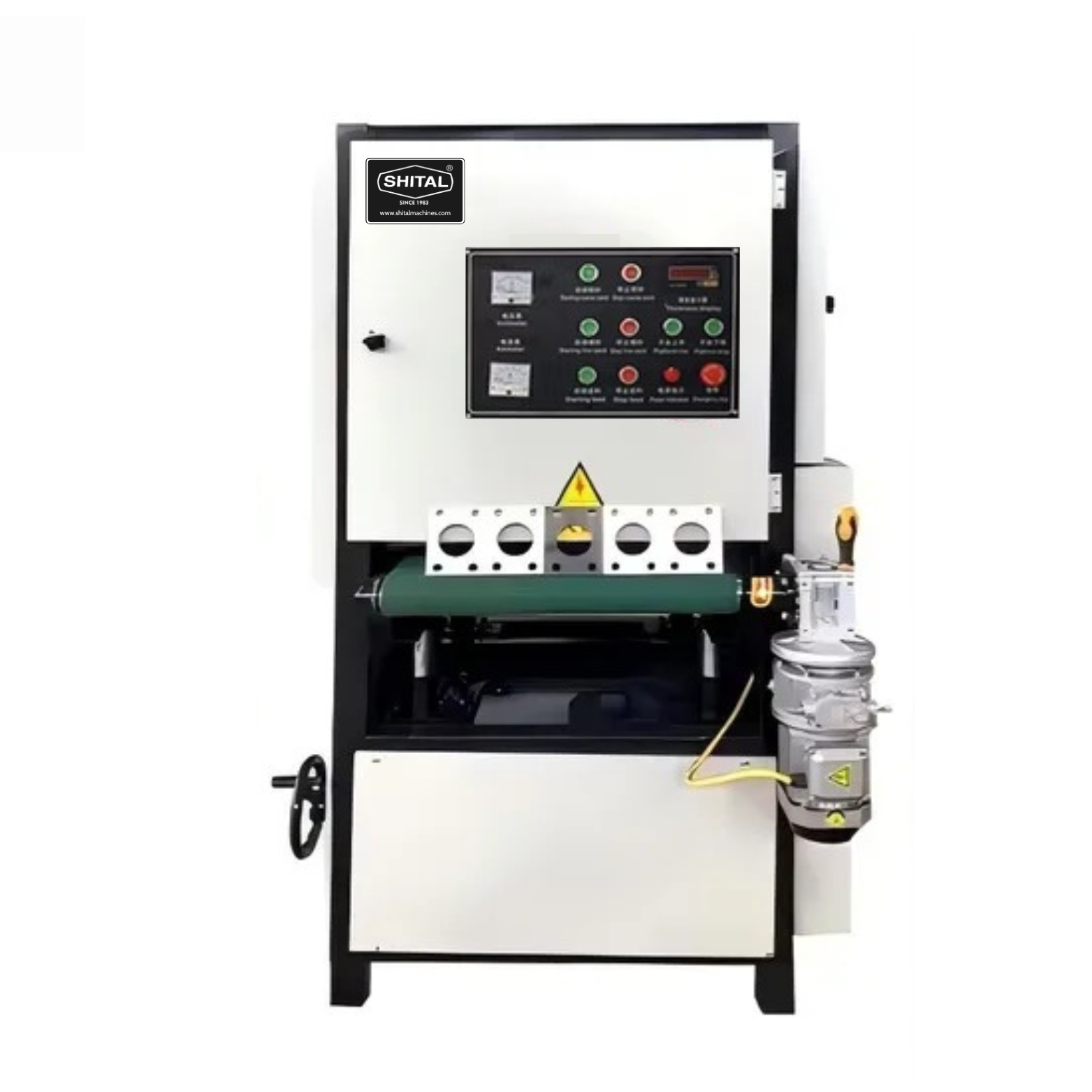

Flat Polishing Machine (Pneumatic)
A polishing machine used to achieve smooth, uniform finishes on flat surfaces, enhancing surface quality and consistency.
- Surface Polishing: Using different types of polishing tools (such as grinding wheels, felt wheels, cloth wheels, nylon wheels, etc.), various degrees of polishing can be applied to the workpiece, achieving a smooth and aesthetically pleasing finish.
- Surface Treatment: Cleaning metal surfaces before electroplating, removing oxides, rust, and other impurities, ensuring the effectiveness of subsequent electroplating processes.
- Precision Enhancement: Achieving specific flatness, parallelism, and surface finish through precise processing, commonly used for workpieces that require high surface quality.
- Multi-functional Polishing: Depending on the needs, different types of polishing tools can be selected for sanding, mirror polishing, or even brushing.
Specification
|
MODEL |
SH-400 |
SH-600 |
SH-800 |
SH-1000 |
|
Working Width |
380 mm |
580 mm |
780 mm |
980 mm |
|
Main Motor |
7.5 HP x 2 Nos |
10 HP + 7.5 HP |
10 HP x 2 Nos |
15 HP x 2 Nos |
|
Lifting Motor |
0.5 HP |
0.5 HP |
0.5 HP |
0.5 HP |
|
Feeding Motor |
0.5 HP |
1 HP |
1 HP |
1 HP |
|
Sanding Belt |
1580 x 380 mm |
1580 x 580 mm |
1580 x 780 mm |
1580 x 980 mm |
|
Conveyor Belt |
2640 x 380 mm |
2640 x 580 mm |
2640 x 780 mm |
2640 x 980 mm |
|
Working Thickness |
120 mm Max |
120 mm Max |
120 mm Max |
120 mm Max |
|
Machine Size |
1200 x 850 x 1820 mm |
1200 x 1050 x 1820 mm |
1200 x 1250 x 1820 mm |
1200 x 1450 x 1820 mm |
|
Weight |
350 Kgs |
490 Kgs |
600 Kgs |
750 Kgs |
Accessories
Standard Accessories
- Conveyor Drive Motor
- Abrasive Drive Motor 2 Nos
- Sanding Belt – 3 Nos
