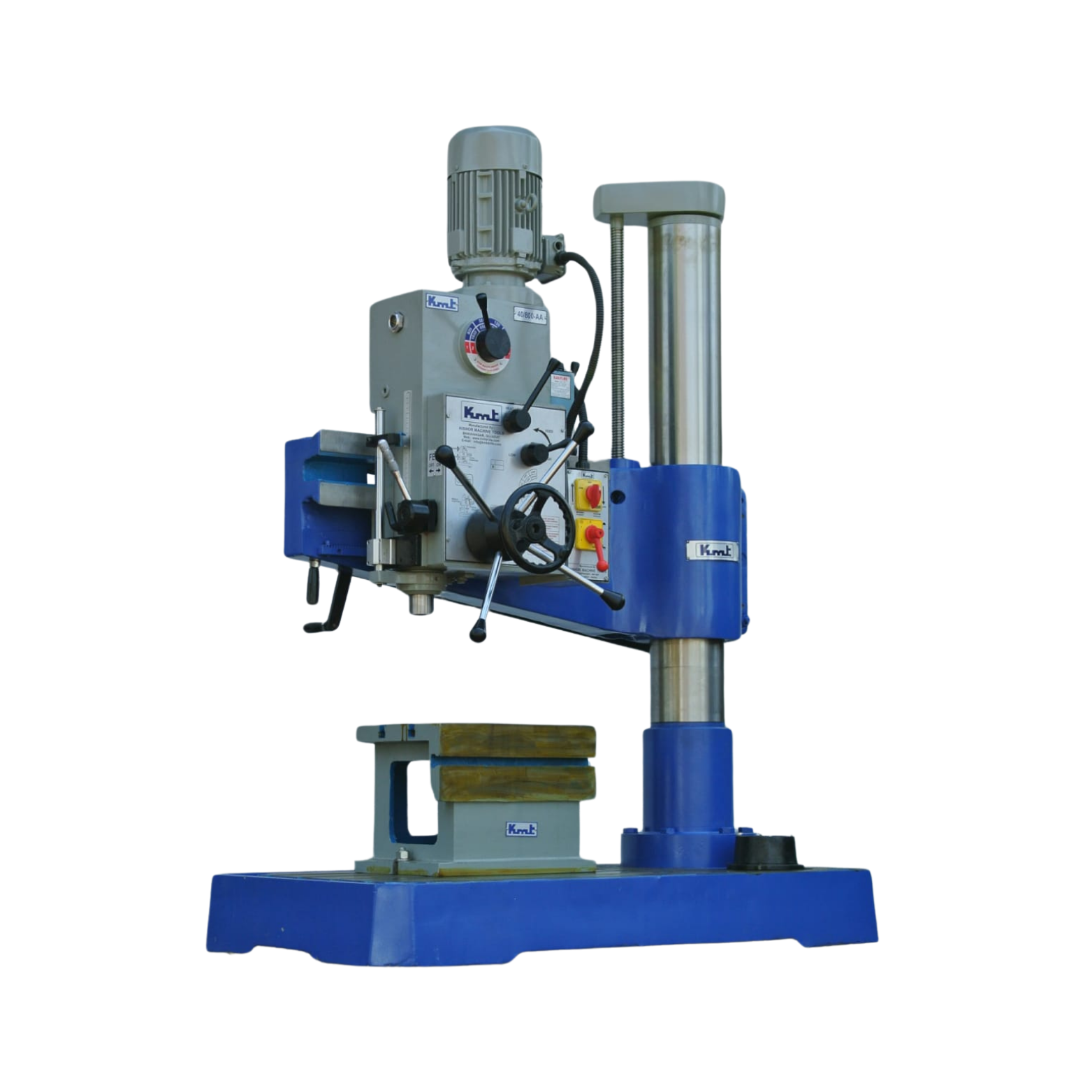

All Geared Radial Drill Machine

An All Geared Radial Drill Machine is a heavy-duty drilling machine Equipped with an all-geared mechanism for efficiency in drilling large and heavy workpieces.

Specification

MODEL 38/800 40/1000
Drilling (M.S) 38 mm 38 mm
Tapping (M.S) 16 mm 16 mm
Spindle Nose MT-4 MT-4
Travel of Spindle 180 180
No.of Spindle Speed 8 8
No.of power feeds 2 2
Range of power feeds 0.10 – 20 0.10 – 20
Drilling Head 1.5 Hp 1.5 Hp
Motor 1400 – 2800 Rpm 1400 – 2800 Rpm
Elevating Motor for Arm 0.50 Hp / 1440 Rpm 0.50 Hp / 1440 Rpm
Column Diameter 170 180
Dist from Spindle to Base 850 x 160 950 x 160
Dist from Column to Centre Min/Max 850 x 360 975 x 360
Drilling Head traverse 380 615
Drilling radius 875 1025
Traverse of Arm 875 875
Height of Base Plate 150 160
Working Surface 610 x 680  610 x 790
No.of T Sloth 4 4
Width of Cast Side 18 mm 18 mm
Overall Dimensions (L x W x H) 1300 x 900 x 1800 1400 x 900 x 1800
Approximate 900 kg  1100 kg

Accessories

Standard Accessories
  • Electric Motor (Head)
  • Electric Motor (Lifting)
  • V-Belts
  • R/F Switches
  • Drill Chuck
  • Arbour MT-4
  • Box Table (400 x 300 x 300) MM
  • Coolant pump
Optional Accessories
  • Drill Vice
