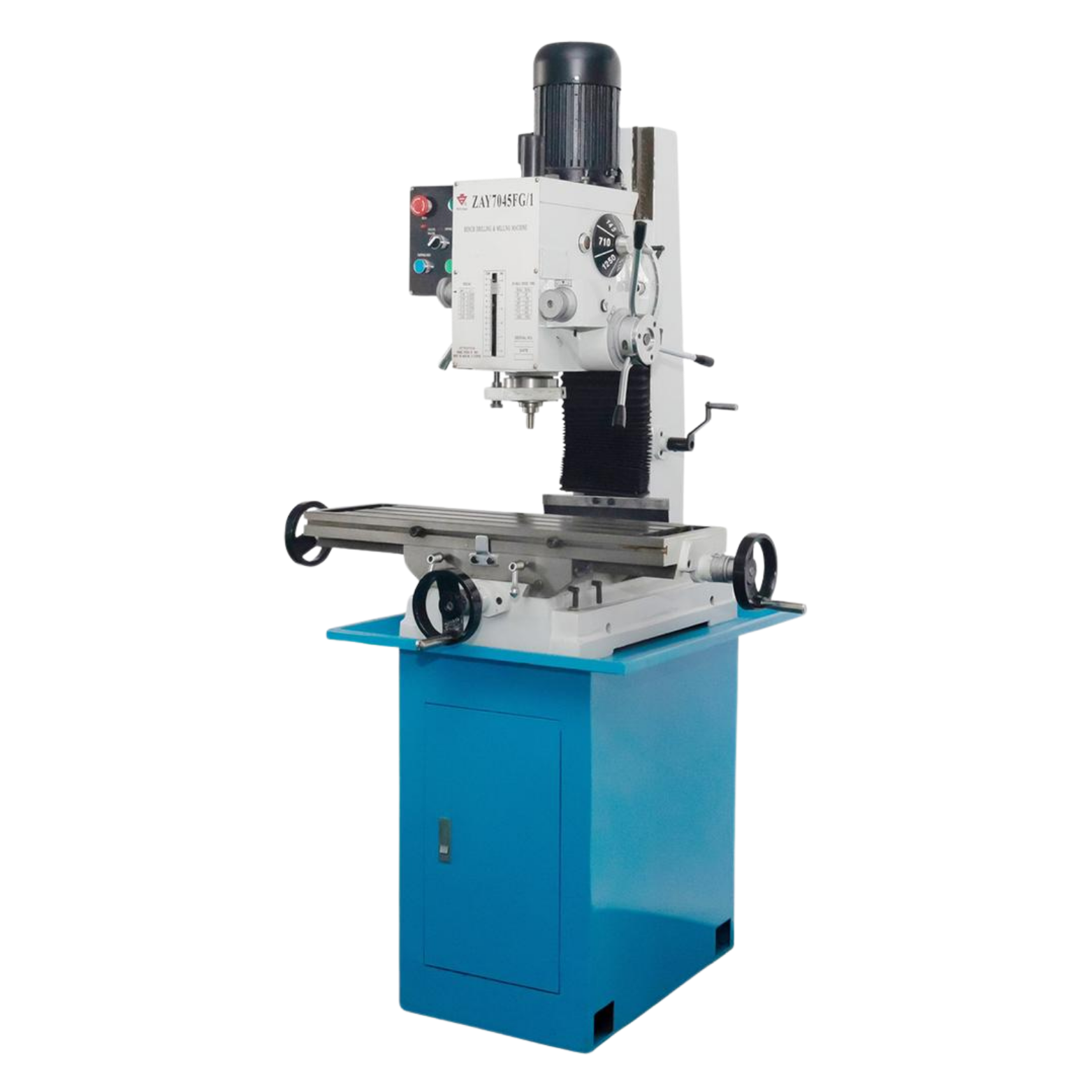

Drilling cum Milling
A drilling cum milling machine is a multifunctional machine enabling precise hole-making, slotting, and surface machining.
- Gears are precision ground.
- Variable Speed.
- Tapping in both Direction.
- Depth can be controlled
- Adjustable nuts are bronze.
Specification
| MODEL | ZAY7045FG/1 |
| Drilling Capacity | 45 mm |
| Boring Diameter | 70 mm |
| Face Milling Capacity | 80 mm |
| End Milling Capacity | 32 mm |
| Distance from Spindle to Nose | 450 mm |
| Min Distance from spindle axis to column | 260 mm |
| Spindle Travel | 130 mm |
| Spindle Taper | MT-4 |
| Step of Spindle Speed | 6 |
| Range of Spindle Speed 50Hz | 80 – 1250 Rpm |
| 60Hz | 95 – 1500 Rpm |
| Auto feeding step of Spindle | 6 |
| Auto feeding amount of Spindle | 0.06 – 0.30 mm/r |
| Swivel Angle of headstock (Horizontally) | 90° |
| Automatic lifting of Spindle (As customer requirement) | 240 mm / min |
| Table Size | 800 x 240 mm |
| Forward and backward travel of table | 500mm (700m) |
| Motor Power | 2Hp / 1.5Kw |
| Net Weight / Gross Weight | 325 kgs / 365 kgs |
| Packing Size (LxWxH) | 770 x 880 x 1160 mm |
Accessories
Standard Accessories
- Drill chuck
- Auto-Tapping Electrical
- Coolant System
- Machine Lamp
- Machine Stand & Chip Tray
Optional Accessories
- Milling Adaptor
- Milling Collet (1 Pc)
- Spanner
- DRO
- Milling Vice
- Power Feed
Enquiry on Email
Ready to Elevate Your Productivity?
Discover high-quality, precision-engineered machines designed to enhance your workflow and efficiency.
Tailored solutions for your unique industrial needs.
Trusted by Professionals
Related Products

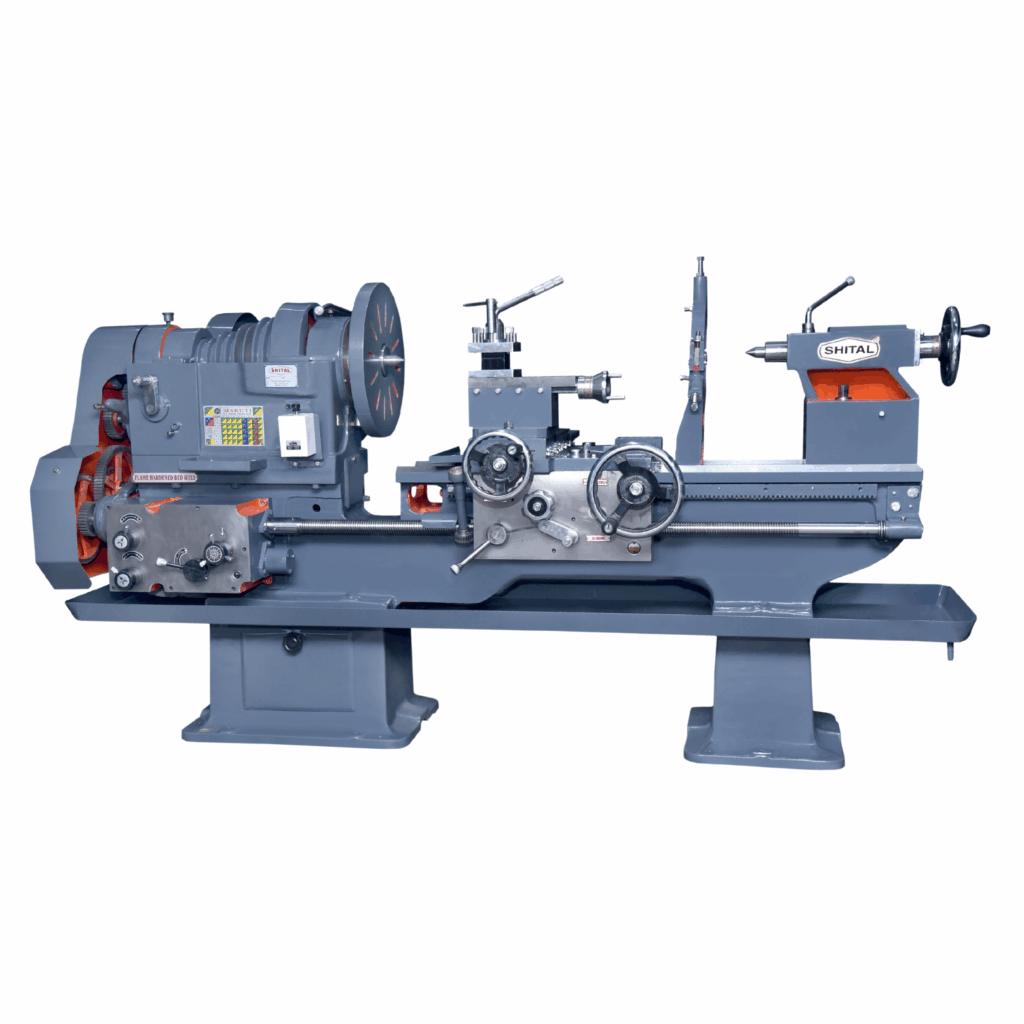

Heavy Duty Lathe Machine
