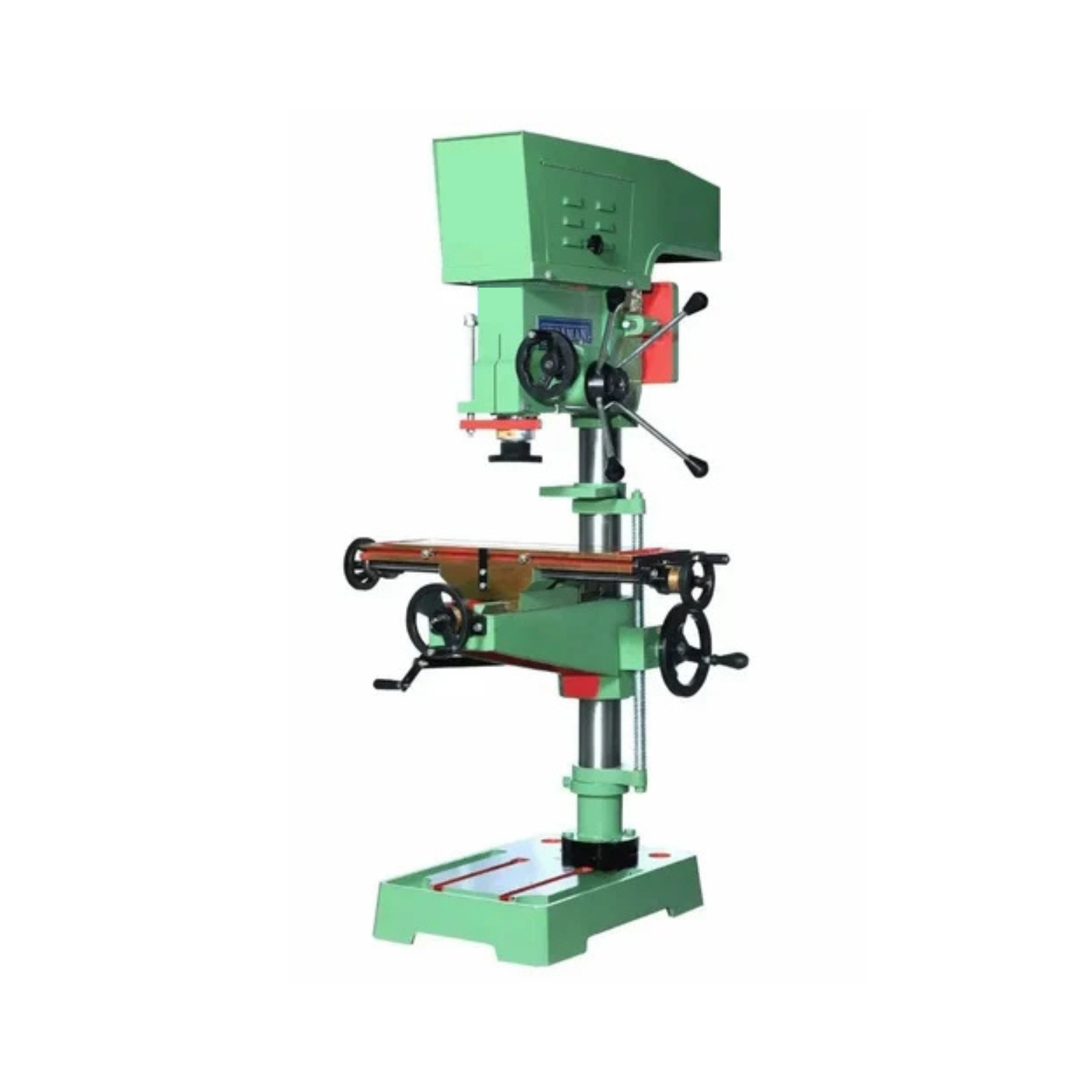

Pillar Drilling Cum Milling Machine

A pillar drilling cum milling machine is a versatile machining tool that combines drilling and milling capabilities in a single unit.

Specification

MODEL 25 mm
Drilling Capacity  25 mm
Column Diameter 92 mm
Spindle nose to Table Distance 650 mm
Max Dist from Spindle to Base Plate 1060 mm
Dist. From Spindle to Column 250 mm
Cross Travel 350 mm
Longitudinal Travel 200 mm
Tapper Spindle MT-4
No. Range of Spindle 8
Table Size 200 x 600 mm
Base Size 365 x 580 mm
Spindle Travel 180 mm
No. of ‘T’ Slots 2
Pillar Length 1410 mm
Drilling Motor 1 Hp
Weight Approximate 280 kg

Accessories

Standard Accessories
  • Electric Motor
  • Motor Pulley
  • V-Belt
  • R/F Switch
  • Drill Chuck 1/2″
  • Arbour
Optional Accessories
  • Drill Vice
