All Geared Vertical Milling Machine

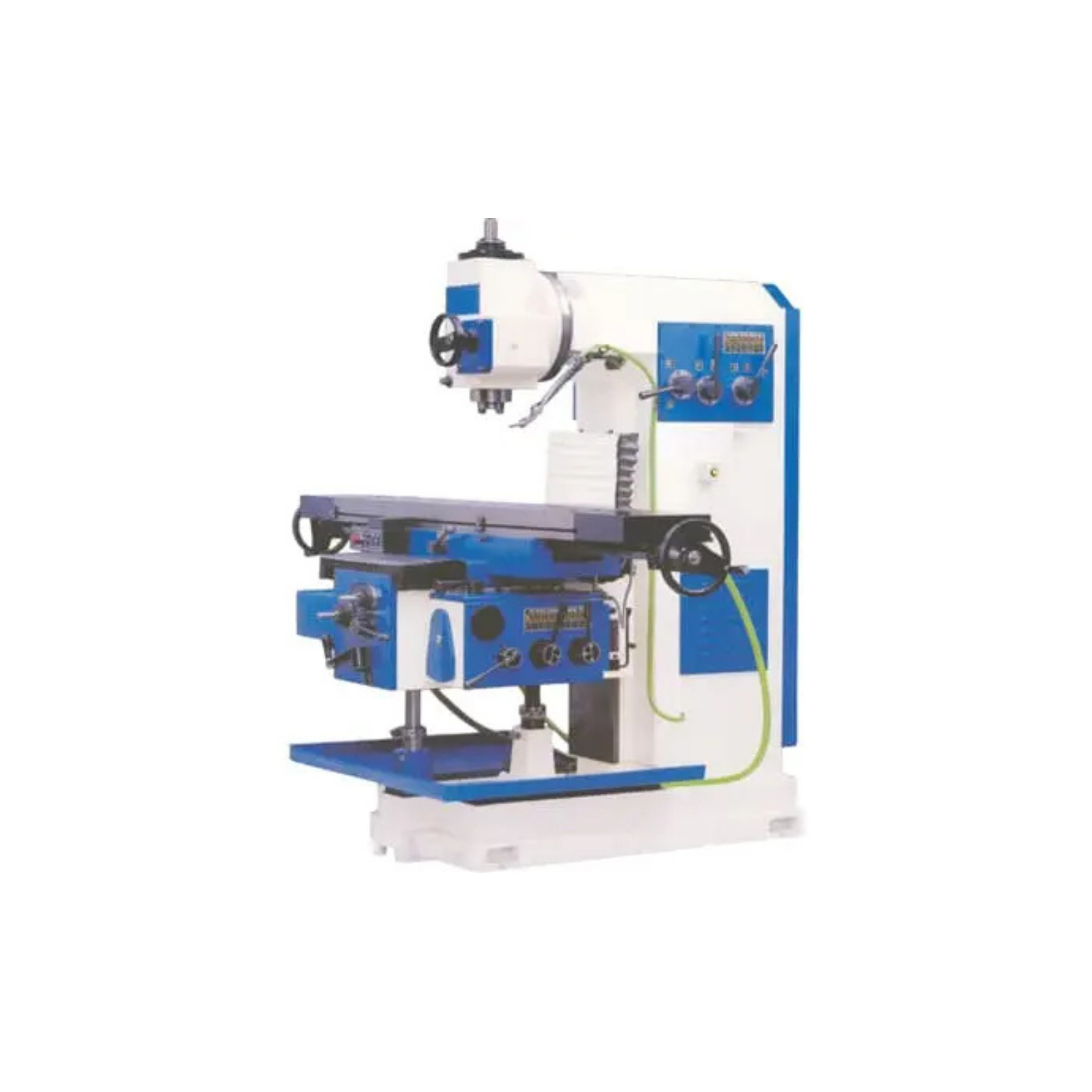

All geared vertical milling machine is a robust machine with a vertically oriented spindle driven by a gear mechanism.
- High Quality Close grained Cast Iron All Slides Grinded on Slide way Grinder and closely scraped.
- Steel Sliding gears carried on Splined shafts, Spindle and Arbor made of alloy steel hardened and ground.
Specification
| TABLE |
| MODEL | SM 2VAG | SM 3VAG | SM 4VAG | SM 5VAG | SM 6VAG |
| Working Surface | 1300×300 | 1400×330 | 1600×350 | 1800×400 | 2000×450 |
| No. & Width of T Nut | 3.16 | 3.22 T NUT | 3.22 T NUT | 3.22 T NUT | 3.22 T NUT |
| Centre Distance Between T Slot | 70 | 80 | 85 | 90 | 95 |
| Longitudinal Travel-X | 700 | 800 | 1000 | 1200 | 1300 |
| Cross Travel-Y | 215 | 260 | 340 | 380 | 450 |
| Vertical Travel-Z | 450 | 510 | 600 | 650 | 700 |
| Min. Distance From Left Hand Table End to Spindle Center | 250 | 300 | 350 | 400 | 450 |
| MILLING SPINDLE |
| MODEL | SM 2VAG | SM 3 VAG | SM 4 VAG | SM 5VAG | SM 6 VAG |
| No. of Speeds | 12 | 12 | 12 | 12 | 12 |
| Speed Range (RPM) | 40-1200 | 40-1200 | 40-1200 | 40-1200 | 40-1200 |
| Spindle Nose | ISO-40 | ISO-40 | ISO-40 | ISO-50 | ISO-50 |
| Min/ Max. Distance, Centre MillingSpindle/ Lower Face of Milling Spindle to Table Top Surface | 40-450 | 0-510 | 0-600 | 0-650 | 0-700 |
| Distance Spindle Centre to Column | 320 | 350 | 370 | 400 | 500 |
| Face Vertical Movement of Quill | 75 | 95 | 95 | 100 | 100 |
| Swivel of Milling Head On Either Side | 45° | 45° | 45° | 45° | 45° |
| FEEDS |
| MODEL | SM 2VAG | SM 3VAG | SM 5VAG | SM 6VAG | SM 7VAG |
| Feed Range : Long & Cross | 18 | 18 | 18 | 18 | 18 |
| Vertical | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Rapid Traverse : Long Cross | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| Vertical | 1050 175 | 1050 175 | 1050 175 | 1050 175 | 1050 175 |
| POWER |
| MODEL | SM 2VAG | SM 3VAG | SM 5VAG | SM 6VAG | SM 7VAG |
| Main Motor (H.P) | 3 | 5 | 7.5 | 10 | 12 |
| Feed Motor (H.P) | 2 | 2 | 3 | 3 | 3 |
| Coolant Motor (H.P) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
Accessories
Standard Accessories
- Main Drive Electric Motor
- Feed Gear Box Electric Motor
- Coolant System
- V-Belts]
- Control Panel
Optional Accessories
- Slotting Attachment
- Rack Cutting Attachment
- Dividing Head
- Rotary Table
- Milling Machine Vice
- Machine Lamp
- DRO
- Boring Head
- Collet
- Collet Adaptor.
