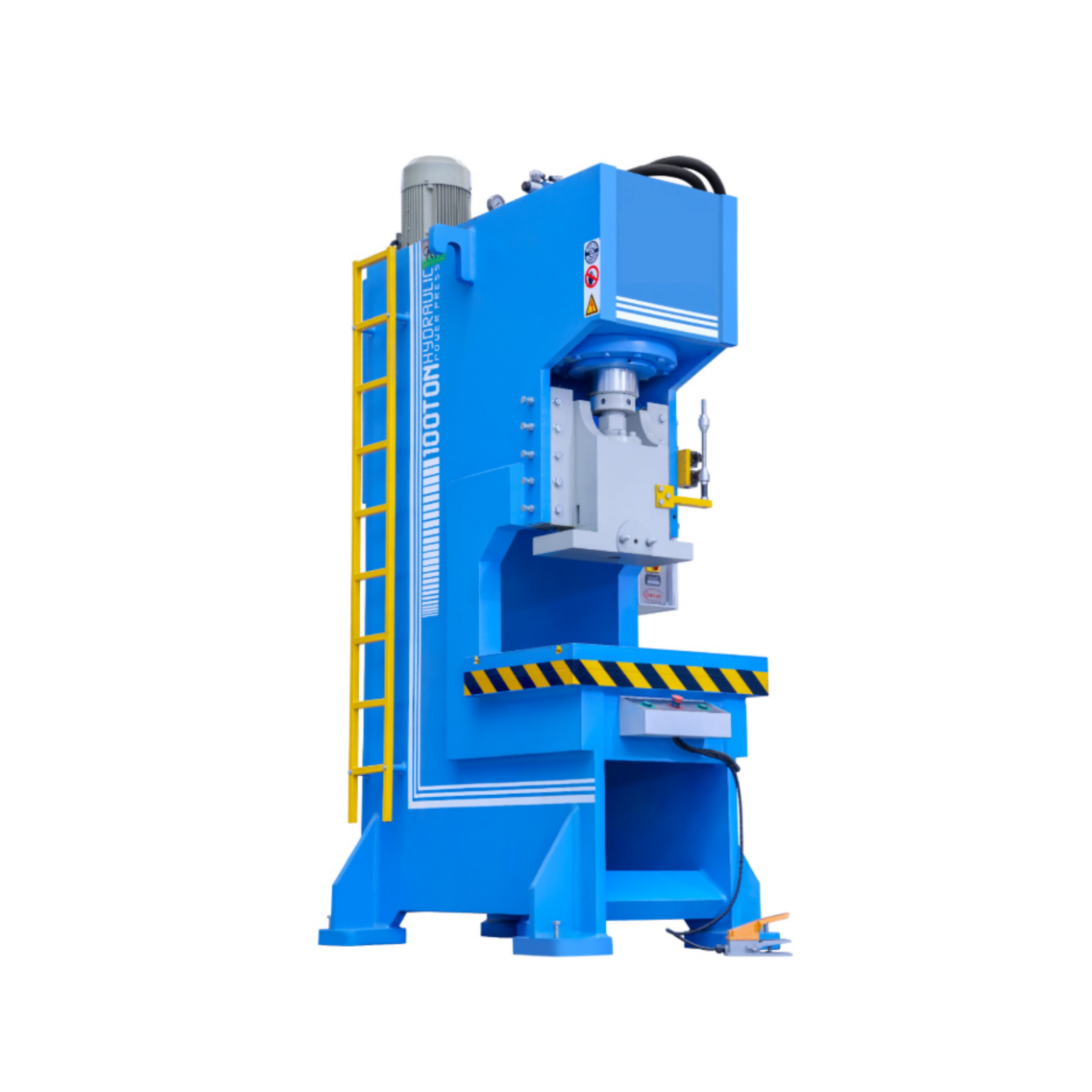

C Type Hydraulic Press Machine
A C-type hydraulic press is a compact, C-frame structured machine used for various forming operations such as punching, bending, and pressing.
-
C-Frame Design: Open-front structure allows easy access for loading and unloading workpieces.
-
Hydraulic Operation: Provides smooth, powerful, and controlled pressing action with consistent force.
-
Compact and Space-Saving: Ideal for workshops with limited space while maintaining functionality.
-
Precision Control: Equipped with pressure and stroke adjustment for accurate operation.
-
Durable Construction: Made with high-quality materials for long service life and reliable performance.
Specification
| MACHINE CAPACITY (TON) | TABLE SIZE (LR x FB) | THROAT DEPTH | HOLE IN RAM | HOLE IN BED | DAYLIGHT GAP | STROKE LENGTH | SHUT HEIGHT | WORKING HEIGHT | ROD DIA. | MOTOR H.P. | OIL TANK |
| 3 | 254 x 152 | 76 | 19 | 51 | 150 | 50 | 110 | 650 | 35 | 1 | 40 |
| 5 | 305 x 178 | 90 | 25 | 63 | 153 | 50 | 78 | 700 | 40 | 1.5 | 40 |
| 10 | 406 x 254 | 127 | 25 | 76 | 204 | 75 | 129 | 850 | 50 | 2 | 120 |
| 20 | 508 x 305 | 152 | 32 | 83 | 254 | 100 | 154 | 850 | 70 | 3 | 120 |
| 30 | 558 x 355 | 177 | 32 | 100 | 280 | 100 | 180 | 850 | 80 | 3 | 150 |
| 50 | 660 x 406 | 215 | 44 | 127 | 332 | 100 | 232 | 875 | 100 | 5 | 200 |
| 60 | 660 x 430 | 215 | 50 | 125 | 355 | 125 | 230 | 875 | 120 | 7.5 | 250 |
| 80 | 762 x 508 | 254 | 50 | 130 | 380 | 150 | 230 | 900 | 135 | 7.5 | 300 |
| 100 | 813 x 584 | 292 | 51 | 191 | 400 | 150 | 250 | 900 | 150 | 10 | 400 |
| 150 | 915 x 610 | 305 | 57 | 203 | 400 | 200 | 200 | 950 | 200 | 15 | 400 |
| 200 | 965 x 660 | 330 | 57 | 216 | 500 | 200 | 300 | 950 | 250 | 15 | 500 |
