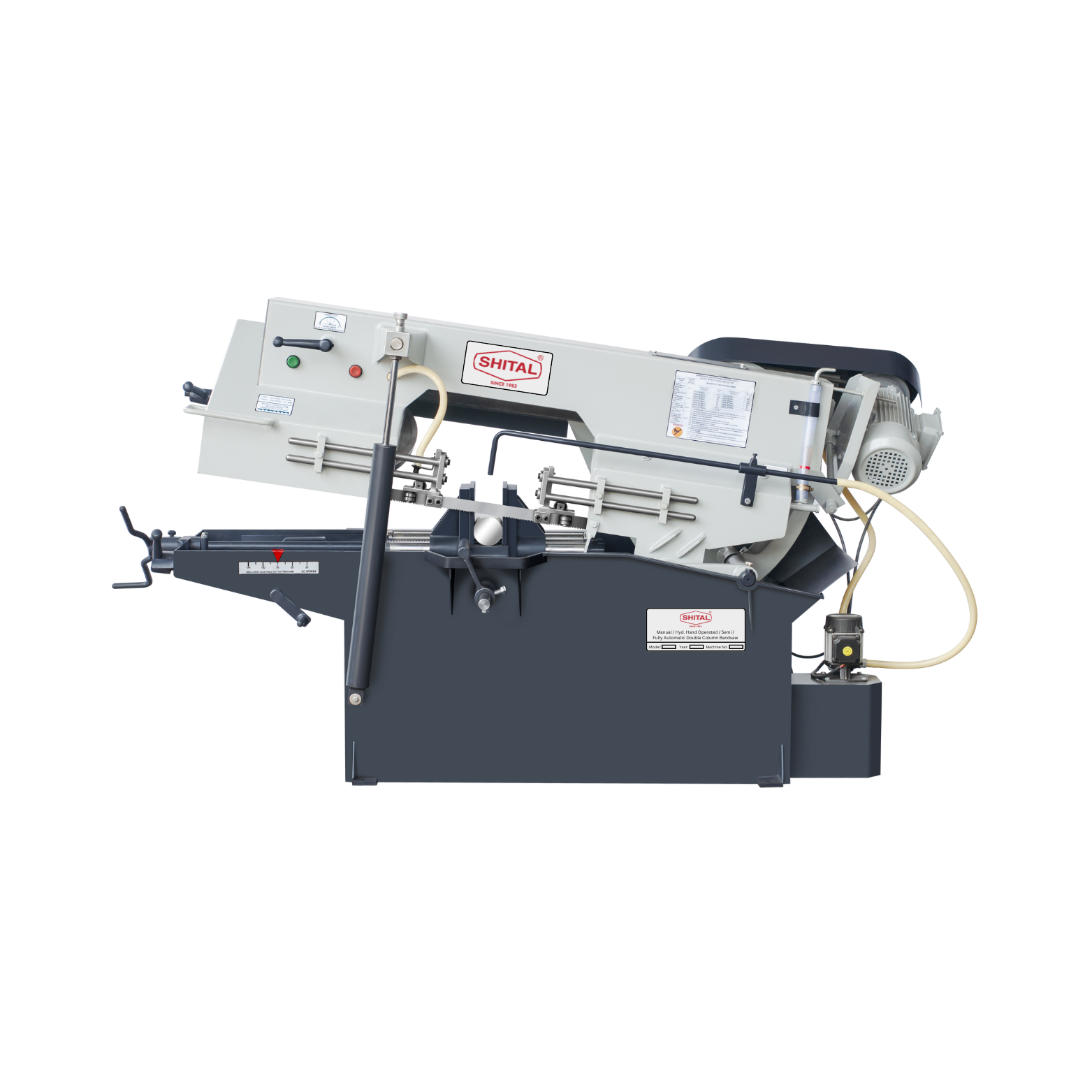

Manual Bandsaw Machine
This is a manually operated metal-cutting machine, ideal for straight cutting of pipes, bars, and structural materials.
- Adjustable cutting feed control valve.
- Adjustable cutting pressure regulator.
- Chip removing wire brush for longer blade life.
- Chip collecting trey for easy cleaning.
- Improved blade guide mechanism.
Specification
| MODEL | SH-1HS | SH-2HS | SH-3HS | SH-4HS | SH-5HS | SH-6HS | SH-7HS |
| Round | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Square | 175 x 175 | 225 x 225 | 275 x 275 | 325 x 325 | 375 x 375 | 425 x 425 | 475 x 475 |
| Blade Dimensions | 3000 x 27 x 0.9 | 3300 x 27 x 0.9 | 3760 x 34 x 1.1 | 4100 x 34 x 1.1 | 4420 x 34 x 1.1 | 4570 x 34 x 1.1 | 4600 x 34 x 1.1 |
| Saw Drive Motor | 1 Hp | 1.5 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 3 Hp |
| Coolant pump | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp |
| Blade speed | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 | 20 – 35 – 55 – 75 |
| Dimensions in Mtr (L x W x H) | 1.7 x 0.75 x 0.9 | 2 x 0.75 x 1 | 2.4 x 0.9 x 1 | 2.5 x 0.9 x 1.1 | 2.65 x 0.95 x 1.2 | 2.75 x 0.95 x 1.2 | 3 x 0.9 x 1.4 |
| Net Weight (Kg) | 320 | 370 | 770 | 820 | 900 | 990 | 1100 |
Accessories
Standard Accessories
- Electric Motor and Coolant pump
- On-Off contractor with push buttons
- Pulley and V-Belt
- Job Stopper
- Hydraulic cylinder
- Wire Brush
- Roller bearings
Optional Accessories
- BI-Metal bandsaw blade
- Mechanical job feeder unit
- Swivel Vice assembly for angular cutting
- Job roller stand
