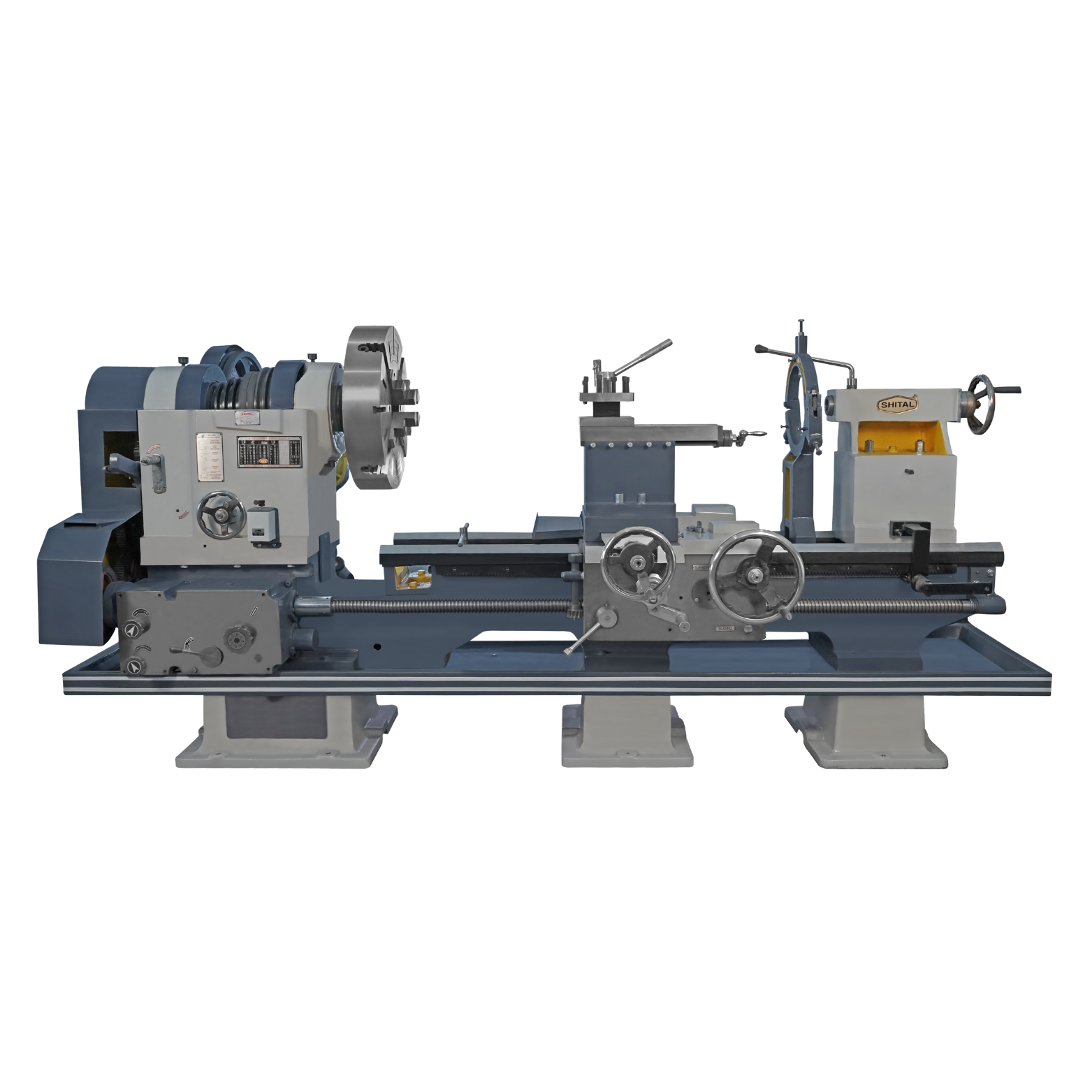

Extra Heavy Duty Lathe Machine
This Machine is a heavy duty and powerful, engineered for machining exceptionally large and heavy workpieces.
- Latest design Head Stock
- High Tensile Casting
- Flame Hardened Bed Ways
- Tailstock Spindle EN-8 Harden
- SKF or Timken make Bearing (only 50mm bore)
Specification
| MODEL | EHD-1 | EHD-2 | EH-3 |
| Width of Bed | 18″ | 20″ | 22″ |
| Length of Gap | 150 mm | 150 mm | 150 mm |
| Height of Centre | 18″ | 20″ | 22″ |
| Swing Over Bed | 850 mm | 950 mm | 1050 mm |
| Swing Over Cross Slide | 600 mm | 685 mm | 785 mm |
| Swing In Gap | 1160 mm | 1270 mm | 1360 mm |
| Movement of Cross Slide | 400 mm | 500 mm | 550 mm |
| Movement of Compound Slide | 225 mm | 225 mm | 225 mm |
| Spindle Bore | 80 mm | 104 mm | 104 mm |
| Taper Bore | MT-6 | MT-6 | MT-6 |
| Tail Stock Spindle Diameter | 76 mm | 100 mm | 100 mm |
| Tail Stock Spindle Taper | MT-5 | MT-5 | MT-5 |
| Tail Stock Spindle Travel | 260 mm | 260 mm | 300 mm |
| Number of Spindle Speed | 8 | 8 | 8 |
| Spindle Speed (RPM) | 20 to 200 | 20 to 200 | 20 to 200 |
| Metric Thread | 1 to 6 mm | 1 to 6 mm | 1 to 6 mm |
| Inch Thread | 1 to 24 TPI | 1 to 24 TPI | 1 to 24 TPI |
| Lead Screw Dia | 50.8 mm / 2 TPI | 50.8 mm / 2 TPI | 50.8 mm / 2 TPI |
| Motor | 7.5 Hp | 7.5 Hp | 7.5 Hp |
| MODEL: EHD-1, EHD-2, EHD-3 |
| Length of Bed | 7′ | 9′ | 10′ | 12′ | 14′ | 16′ | 18′ | 20′ |
| Admin Between Centre | 700 mm | 1300 mm | 1600 mm | 2200 mm | 2800 mm | 3400 mm | 4000 mm | 4600 mm |
Accessories
Standard Accessories
- Change Gear Set
- Chuck Plate
- Spindle Sleeve
- Centre Adaptor
- Dead Centre
- Tool Post Key
- Motor Pulley
Optional Accessories
- Electric Motor
- V-Belt & R/F Switch
- Norton Gear Box
- True chuck
- Dog chuck
- Steady rest
- Follow Rest
- Face Plate
- Taper Turning Attachment
- Rear Tool Post
- Coolant Assembly
