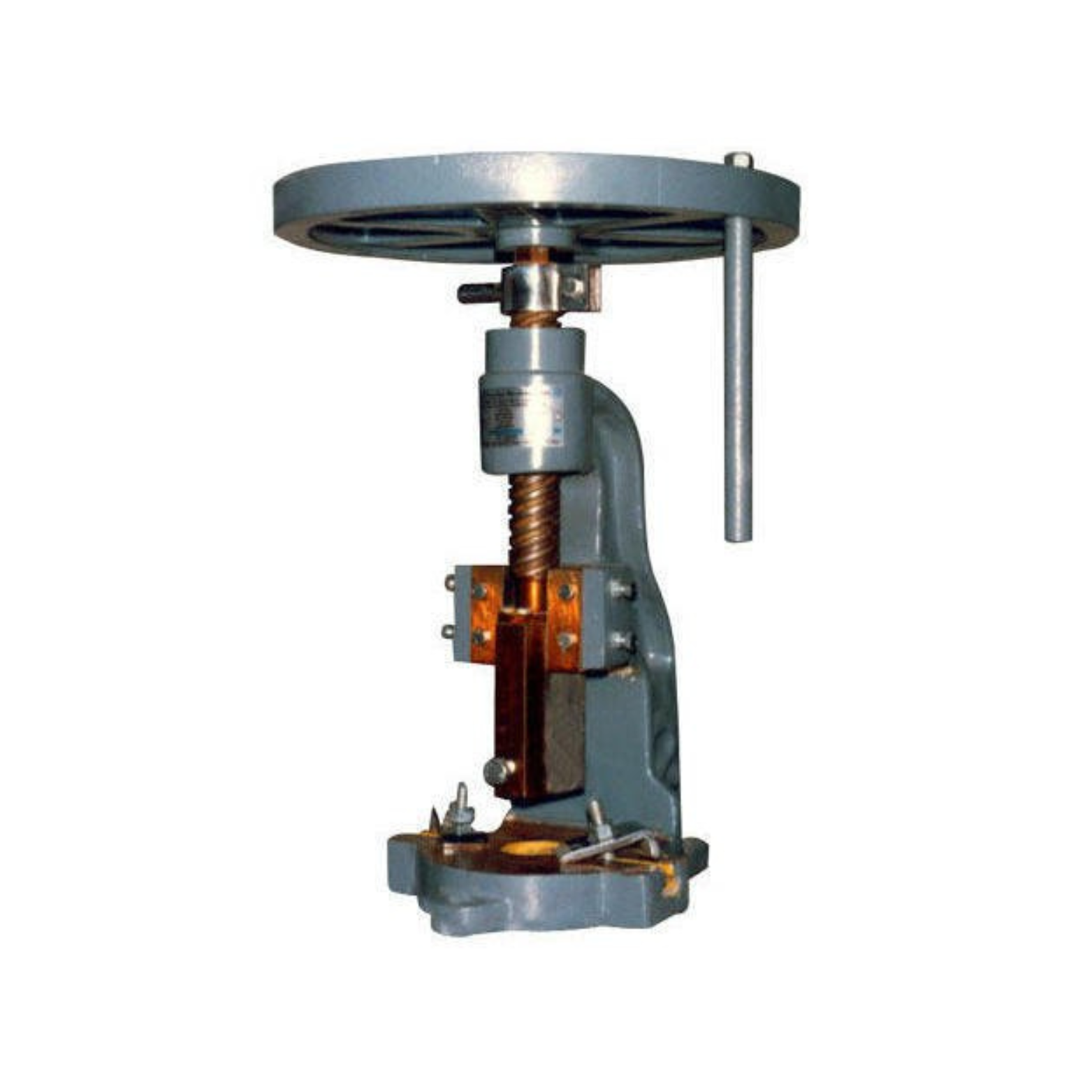

C Type Hand Press
Hand press is a manually operated machine used for light-duty metalworking tasks like punching or bending.
Specification
| SIZE OF PRESS | 1 | 2 | 3 | 4 | 5 | 6 |
| Centre to Back | 4″ | 4 3/4″ | 4 3/4″ | 5 3/4″ | 6 1/2″ | 7 3/4″ |
| Base to Guide | 6″ | 6 1/2″ | 6 3/4″ | 7 3/4″ | 8 3/4″ | 9 1/4″ |
| Diameter of screw | 1 5/8″ | 1 7/8″ | 1 7/8″ | 2 1/8″ | 2 1/8″ | 2 3/6″ |
| Hole of Ram | 1″ | 1″ | 1″ | 1″ | 1 1/4″ | 1 1/4″ |
| Diameter of Wheel | 16″ | 18″ | 20″ | 22″ | 24″ | 26″ |
| Hole of Base | 2″ | 2 1/2″ | 3″ | 3 1/2″ | 4″ | 4″ |
| Breadth | 10 3/4″ | 11 1/4″ | 13″ | 16″ | 18 1/4″ | 19 1/4″ |
Accessories
Standard Accessories
- Wheel
- Clamp
Enquiry on Email
