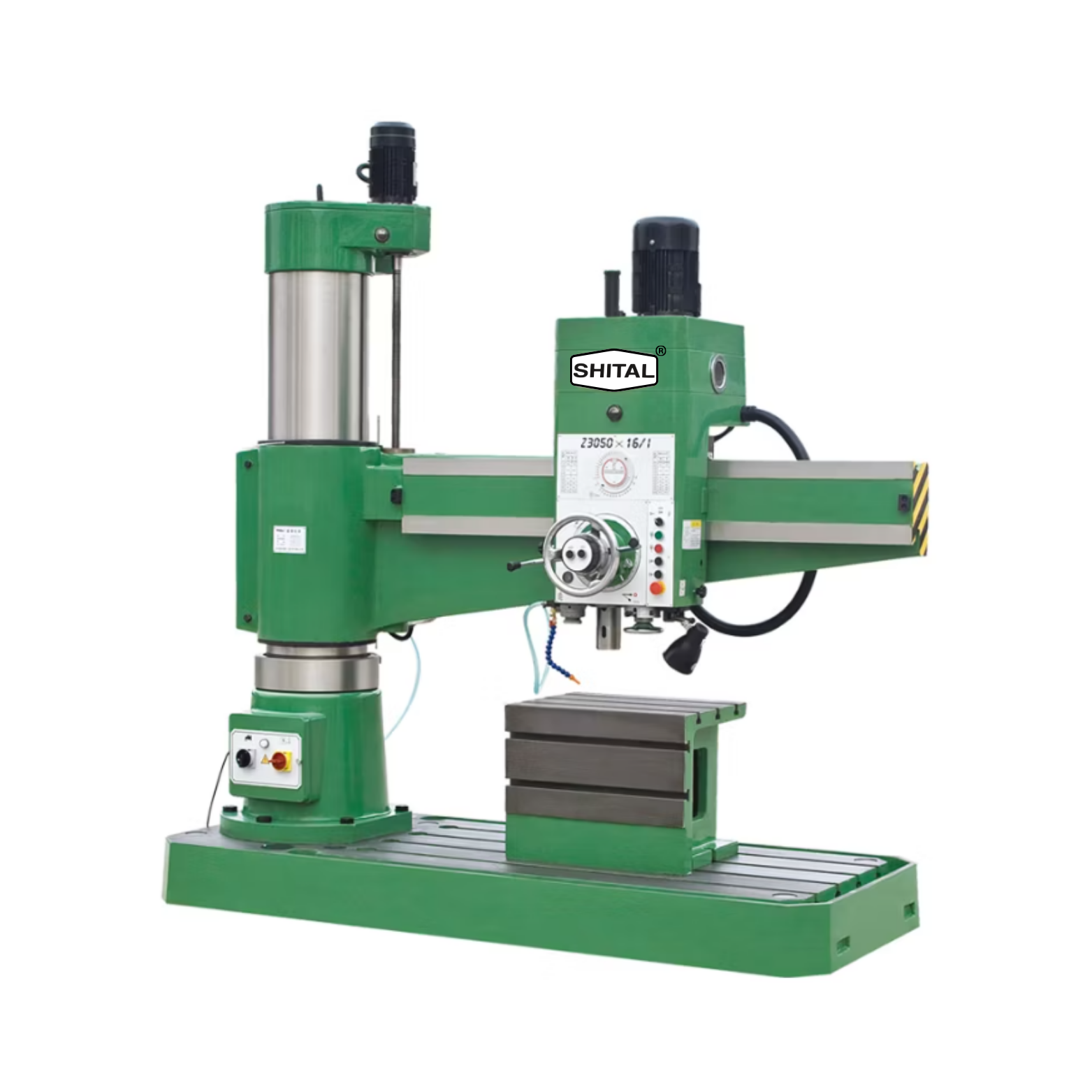

Z- Series All Geared Radial Drill Machine
This machine is equipped with an all-geared drive and radial arm, it enables precise and efficient drilling on large and heavy workpieces.
-
All-Geared Drive Head: Ensures smooth power transmission and easy speed adjustments for various drilling operations.
-
360° Rotating Radial Arm: Allows flexible positioning and access to large or irregular workpieces.
-
Heavy-Duty Construction: Rigid body and base provide stability and vibration-free operation.
-
Precision Ground Column and Arm: Ensures accurate alignment and consistent performance.
-
Automatic Lifting Mechanism: Motorized arm elevation for effortless height adjustments.
-
Multiple Spindle Speeds and Feeds: Adaptable to different materials and job requirements.
Specification
| MODEL | Z3050x16 | Z3063x16 | Z3063x20 | Z3080x25 | Z30100x31 | Z30132X42 |
| Drilling Capacity in Steel | 50mm | 63mm | 63mm | 80mm | 100mm | 132mm |
| Drilling Capacity in Cast Iron | 60mm | 75mm | 75mm | 90mm | 110mm | 140mm |
| Tapping Capacity | M36 | M42 | M42 | M48 | M52 | M56 |
| Taper in Spindle | MT-5 | MT-5 | MT-5 | MT-6 | MT-6 | Metric- 80 |
| Spindle Travel | 315mm | 400mm | 400mm | 450mm | 500mm | 560mm |
| Number of Spindle Speed | 16 | 16 | 16 | 16 | 22 | 22 |
| Range of Spindle Speed | 25-2000rpm | 20-1600rpm | 20-1600rpm | 16-1250rpm | 8-1000rpm | 6.3-800rpm |
| Number of Spindle Auto Feed | 16 | 16 | 16 | 16 | 16 | 16 |
| Range of Spindle Auto Feed | 0.04-3.20mm/rev | 0.04-3.20 mm/rev | 0.04-3.20mm/rev. | 0.04-3.20mm/rev. | 0.06-3.20mm/rev. | 0.06-3.20mm/rev. |
| Arm Length | 1600mm | 1600mm | 2000mm | 2500mm | 3100mm | 4200mm |
| Travel of Drill Head | 1250mm | 1200mm | 1550mm | 2000mm | 2550mm | 3600mm |
| Drilling Radius Min/Max. | 525/1775mm | 525/1775mm | 675/2275mm | 775/2775 mm | 875/3375 mm | 995/4475 mm |
| Distance between Spindle Axis and Column Min/Max. | 350/1600mm | 400/1550mm | 450/2000mm | 530/2530mm | 570/3150mm | 400/4200mm |
| Distance between Spindle and Base Plate Min/Max. | 370/1270mm | 425/1200mm | 450/1650mm | 600/2050mm | 750/2500mm | 750/2560mm |
| Diameter of Column | 350mm | 350mm | 450mm | 550mm | 650mm | 750mm |
| Box Table Size | 500x630mm | 500x630mm | 630x800mm | 750x1000mm | 800x1250mm | 850x1350mm |
| Power Supply of Main Motor | 4lkW | 5.5kW | 5.5kW | 7.5 kW | 15 kW | 18.5kW |
| Power Supply of Elevating Motor | 1.5kW | 1.5kW | 1.5kW | 3kW | 3kW | 3kW |
| Overall Dimension (LxWxH) | 2500x1070x2880mm | 2550x1100x2880mm | 3080x1250x3245mm | 3730x1400x3835mm | 4650x1630x4525mm | 6075x2000x4850mm |
| Net Weight | 3500Kg. | 3800Kg. | 7300Kg. | 10500Kg. | 20000 Kg. | 29000Kg. |
