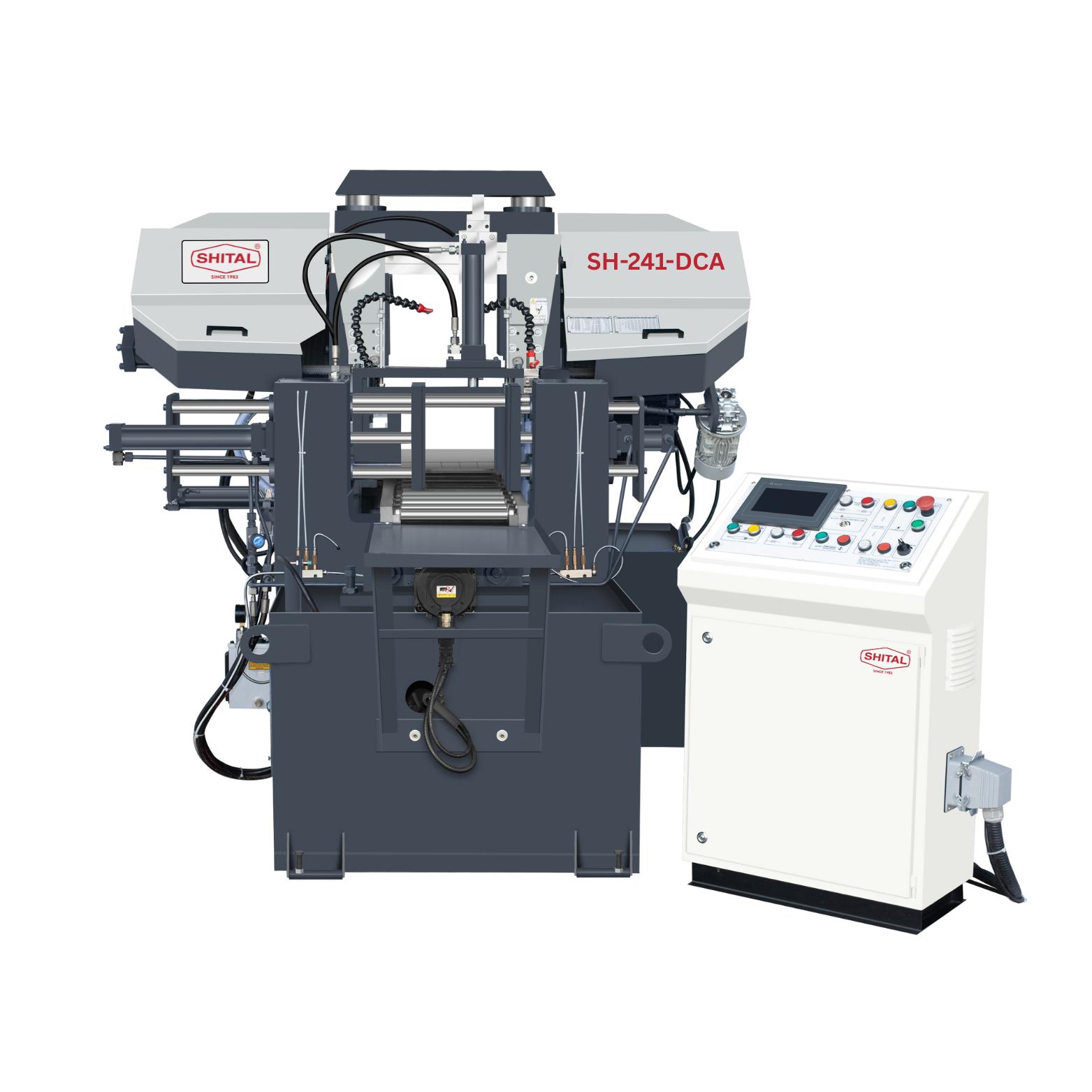

Automatic Bandsaw Machine
It performs all operations such as material feeding, clamping, cutting, and blade return without manual intervention.
- Single acting hydraulic cylinder for front vice.
- Double acting hydraulic cylinder for rear vice.
- Power driven wire brush for continue cleaning bi-metal blade.
- Automatic working height control device & fast approach.
- Hydraulic blade tension.
- PLC control for all electric & hydraulic functions.
- Shuttle type automatic job length feeding.
- Automatic work height control & fast approach save idle time.
- Automatic oil lubrication system.
- Infinitely variables speed control by A.C. frequency drive.
Specification
| MODEL | SH-241 DCA | SH-331 DCA | SH-431 DC |
| Capacity Round | 240 mm | 330 mm | 430 mm |
| Blade Dimensions (mm) | 3760 x 27 x 0.9 | 4100 x 34 x 1.03 | 5200 x 41 x 1.3 |
| Blade Speed meter/min | 20 – 80 VFD | 20 – 80 VFD | 20 – 80 VFD |
| Drive motor (440V, 3 Ph) | 3 Hp, 1440 RPM | 3 Hp, 1440 RPM | 5 Hp, 1440 RPM |
| Hydraulic drive (440V, 3 Ph) | 1 Hp, 1440 RPM | 1 Hp, 1440 RPM | 1.5 Hp, 1440 RPM |
| Coolant Pump (440V, 3 Ph) | 0.15 HP, 440 V | 0.15 HP, 440 V | 0.15 HP, 440 V |
| Job Stroke | 370 mm | 370 mm | 370 mm |
| Wire brush (440V, 3 Ph) | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM | 0.25 Hp, 1440 RPM |
| Bundle Cutting Capacity | 210 x 150 mm | 310 x 150 mm | 410 x 150 mm |
| Hydraulic Tank | 40 Liters | 40 Liters | 50 Liters |
| Coolant Tank | 60 Liters | 60 Liters | 80 Liters |
| Dimensions in mm (L x W x H) | 2250 x 2125 x 1275 | 2425 x 2850 x 1275 | 2425 x 3375 x 1575 |
| Weight | 1960 Kg | 2300 Kg | 2650 Kg |
Accessories
Standard Accessories
- Bi-metal Blade.
Optional Accessories
- Automatic chip conveyor system.
- Hydraulic bundle cutting attachment.
- Job roller stand (1 meter long).
- Chip removing wire brush.
- Variable vice pressure for thin walled job (For Soft Material).
- Servo job feeding system for accurate cutting length, set by touch screen.
