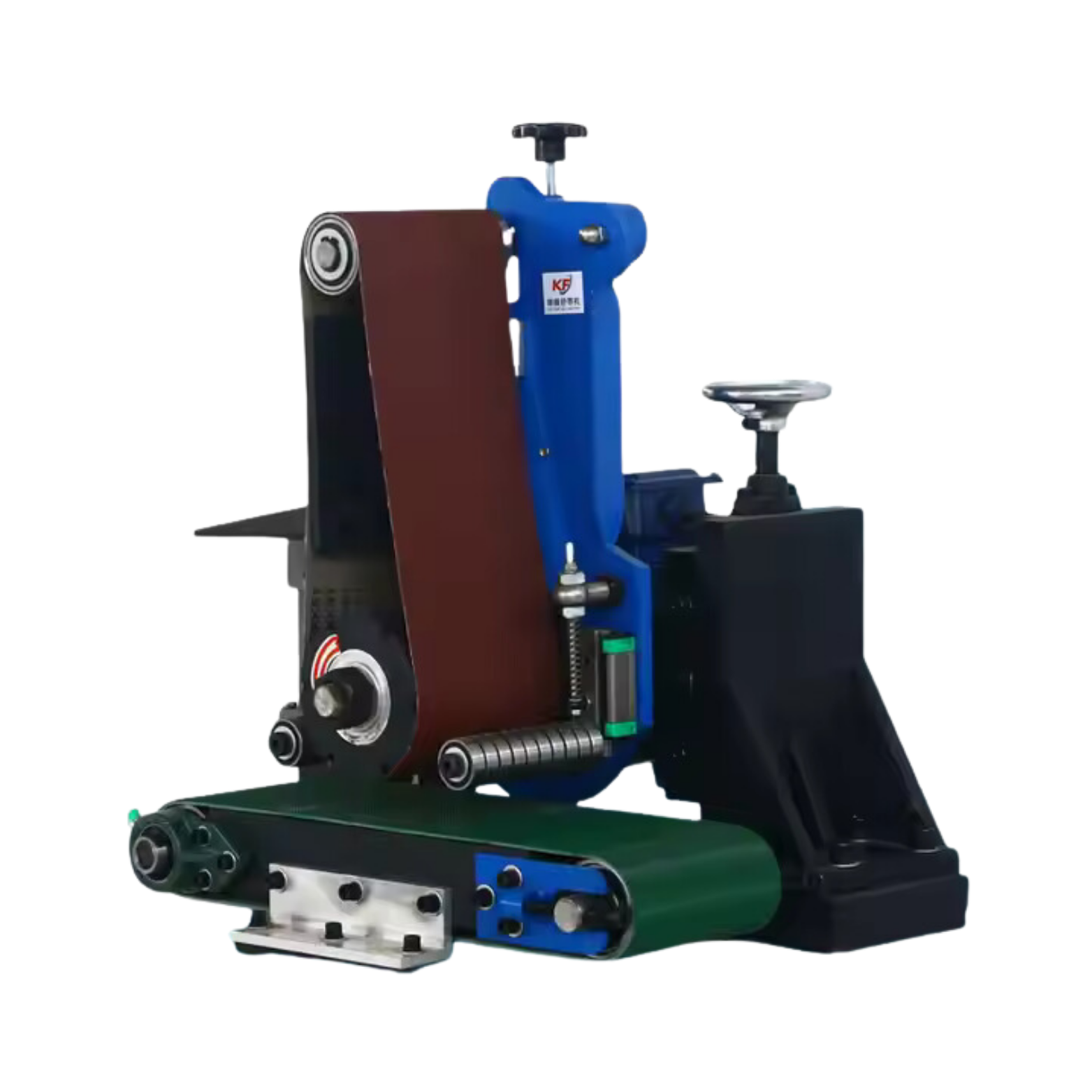

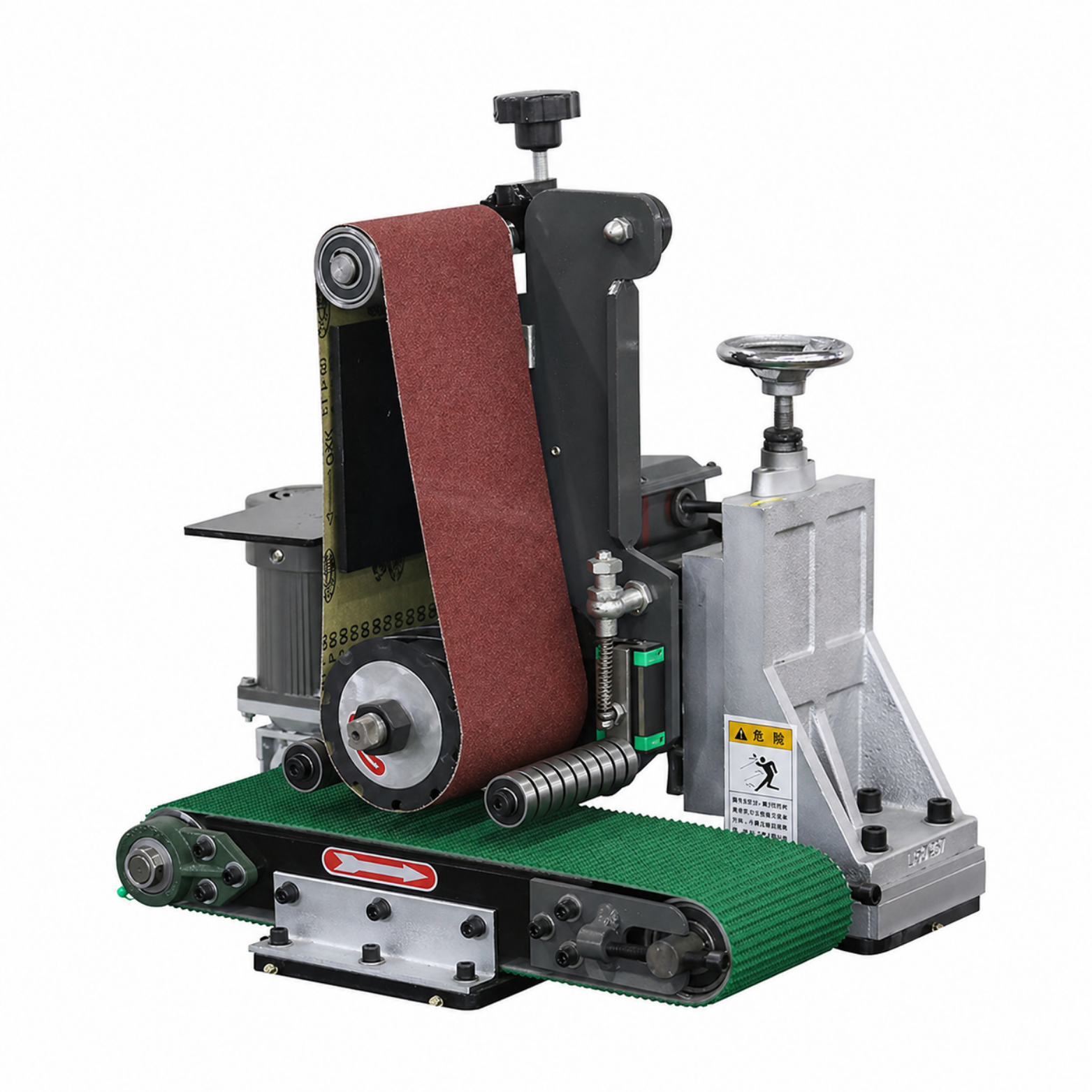

Flat Polishing Machine
A polishing machine used to achieve smooth, uniform finishes on flat surfaces, enhancing surface quality and consistency.
- Surface Polishing: Using different types of polishing tools (such as grinding wheels, felt wheels, cloth wheels, nylon wheels, etc.), various degrees of polishing can be applied to the workpiece, achieving a smooth and aesthetically pleasing finish.
- Surface Treatment: Cleaning metal surfaces before electroplating, removing oxides, rust, and other impurities, ensuring the effectiveness of subsequent electroplating processes.
- Precision Enhancement: Achieving specific flatness, parallelism, and surface finish through precise processing, commonly used for workpieces that require high surface quality.
- Multi-functional Polishing: Depending on the needs, different types of polishing tools can be selected for sanding, mirror polishing, or even brushing.
Specification
|
MODEL |
150-1 |
200-1 |
|
Polishing Thickness |
1 – 80 mm |
1 – 100 mm |
|
Polishing Width |
Max 150 mm |
Max 200 mm |
|
Conveyor Belt Size |
6″ x 42″ |
8″ x 42″ |
|
Sanding Belt Size |
6″ x 36″ |
8″ x 36″ |
|
Conveyor Motor |
120 W / 35 RPM |
120 W / 35 RPM |
|
Main Motor |
3 Hp / 415 V / 2800 RPM |
3 Hp / 415 V / 2800 RPM |
|
Total Weight (Approx) |
110 Kg |
150 Kg |
|
MODEL |
150-2 |
200-2 |
|
Polishing Thickness |
1 – 80mm |
1 – 100 mm |
|
Polishing Width |
Max 150 mm |
Max 200 mm |
|
Conveyor Belt Size |
6″ x 71″ |
8″ x 71″ |
|
Sanding Belt Size |
6″ x 36″ (Each) |
8″ x 36″ (Each) |
|
Conveyor Motor |
150W / 35 RPM |
150W / 35 RPM |
|
Main Motor |
3HP / 415 V / 2800 RPM (Each) |
3HP / 415 V / 2800 RPM (Each) |
|
Total Weight (Approx) |
155 Kg |
235 Kg |
Accessories
Standard Accessories
- Conveyor Drive Motor
- Abrasive Drive Motor
- Dust Shield
- Sanding Belt
