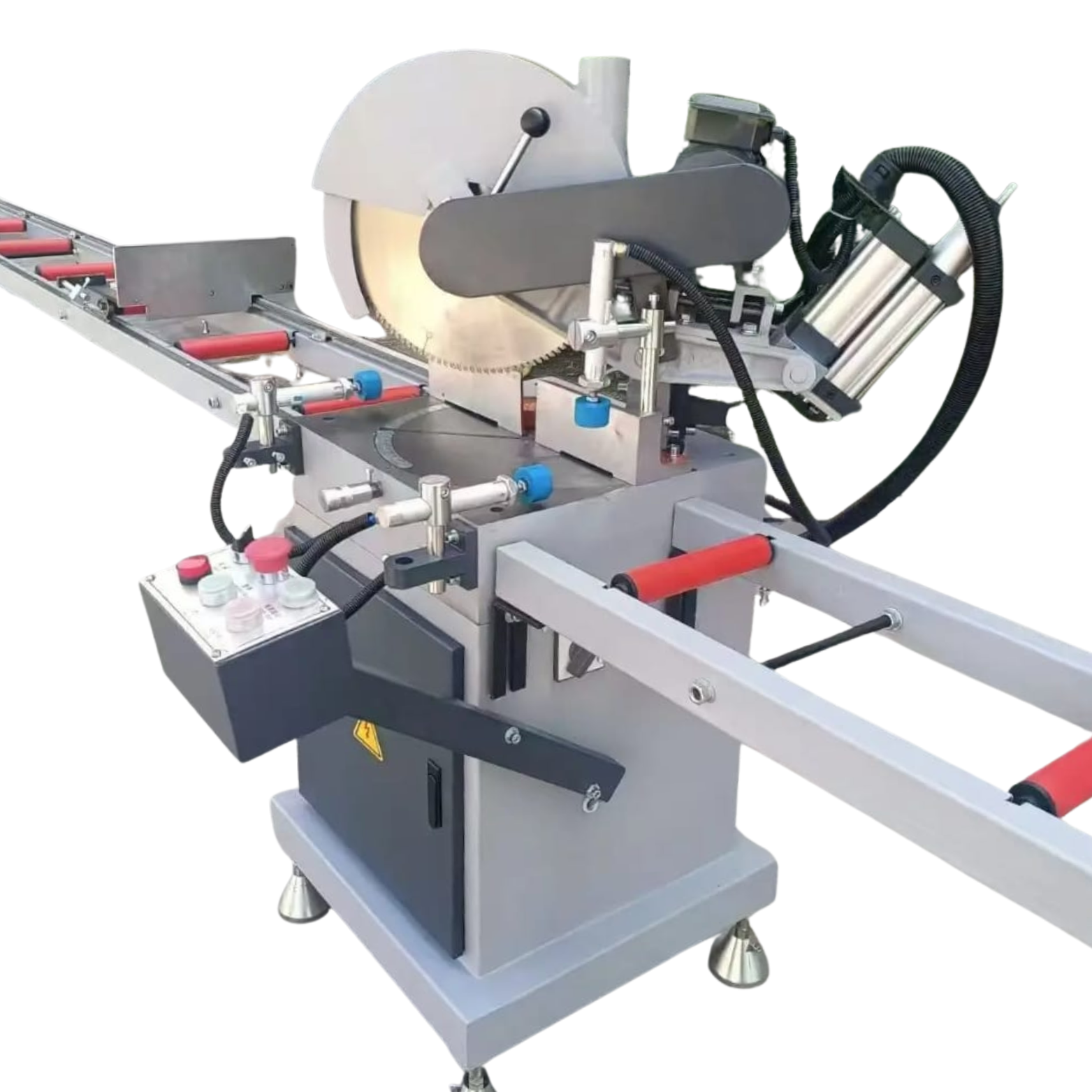

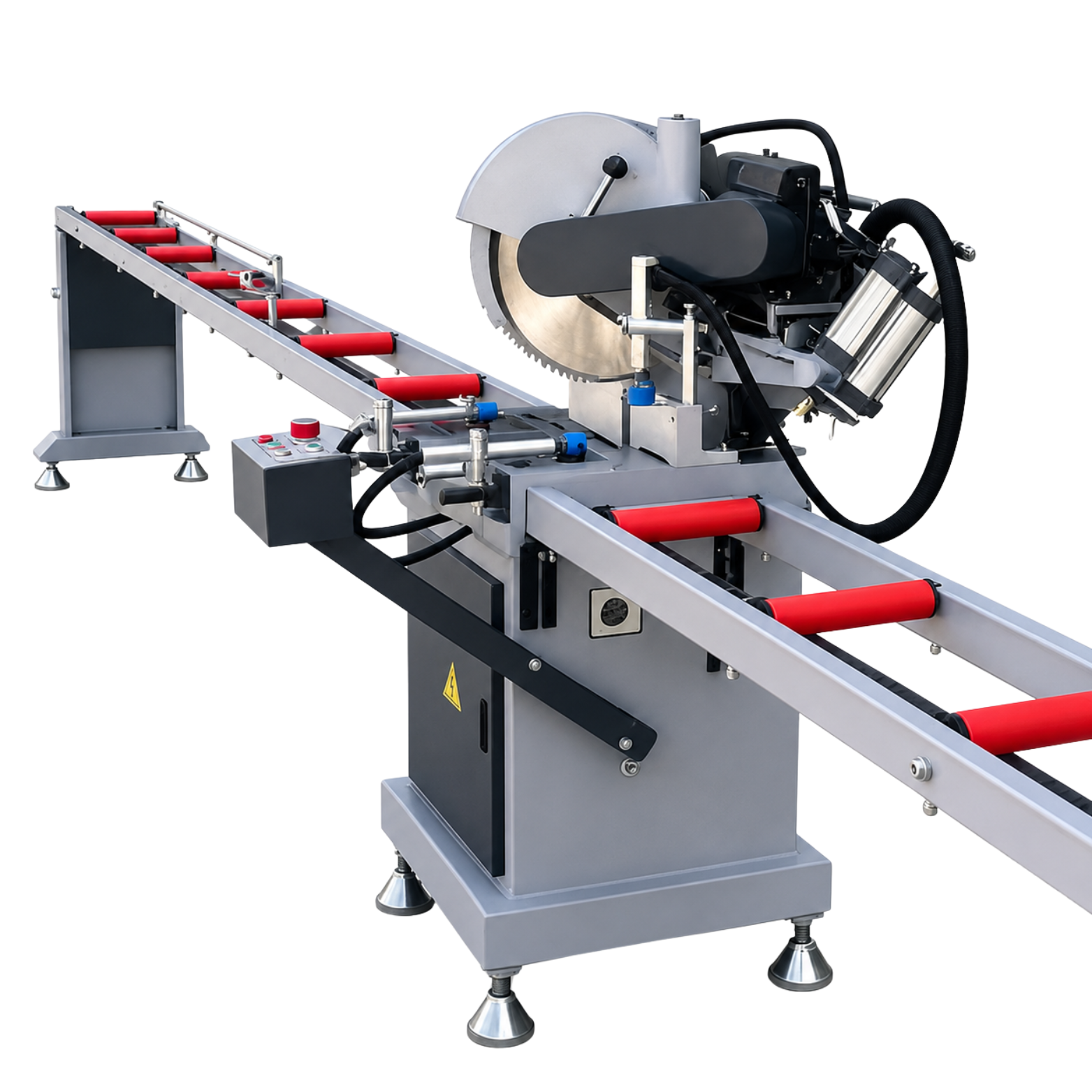

Aluminium cutting machine
The Machine is designed for precise and efficient cutting of aluminium profiles with smooth finishing and high accuracy.
- Single Cutting Head Design.
- Bevel Cutting Capability.
- High Precision Cutting 45 and 90 Degree.
- Pneumatic Clamping System.
- Angle Presets & Easy Adjustment.
Specification
|
MODEL |
ACM-350 |
|
Maximum Cutting Height |
100 mm |
|
Maximum Cutting Width |
100 mm |
|
Saw Blade |
350 mm |
|
Rotational Speed |
2800 r/min |
|
External Dimensions |
1.8 CBM |
|
Power Supply |
380V / 220V |
|
Total Power |
1.1 Kw |
|
Working Pressure |
0.5-0.8 Mpa |
|
Total Weight (Approx) |
260 Kg |
Accessories
Standard Accessories
- 350mm Aluminium cutting blade.
- Side support rack.
