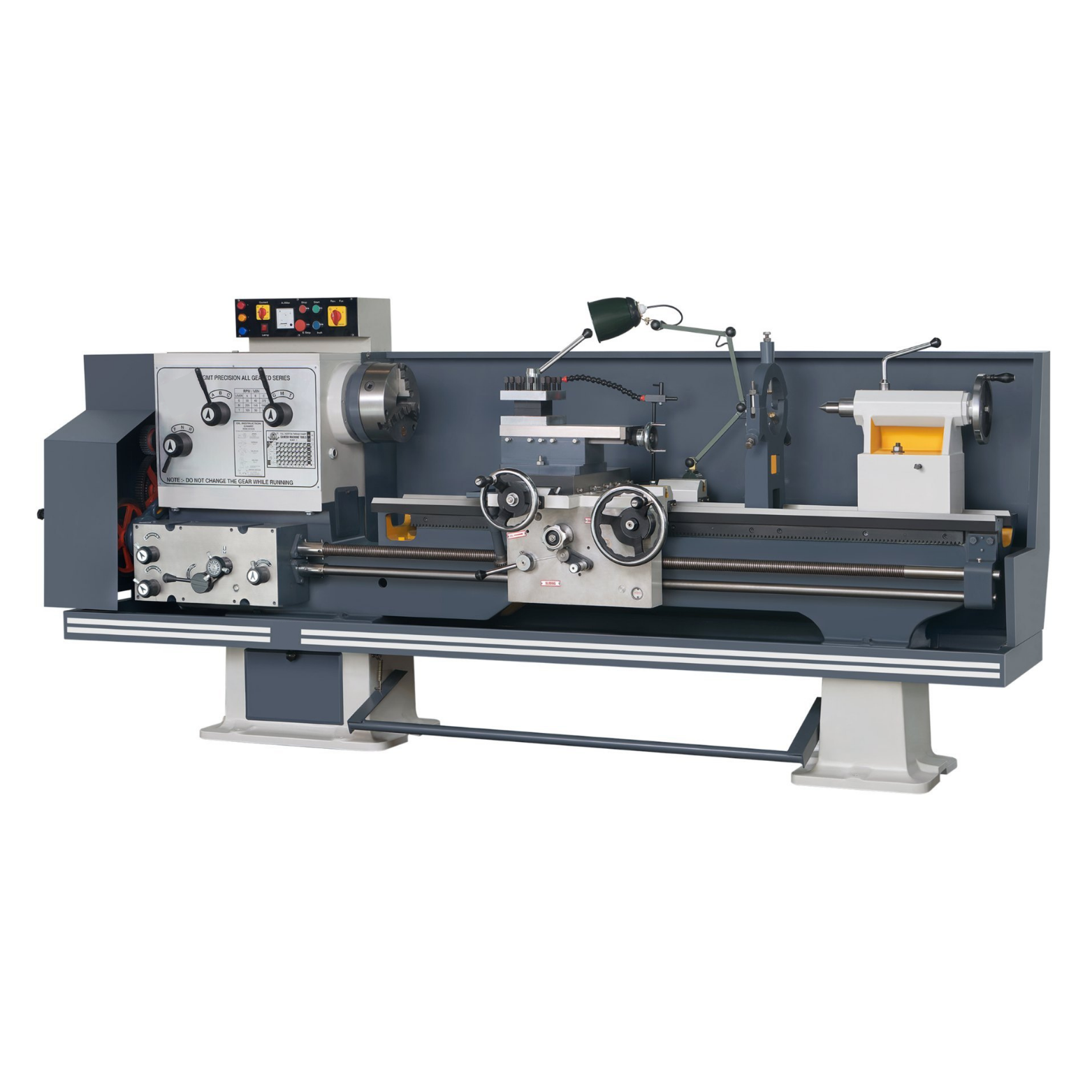

All Gear Heavy Duty Lathe Machine
A robust and powerful lathe engineered for heavy-duty machining applications which uses advanced gear systems.
Specification
| BED |
| Length of Bed | 7′ (2100 mm) | 9′ (2740 mm) | 10′ (3040 mm) | 12′ (3650 mm) | 14′ (4260 mm) | 16′ (4850 mm) | 18′ (5450 mm) | 20′ (6050 mm) | 22′ (6650 mm) | 24′ (7250 mm) | 26′ (7850 mm) |
| Admit Between Centre | 1000 mm | 1600 mm | 1900 mm | 2500 mm | 3100 mm | 3700 mm | 4300 mm | 4900 mm | 5500 mm | 6100 mm | 6700 mm |
| TYPE OF BED | HARDENED BED WAYS |
| Height of centre | 304 mm ( 12″ ) | 355 mm ( 14″ ) | 380 mm ( 15″ ) |
| Swing over bed | 580 mm | 680 mm | 730 mm |
| Swing over cross slide | 390 mm | 490 mm | 540 mm |
| Swing in gap | 890 mm | 990 mm | 1040 mm |
| Width of bed | 375 mm | 375 mm | 375 mm |
| Length of gap in front of face plate | 200 mm | 200 mm | 200 mm |
| MAIN SPINDLE |
| No. Of spindle speed | 12 |
| Spindle speed range | 30 to 1060 RPM * |
| Taper in spindle | MT-6 |
| Spindle bore | 79 mm / 104 mm |
| Spindle nose | A2-8 |
| THREADS |
| Lead screw diameter / pitch | 38 mm / 4 TPI |
| Nos. Of threads/range (without norton gear box) | METRIC : 24 / 0.5 mm to15 mm PITCH INCH : 44 / 2 to 60 TPI |
| No. of feeds | 40 |
| Range of longitudinal feeds | 0.066 – 2 mm |
| Range of transverse feeds | 0.0165 – 0.5 mm |
| TAIL STOCK |
| Tail stock spindle diameter | 60.3 mm |
| Taper in tail stock quill | MT – 4 |
| TRAVEL AND TOOLS |
| Cross slide travel | 325 mm |
| Compound slide travel | 190 mm |
| Tail stock sleeve travel | 170 mm |
| Tool post square | 145 mm |
| Tool shank size | 25 mm |
| Motor | 5 HP |
Accessories
Standard Accessories
- Chuck Back Plate.
- Centre adapter.
- Dead Centre – 2 Nos.
- Tool post spanner.
- Motor pulley.
- Thread dial indicator.
- Change gear set.
- Chip tray.
- Tool post spanner.
- Norton gear box with double shaft.
Optional Accessories
- Independent chuck.
- Self centering chuck.
- Chuck back plate extra.
- Steady rest.
- Follow rest.
- Face plate.
- Carrier plate.
- Taper turning attachment.
- Coolant pump with tank and fittings.
- Electrical third shaft.
- Rear tool post.
- Electricals (motor, wiring, switch, v- belts and fittings).
- Splash guard.
- Panel board.
- Foundation round plate with levelling bolts.
- Quick change tool post.
- Key way attachment.
- Paddle stop.
