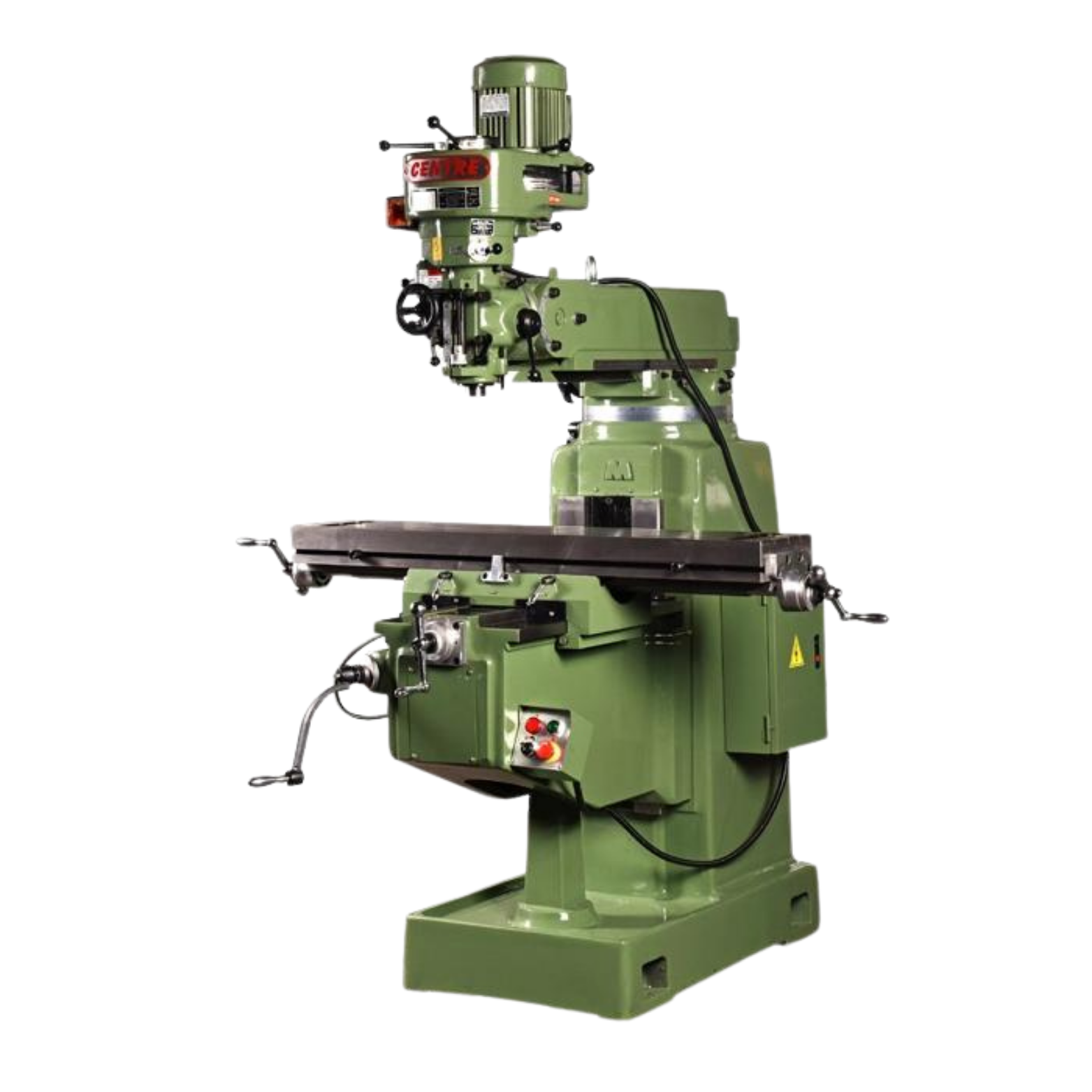

Turret Milling Machine
This Machine features a rotating turret that allows the head to swivel and the table moves along X & Y axis.
Specification
| MODEL | M4 | M5 |
| Milling Head | Round | Round |
| Table size | 1270 x 254 mm | 1370 x 254 mm |
| T-Slot (No/Size/Distance) | 3 / 16mm / 65 mm | 3 / 16mm / 65 mm |
| Max. Load on Table | 300 Kg | 300 Kg |
| X – Axis Travel | 800 mm | 900 mm |
| Y – Axis Cross Travel | 405 mm | 400 mm |
| Z – Axis Vertical Travel | 390 mm | 400 mm |
| Y – Axis Guide Way | ||
| Z – Axis Guide Way | ||
| Ram Travel | 510 mm | 510 mm |
| Spindle Taper | ISO30 / ISO 40 | ISO30 / ISO 40 |
| Spindle Quill Travel | 127 mm | 127 mm |
| Spindle Feed | 0.04, 0.08, 0.15 | 0.04, 0.08, 0.15 |
| No. of Spindle Speed | 16 | 16 |
| Range of Spindle Speed | 66 – 4540 Rpm | 66 – 4540 Rpm |
| Spindle Nose to Table | 475 mm | 475 mm |
| Spindle Centre to Column | 590 mm | 590 mm |
| Head Tilt |
+/- 90° Left & Right +/- 45° Front & Back |
+/- 90° Left & Right +/- 45° Front & Back |
| Motor Power | 3 Hp | 3 Hp |
| Weight | 1380 Kg | 1400 Kg |
Accessories
Standard Accessories
- Electric motor
- 2-AXIS DRO
- Mechanical Milling Vice
- 52 Pcs Clamping Kit
- Collet Set 8pcs
- Chip tray
- Coolant system
- Electric Control System
- Lubrication System
- Tool Box
- Machine Lamp
Optional Accessories
- Power Feed
