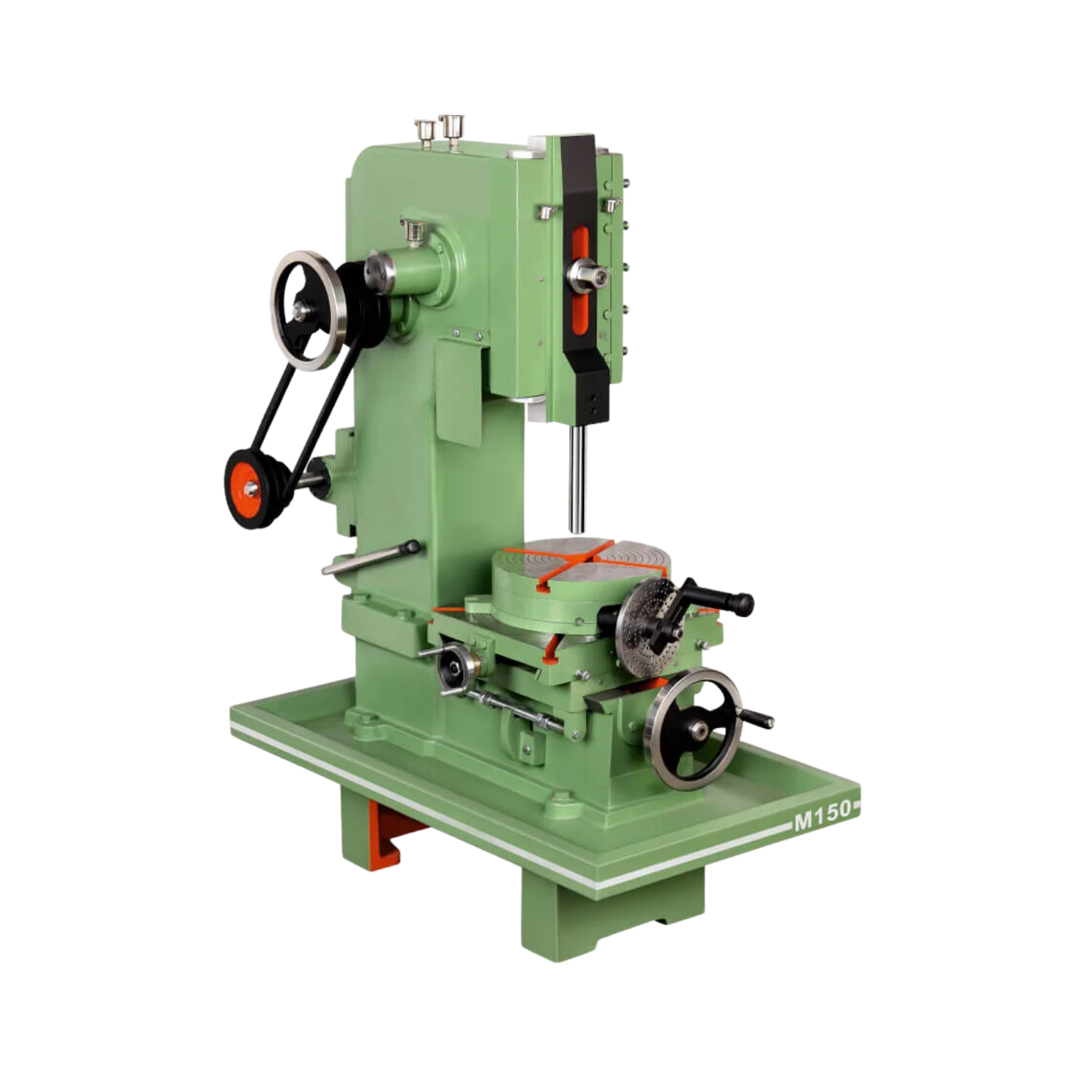

Slotting Machine
This is a vertical machine tool used to keyways into metal. It operates with a vertical ram that moves up and down, making internal cuts.
Specification
| MODEL | M305 | M250 | M150 |
| Adjustable Stroke | 10 to 305 mm | 10 to 250 mm | 10 to 150 mm |
| Longitudinal Movement | 330 mm | 230 mm | 200 mm |
| Cross Movement | 150 mm | 230 mm | 110 mm |
| Speed Adjustment | 3 Speed | 3 Speed | 3 Speed |
| Ram Adjustment | 305 mm | 250 mm | 150 mm |
| Electric Motor | 2 Hp | 1.5 Hp | 1 Hp |
| Weight (Approx) | 500 Kg | 410 Kg | 310 Kg |
| Height | 58″ | 53″ | 45″ |
| Width | 24″ | 21″ | 20″ |
| Length | 55″ | 46″ | 39″ |
Accessories
Standard Accessories
- Boring Bar
- Motor Pulley
- Counter V-Belt
- Electric Motor
- V-Belt
- R/F Switch
Optional Accessories
- Rotary Table
- True Chuck
