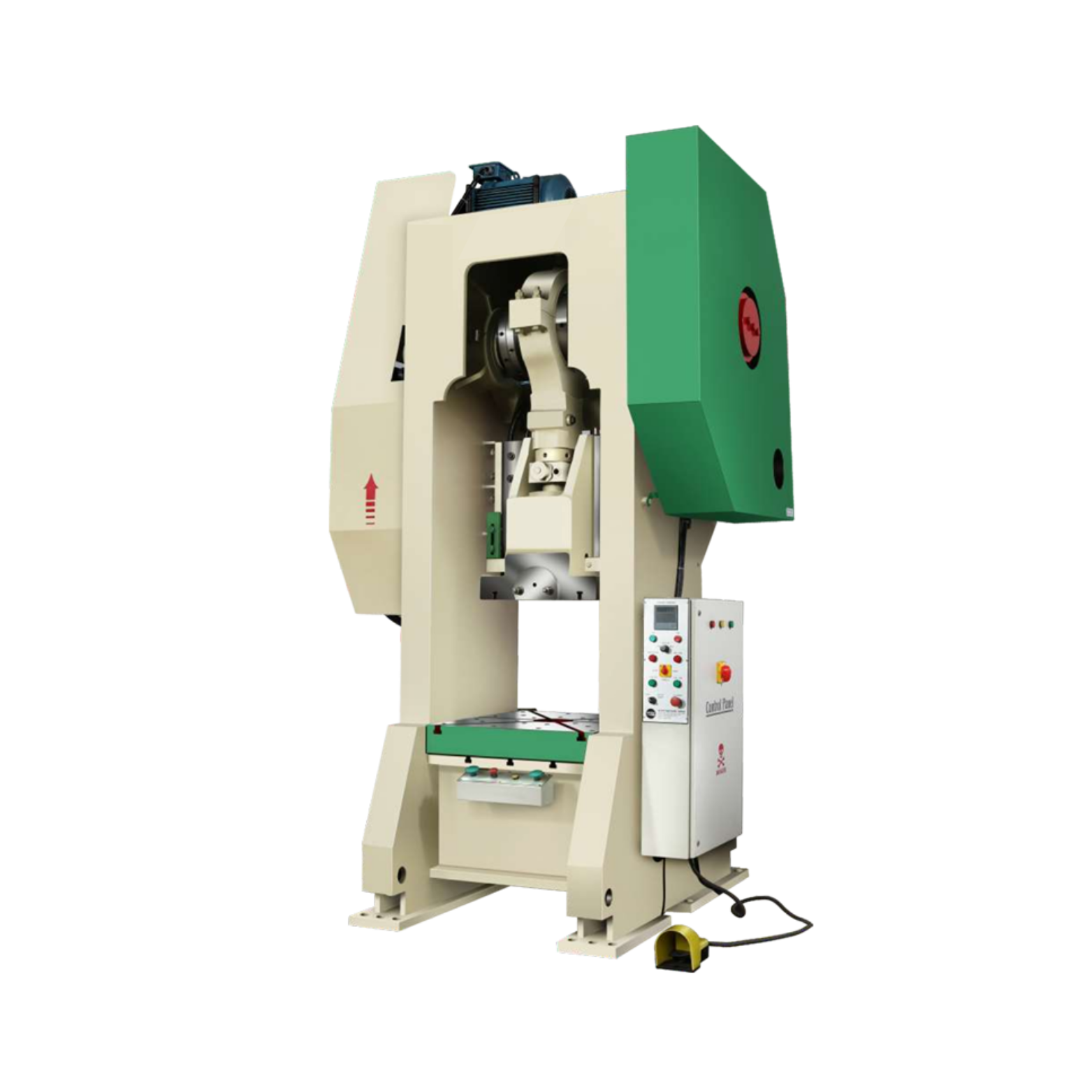

Pillar Type Power Press Machine
A pillar type power press is a heavy-duty mechanical press with a robust, pillar-supported frame that offers enhanced stability and strength.
- Robust Construction: Built with a strong pillar frame for high rigidity and stability during heavy-duty operations.
- Precision Operation: Offers accurate and consistent performance in processes like punching, blanking, and stamping.
-
Adjustable Stroke Length: Allows flexibility for various applications by adjusting the ram stroke.
- Heavy Flywheel: Ensures smooth and powerful operation by maintaining momentum during press cycles.
Specification
| MODEL | TON CAP | STROKE ADJ. | HOLE IN RAM | BED TO RAM | BED SIZE L/R | BED SIZE F/R | HOLE IN BED | SPM U.G | SPM C.G | FLOOR TO TOP TO BED | MOTOR H.P/K.W. |
| VPPP-1 | 30 | 75 | 38 | 280 | 508 | 559 | 95 | *** | 50 | 880 | 3/2.2 |
| VPPP-2 | 40 | 75 | 38 | 280 | 533 | 584 | 110 | *** | 50 | 890 | 5/3.7 |
| VPPP-3 | 50 | 88 | 51 | 280 | 559 | 610 | 120 | *** | 45 | 940 | 5/3.7 |
| VPPP-4 | 60 | 88 | 51 | 330 | 584 | 635 | 127 | *** | 40 | 940 | 7.5/5.6 |
| VPPP-5 | 80 | 102 | 51 | 330 | 610 | 660 | 140 | *** | 40 | 940 | 7.5/5.6 |
| VPPP-6 | 100 | 114 | 63 | 381 | 660 | 710 | 152 | *** | 35 | 940 | 10/7.7 |
| VPPP-7 | 150 | 127 | 63 | 410 | 710 | 762 | 178 | *** | 35 | 940 | 15/11.2 |
| VPPP-8 | 200 | 127 | 63 | 432 | 762 | 813 | 190 | *** | 30 | *** | 20/15 |
| VPPP-9 | 250 | 152 | 63 | 485 | 813 | 863 | 203 | *** | 30 | *** | 25/18.7 |
| VPPP-10 | 300 | 152 | 63 | 508 | 863 | 914 | 203 | *** | 25 | *** | 30/22.5 |
Accessories
Standard Accessories
- Motor stand
- Motor pulley
- Main gear cover
- Fly wheel cover
- Stud drive for screw
Optional Accessories
- Electric Motor
- V-Belt
- R/F Switch
