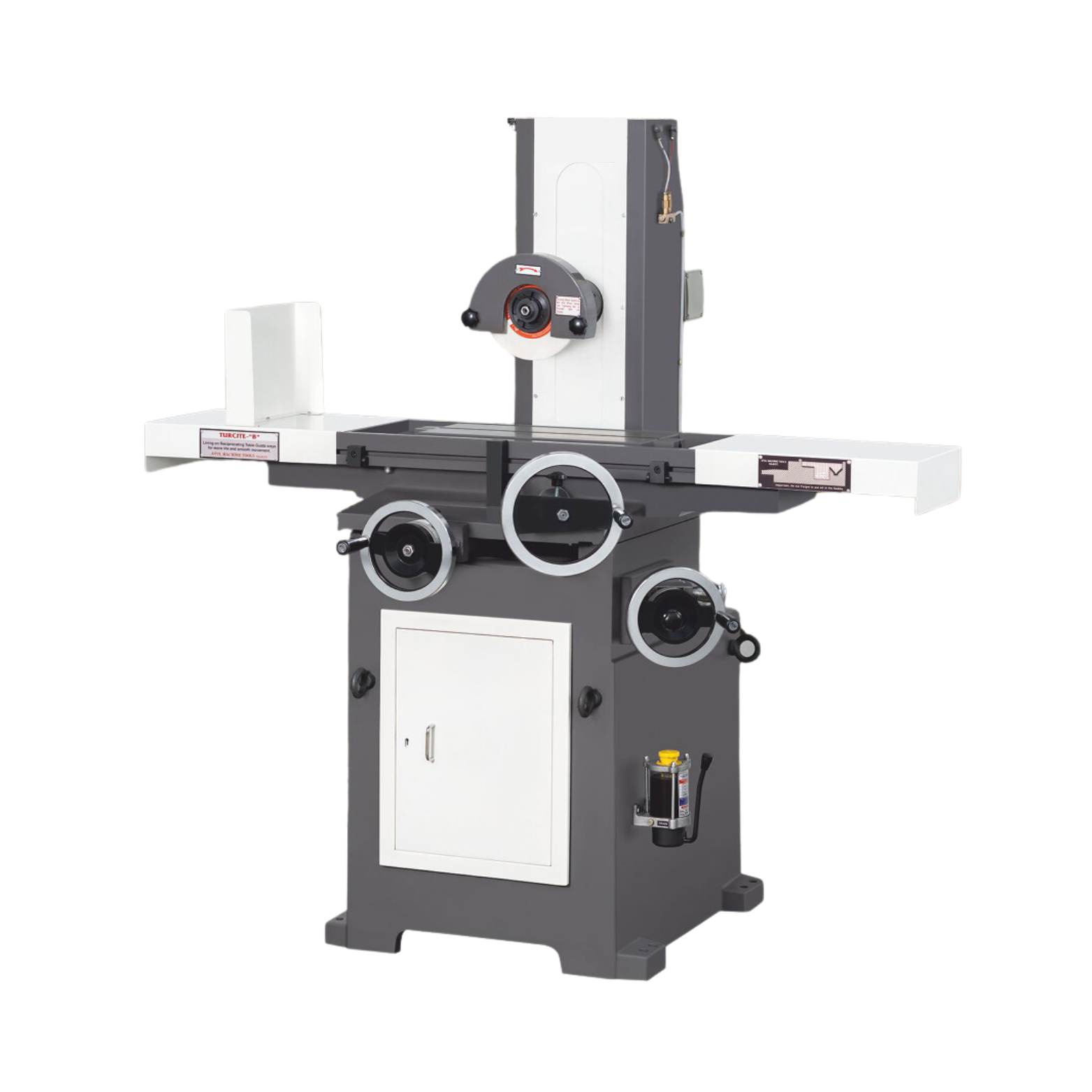

Manual Surface Grinder Machine
This machine is a precision grinding machine used to achieve a smooth and flat surface finish on metal workpieces.
- Body is Heavy Duty High Grade Cast Iron
- TURCITE-B table
- Wheel head spindle hardened
Specification
| MODEL | ASM-4522 | ASM-6030 |
| Max Table Size | 450 x 225 mm | 600 x 300 mm |
| Permanent Magnetic Chuck | 450 x 200 mm | 600 X 250 mm |
| Max Longitudinal Travel | 500 mm | 650 mm |
| Max Cross Traverse | 225 mm | 305 mm |
| Max Spindle Centre height above the table | 425 mm | 375 mm |
| Cross feed Least Count | 0.5 mm | 0.5 mm |
| Least count of vertical feed hand wheel | 0.01 mm | 0.01 mm |
| Least count of micro feed | 0.002 mm | 0.002 mm |
| Size of grinding wheel (Dia x Width x Bore) | 200 x 13 x 31.75mm | 200 x 19 x 31.75mm |
| Spindle Motor | 1 HP | 2 HP |
| Speed of Grinding Spindle | 2800 Rpm | 2800 Rpm |
| Total Power | 1 Hp / 0.75kw | 2 Hp / 1.5kw |
| Net Weight (Approx.) | 850 kg | 1050 kg |
Accessories
Standard Accessories
- Balancing Stand & Mandrel
- Diamond Dresser with Holder
- Wheel Puller
- Lubrication Pump
- One Grinding wheel with Flange
- Electric Motor with Starter
- Tool Kit
- Magnet Chuck Lock Piece
Optional Accessories
- Permanent Magnetic ChuckÂ
- Coolant System
- Machine Lamp (230 V Ac)
- Wheel Flange Unit
- LM Guideways
- Dust Collector
- Electric Magnetic Chuck
- Coolant System with Magnetic Separator and Paper Band Filter
- Radius & Angular Wheel Truing Attachment
