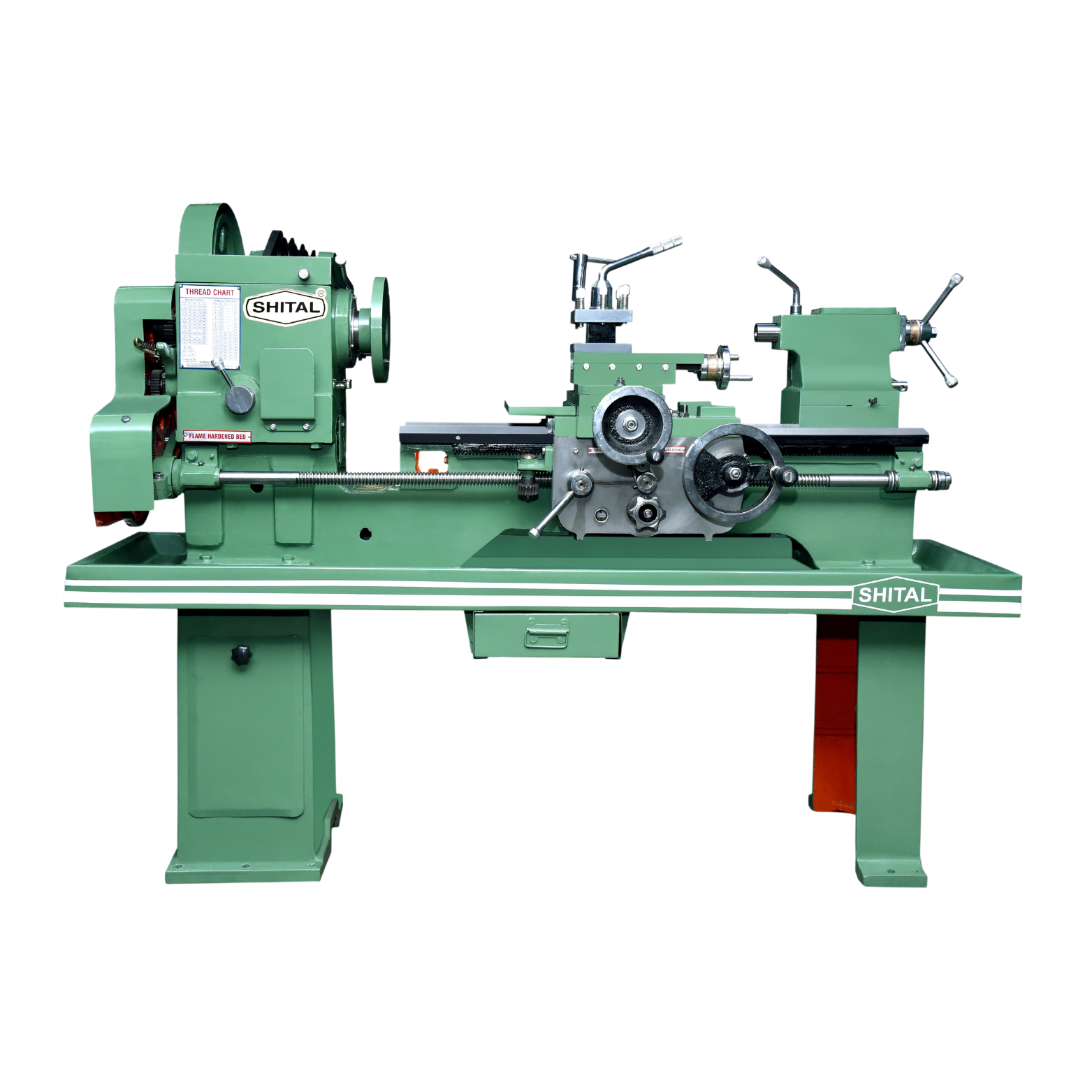

Light Duty Lathe
A Light Duty Lathe is easy-to-operate lathe designed for precision turning, facing and threading of smaller workpieces.
- Latest design Head Stock
- High Tensile Casting
- Hardened Bed
- Hardened Spindle
- SKF Bearing
- All Nut Gun Metal
- Tail Stock Spindle Harden
Specification
| MODEL | SL-LD1 | SL-LD2 |
| Bed Width | 238 mm | 238 mm |
| Bed Type | 2/2 V/Flat | 2/2 V/Flat |
| Gap Length | 120 mm | 120 mm |
| Height of Centre | 165 mm | 185 mm |
| Swing Over Bed | 320 mm | 345 mm |
| Swing Over Cross Slide | 180 mm | 205 mm |
| Swing Over Gap | 510 mm | 605 mm |
| Cross Slide Travel | 220 mm | 220 mm |
| Compound Slide Travel | 110 mm | 110 mm |
| Spindle Sleeve Nose | MT-3 | MT-3 |
| Spindle Bore | 38 mm | 38 mm |
| Spindle Speed | 8 | 8 |
| Spindle Range | 40-800 Rpm | 40-800 Rpm |
| Spindle Motor Power | 1 Hp | 1 Hp |
| Quill Dia | 38 mm | 38 mm |
| Quill Stroke | 120 mm | 120 mm |
| Taper in Quill | MT-3 | MT-3 |
| Weight (Approx) | 460 Kg | 500 Kg |
Accessories
Standard Accessories
- Change Gear Set
- Chuck Plate
- Centre Adaptor
- Dead Centre
- Tool Post Key
- Motor Pulley
Optional Accessories
- 1Hp-3Ph, 1440 Rpm Motor
- V-Belt & R/F Switch
- Norton Gear Box
- True chuck
- Dog chuck
- Steady rest
- Follow Rest
- Face Plate
- Taper Turning Attachment
- Rear Tool Post
- Coolant Assembly
