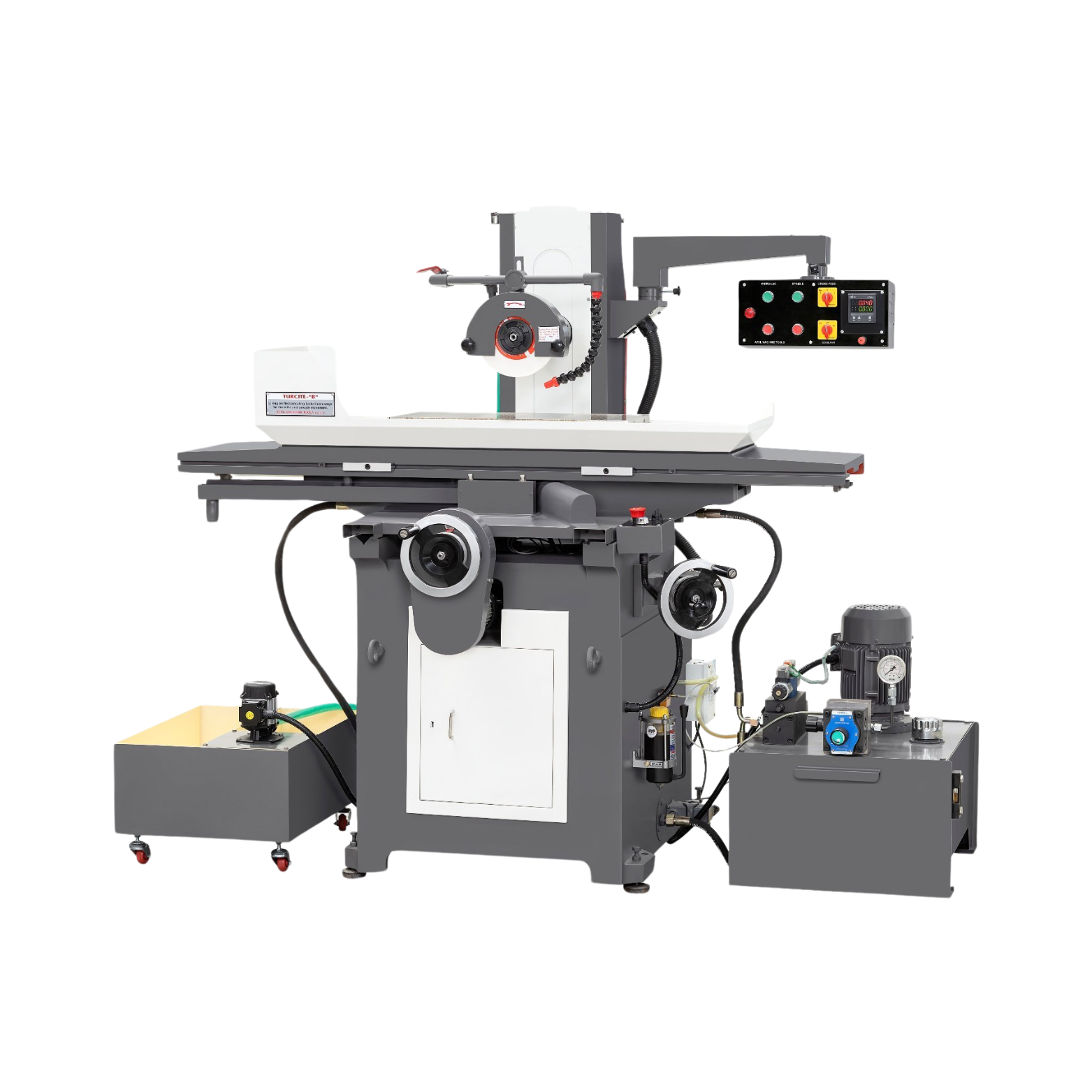

Hydraulic Surface Grinder Machine
A hydraulic surface grinding machine is used to produce smooth, flat surfaces on metal or non-metallic workpieces.
- Body is Heavy Duty High Grade Cast Iron
- TURCITE-B table
- Wheel head spindle hardened
- Separate Hydraulic System is duly fitted
Specification
| MODEL | ASH-4522 | ASH-6030 |
| Max Table Size | 450 x 225 mm | 600 x 300 mm |
| Permanent Magnetic Chuck | 450 x 200 mm | 600 X 250 mm |
| Max Longitudinal Travel | 500 mm | 650 mm |
| Max Cross Traverse | 225 mm | 305 mm |
| Max Spindle center height above the table | 425 mm | 375 mm |
| Max Table Speed | 18 m/min | 18 m/min |
| Power Cross Traverse | 1800 mm/min | 1800 mm/min |
| Auto Cross feed Table each reversal | 0.5-5.0 mm | 0.5-5.0 mm |
| Least count of vertical feed hand wheel | 0.01 mm | 0.01 mm |
| Least count of micro feed | 0.002 mm | 0.002 mm |
| Size of grinding wheel (Dia x Width x Bore) | 200 x 13 x 31.75 mm | 200 x 19 x 31.75 mm |
| Spindle Motor | 1 Hp | 2 Hp |
| Speed of Grinding Spindle | 2800 Rpm | 2800 Rpm |
| Working Pressure | 10 kg/cm2 | 10 kg/cm2 |
| Hydraulic Motor | 1.5 Hp | 1.5 Hp |
| Tank Capacity | 40 Litres | 40 Litres |
| Total Power | 4 Hp / 3 Kw | 5 Hp / 3.75 Kw |
| Net Weight (Approx) | 925 Kg | 1250 Kg |
Accessories
Standard Accessories
- Balancing Stand & Mandrel
- Diamond Dresser with Holder
- Wheel Puller
- Lubrication Pump
- One Grinding wheel with Flange
- Electric Motor with Starter
- Tool Kit
- Magnet Chuck Lock Piece
- Electric Control Panel
- Permanent Magnetic Chuck
- Hydraulic System
- Coolant System
Optional Accessories
- DRO
- Dust Collector
- Electric Magnetic Chuck
- Machine Lamp (230 V Ac)
- Coolant System with Magnetic Separator & Paper Band Filter
- Radius & Angular Wheel Truing Attachment
