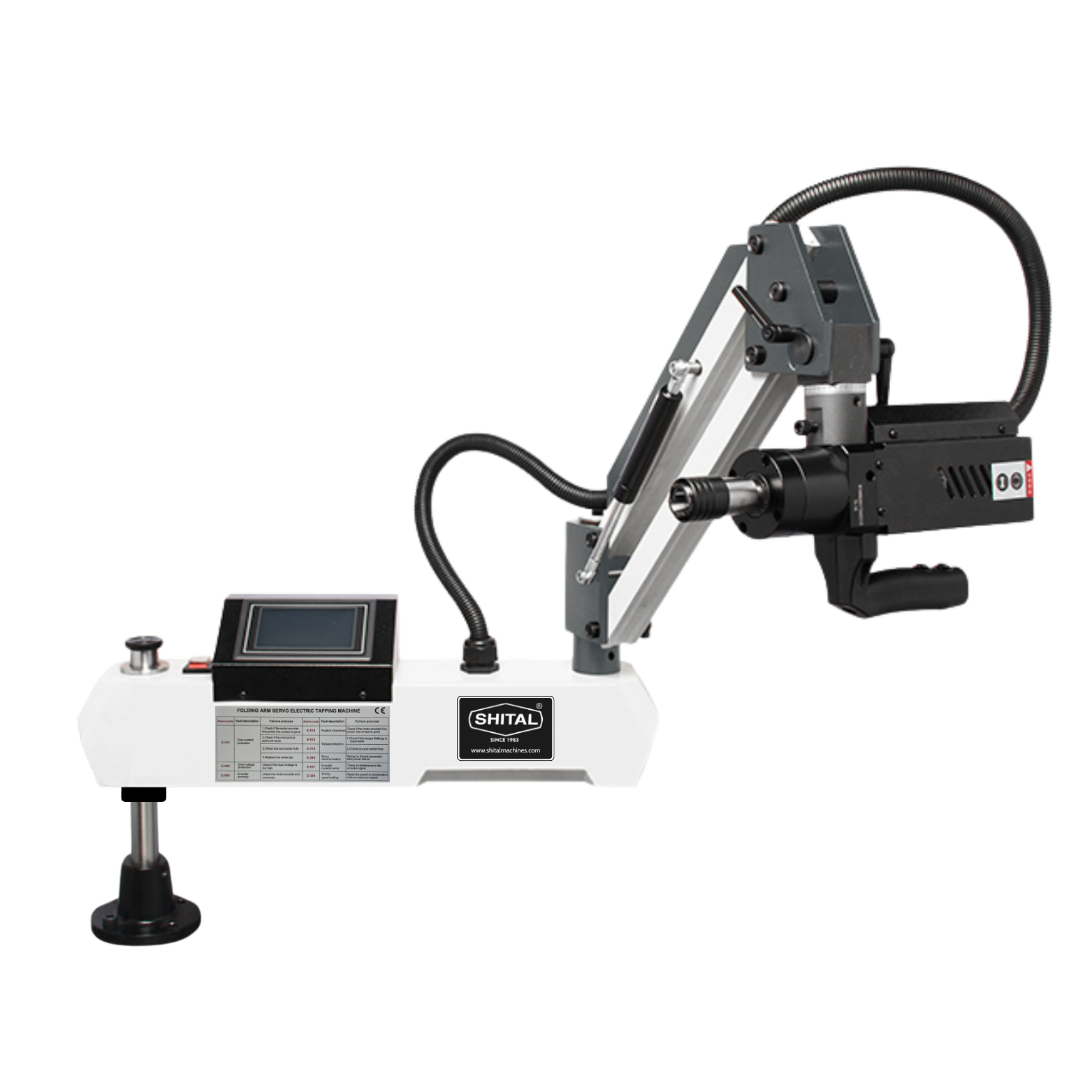

Flexible Arm Tapping

Flexible Arm Tapping is a versatile and efficient machine designed for precise thread tapping operations in various materials.

  • The machine adopts servo drive control, with intelligent torque protection.
  • The high definition screen is simple and flexible.
  • Stepless speed change for Manual, Automatic and Vibration mode.
  • Automatic mode can effectively control the depth of tapping.
  • With Universal movement of head, tapping can be done efficiently in any direction.

Specification

MODEL DS 16 DS 30 DS 36
Tapping Range M3-M16 M6-M30 M6-M36
Power 220V / 600W 220V / 1200W 220V / 1200W
Maximum Working Radius 1035 mm 1188 mm 1188 mm
Speed 0-312 RPM 0-200 RPM 0-156 RPM
Weight 32 Kg 48 Kg 52 Kg
COLLET’S INCLUDED:
DS 16: M3, M4, M5, M6-8, M10, M12, M14, M16
DS 30: M6-8, M10, M12, M14, M16, M18-20, M22, M24, M27-30
DS 36: M6-8, M10, M12, M14, M16, M18-20, M22, M24, M27-30, M33, M36

Accessories

Standard Accessories
  • Tool Box
  • MM ISO Collets
  • Wrench
  • Power Wire
Optional Accessories
  • Box Table 800 x 500 x 725 mm
  • Box Table 900 x 600 x 725 mm
  • Inches ISO Collets
  • Magnetic Base (300 Kg, 600 Kg)
