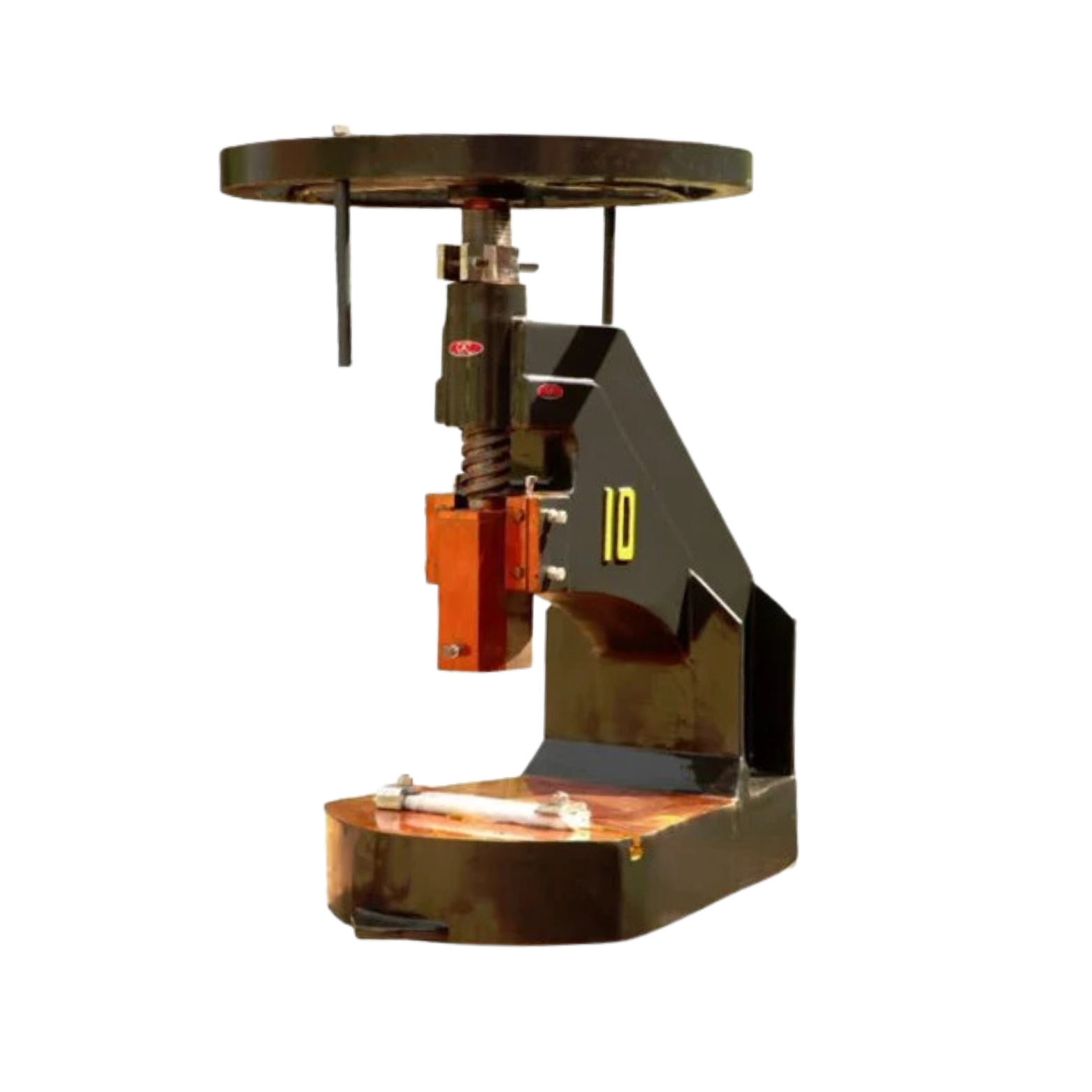

Deep Throat Hand Press
A deep throat hand press is a manually operated machine designed for tasks like punching and forming.
Specification
| SIZE | 4 NO | 6 NO | 8 NO | 10 NO |
| Centre to Back | 9″ | 12″ | 15″ | 18″ |
| Base to Guide | 7″ 1/4″ | 10″ | 11″ 1/2″ | 14″ |
| Diameter of Screw | 2″ 3/8″ | 2″ 3/8″ | 3″ | 3″ 1/2″ |
| Diameter of Wheel | 26″ | 30″ | 34″ | 36″ |
| Hole in Base | 2″ 1/2″ | 3″ | 3″ 3/4″ | 4″ 1/4″ |
| Weight (Approx) | 225 Kg | 325 Kg | 450 Kg | 600 Kg |
Accessories
Standard Accessories
- Wheel
- Clamps
