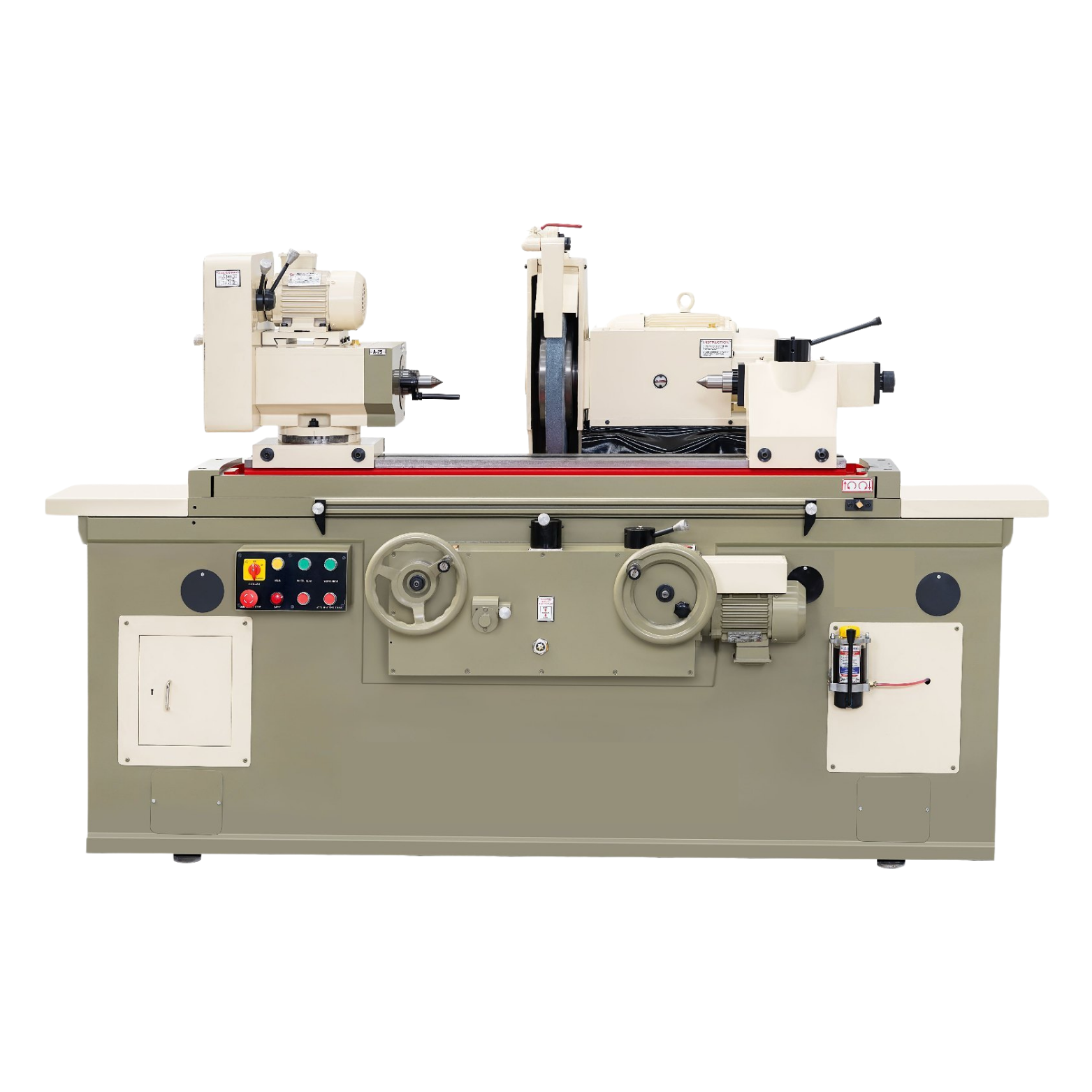

Cylindrical Grinding Machine
A cylindrical grinding machine is a precision tool used to grind the outer surface of cylindrical workpieces.
- Body is Heavy Duty High Grade Cast Iron
- TURCITE-B table
- Wheel head spindle hardened
Specification
| MODEL | ACM-450 | ACM-600 | ACM-800 | ACM-1000 | ACM-1250 | ACM-1500 |
| Max Grinding Length | 450 mm | 600 mm | 800 mm | 1000 mm | 1250 mm | 1500 mm |
| Max Centre Height | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
| Swivel Angle | 45 | 45 | 45 | 45 | 45 | 45 |
| Centre | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 |
| Spindle Speed | 3 | 3 | 3 | 3 | 3 | 3 |
| Wheel Size | 508 x 50 x 203 mm | 508 x 50 x 203 mm | 508 x 50 x 203 mm | 508 x 50 x 203 mm | 508 x 50 x 203 mm | 508 x 50 x 203 mm |
| Wheel Speed | 1200 Rpm | 1200 Rpm | 1200 Rpm | 1200 Rpm | 1200 Rpm | 1200 Rpm |
| Movement of Wheel Head | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Table Feed | 6 | 6 | 6 | 6 | 6 | 6 |
| Max Table Swivel | -2 + 8 | -2 + 8 | -2 + 8 | -2 + 6 | -2 + 6 | -2 + 6 |
| Wheel Motor | 3 Hp | 3 Hp | 3 Hp | 3 Hp | 3 Hp | 3 Hp |
| Table Feed Motor | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp |
| Work Head Motor | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp |
| Coolant Motor | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp | 0.15 Hp |
| Total Power | 5Hp / 3.75 kw | 5Hp / 3.75 kw | 5Hp / 3.75 kw | 5Hp / 3.75 kw | 5Hp / 3.75 kw | 5Hp / 3.75 kw |
| Net Weight | 1620 kg | 1910 kg | 2105 kg | 2150 kg | 2325 kg | 2760 kg |
Accessories
Standard Accessories
- Balancing Stand & Mandrel
- Diamond Dresser with Holder
- Wheel Puller
- Lubrication Pump
- One Grinding wheel with Flange
- Electric Motor with Starter
- Tool Kit
- Magnet Chuck Lock Piece
Optional Accessories
- Permanent Magnetic Chuck 18″ x 8″
- Permanent Magnetic Chuck 20″ x 10″
- Coolant System
- Machine Lamp (230 V Ac)
- Wheel Flange Unit
- LM Guideways
- Dust Collector
- Electric Magnetic Chuck
- Coolant System with Magnetic Separator and Paper Band Filter
- Radius & Angular Wheel Truing Attachment
