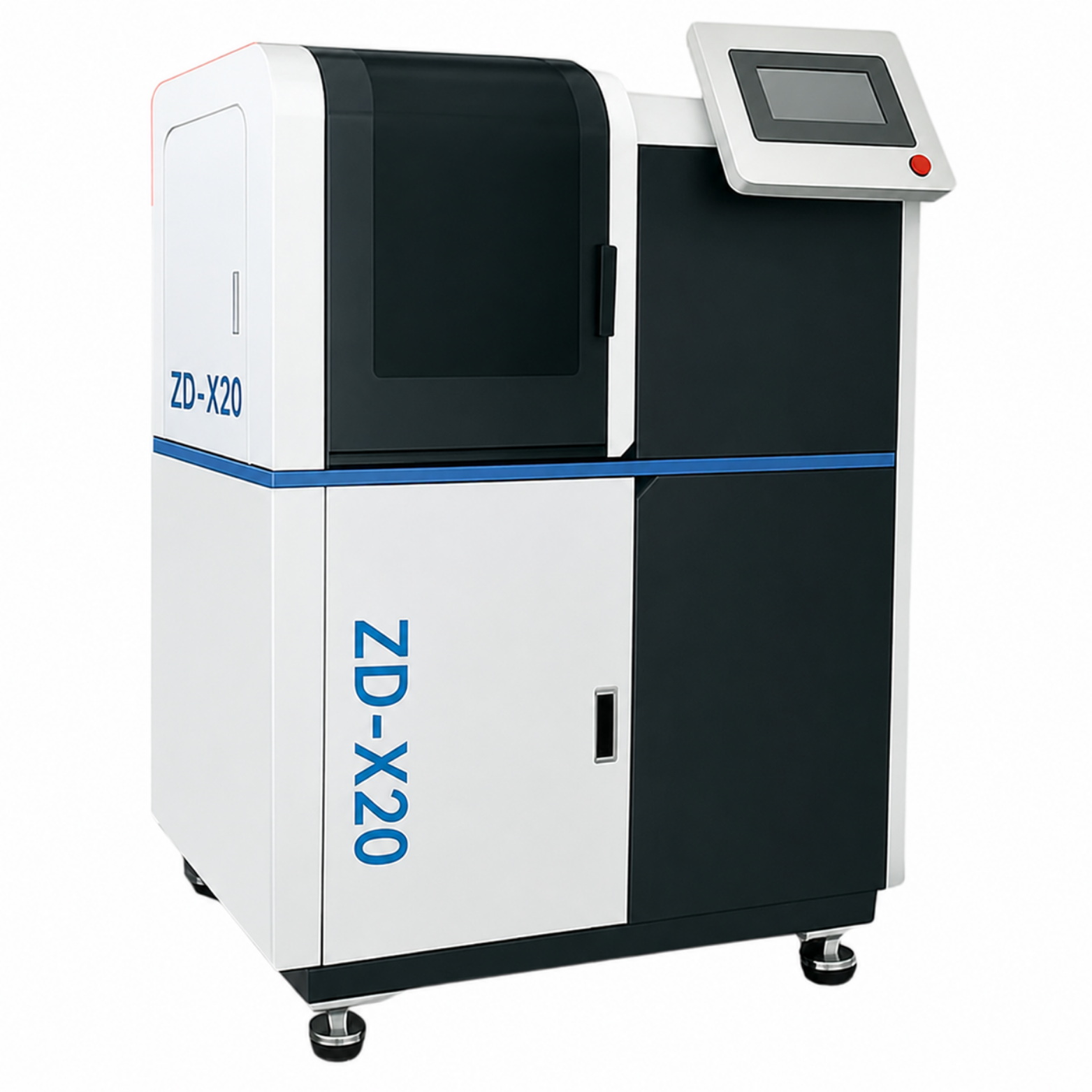

CNC Tool Grinder ZD-X20
This machine is a high-performance, multifunctional device designed for precision, reliability, and efficiency of Bits.
- The ZD-X20 CNC tool cutter grinder is an automatic grinding machine powered by a servo motor.
- It supports flat bottom milling cutters, ball milling cutters, round nose milling cutters, and drill bits.
- Machine has a spindle speed of 3000 Rpm and delivers precision grinding for end mills, ball mills, and drill bits.
- With a robust 1500W power output and a weight of 150KG, it ensures stability and efficiency.
Specification
|
MODEL |
ZD-X20 |
|
Supply Voltage |
220V/50Hz |
|
Rated Power |
1500W |
|
Spindle Motor Speed |
3000 RPM |
|
Grinding Angle |
7° / 24° / 30° |
|
Grinding Wheel Size |
AØ124 x 11
BØ124 x 11
CØ124 x 11
DØ124 x 5.50 |
|
Machine Dimensions |
862 x 788 x 1435 mm |
|
Machine Weight |
150 Kg |
Accessories
Standard Accessories
- ER-32 MM Collets
- Power Cable
- Spanner
- Coolant Pump
Optional Accessories
- ER-32 MM Collets (Odd Size)
- Servo Stabilizer
- HSS Grinding Wheel
