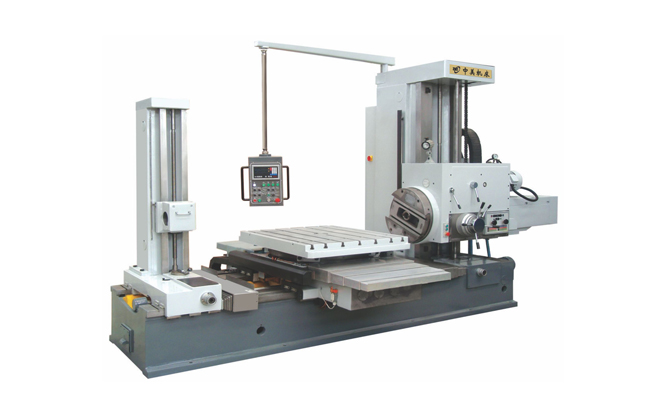

DMTG TPX Series Horizontal Boring Machine
| Particulars / Models | TPX6111 | TPX6111A | TPX6113 |
|---|---|---|---|
| Spindle bore diameter | 110mm | 110mm | 130mm |
| Spindle taper | MT-6 | MT-6 | Metric 80 |
| Max. spindle torque | 1225Nm | 1225Nm | 3136Nm |
| Max. spindle axial thrust | 12250N | 12250N | 31360N |
| Number of spindle speed | 22 | 22 | 24 |
| Range of spindle speeds | 8-1000rpm | 8-1000rpm | 4-800rpm |
| Power of main motor | 7.5kW | 7.5kW | 15kW |
| Max. facing head torque | 1960Nm | 1960Nm | 4900Nm |
| Facing head Diameter | 630mm | 630mm | 750mm |
| Range of facing head speeds | 4-200rpm | 4-200rpm | 2.5-125rpm |
| Number of facing head speeds | 18 | 18 | 18 |
| Table size | 1140x1000mm | 1140x1000mm | 1600x1400mm |
| Max. workload | 2500Kg. | 2500Kg. | 8500Kg. |
| T-slot | 22mm | 22mm | 28mm |
| Number of T-slot | 10 | 10 | 10 |
| X-axis travel | 1000mm | 1350mm | 1600mm |
| Y-axis travel | 1000mm | 1000mm | 1500mm |
| Z-axis travel | 1000mm | 1000mm | 1500mm |
| W-axis travel (Spindle travel) | 600mm | 600mm | 900mm |
| U-axis travel (Facing head spindle travel) | 180mm | 180mm | 250mm |
| B-axis worktable rotary | 360 Deg. | 360 Deg. | 360 Deg. |
| Min Distance between Spindle and Table Surface | 0mm | 0mm | 0mm |
| Rapid travel (X/Y/Z/W) | 2500mm/min. | 2500mm/min. | 2500mm/min. |
| Range of feed per spindle revolution | 0.04-6/0.01-1.88mm/rev. | 0.04-6/0.01-1.88mm/rev. | 0.05-8/0.01-2.0mm/rev. |
| Linear measurement accuracy | 0.005mm | 0.005mm | 0.005mm |
| ; B-axis measurement accuracy | 0.001mm | 0.001mm | 0.001mm |
| Overall dimensions | 4900 x 2554 x 2850mm | 4910 x2990 x2850mm | 6995 x3730 x3535mm |
| Machine weight | 13300Kg. | 14800Kg. | 24500Kg. |
